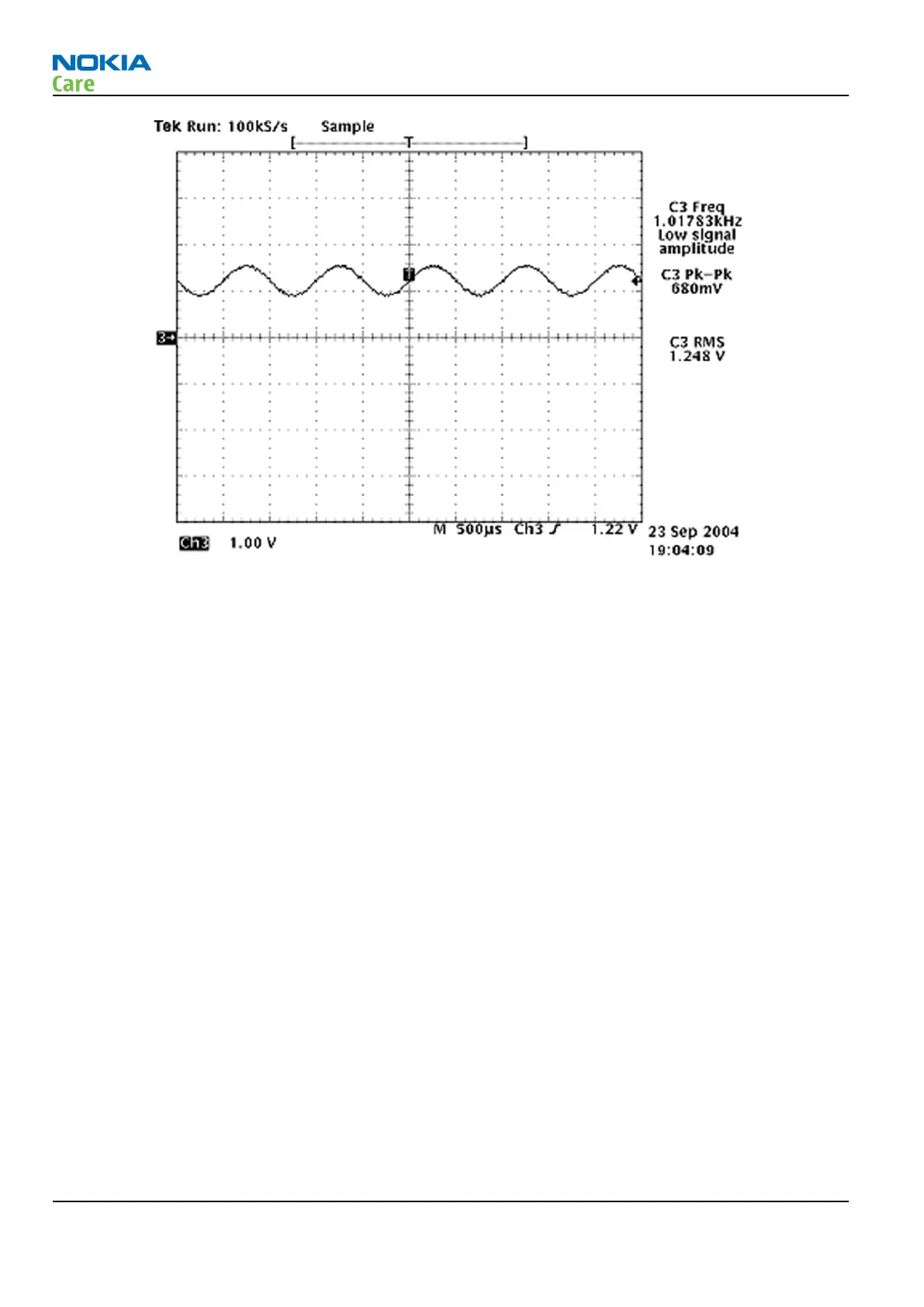

Figure 12 Single-ended output waveform of the HP_in_Ext_out loop when microphone is connected.
RM-598; RM-604
BB Troubleshooting and Manual Tuning Guide
Page 3 –40 COMPANY CONFIDENTIAL Issue 1
