4.5 Sensor Cables
The ultrasound sensors are connected to the control panel via sensor cables.
A "trunk" cable runs from the panel to the sprayer boom. From the trunk
cable, a standard "branch" cable allows for connection of the two standard
boom sensors and an optional center sensor (refer to Figure 5). Another
optional branch cable is required to connect additional sensors.
WING SENSOR
(LO OR RO)
MAIN ROLL
SENSOR (MR)
WING SENSOR
(LO OR RO)
CONNECTS TO
SENSOR TRUNK CABLE

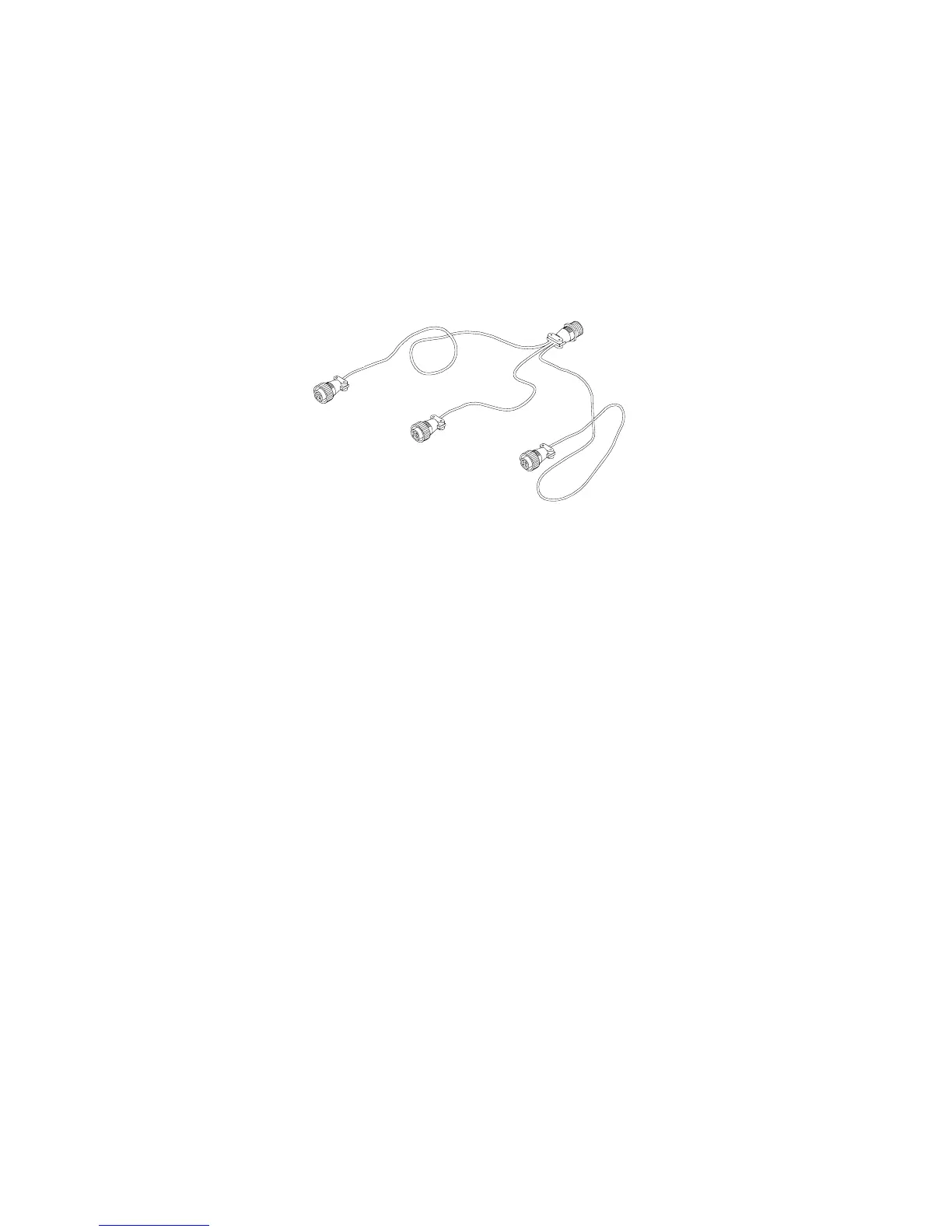

Figure 5 – Branch Cable
4.6 Control Panel
The control panel (Figure 6) is the main component of the UC4 system
because it regulates the operation of the entire system. The panel uses the
readings from the ultrasonic sensors to control solenoid operated valves
(usually hydraulic), that in turn adjust the boom height. The control panel
will:
(1) indicate when the system is in automatic or manual mode,
(2) indicate any hydraulic action which is underway, and
(3) accept input to adjust all control system settings.
