3 CONTROL PANEL MOUNTING
Install the UC4+ control panel (E01) in the cab of the sprayer with the supplied mounting bracket. The
location must facilitate connecting the power cable (C10) to the bottom of the UC4+ Control Panel.
Using the adjustable RAM mount on the control panel (E01), mount panel as shown in Figure 1.

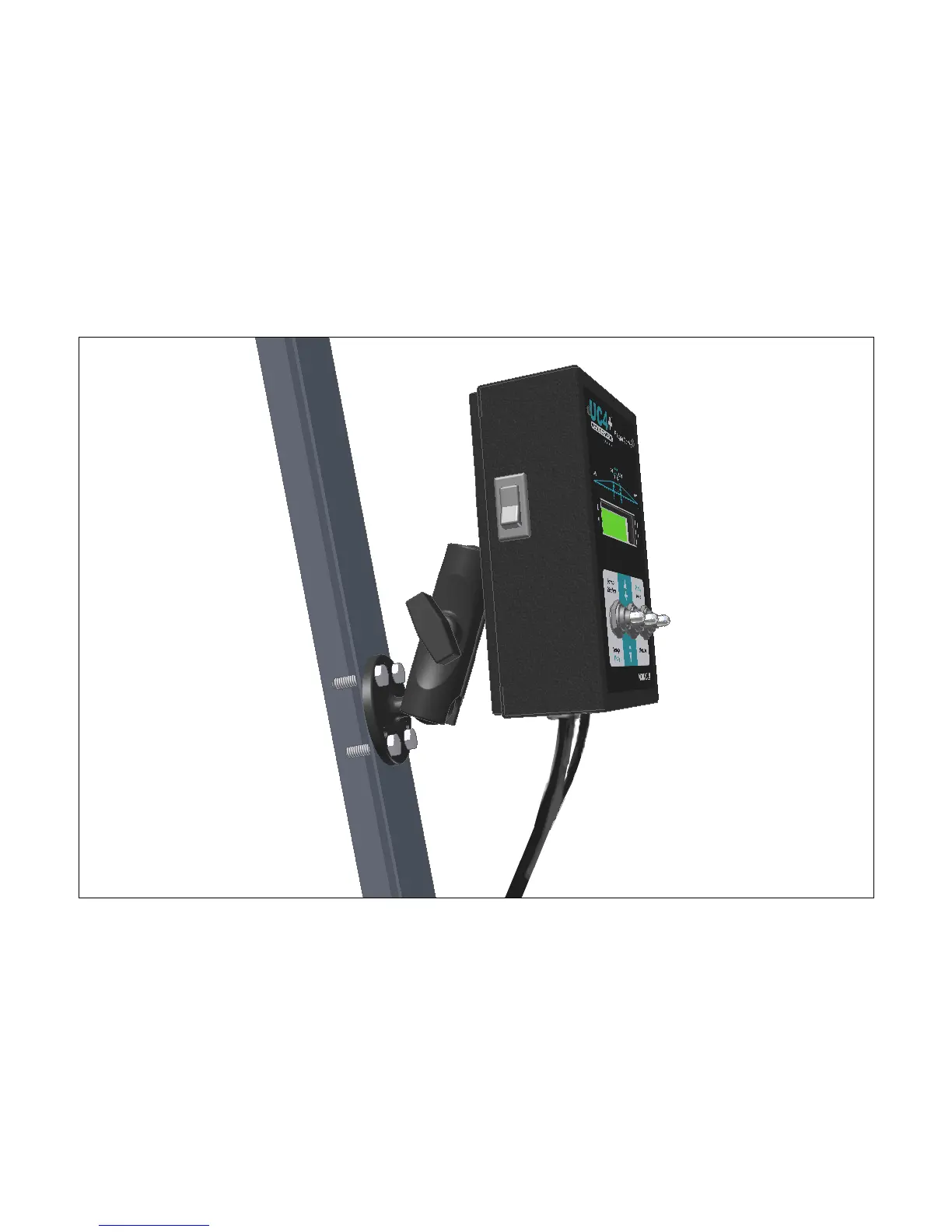

Figure 1 – Mounted UC4 panel
