4 CABLE INSTALLATION

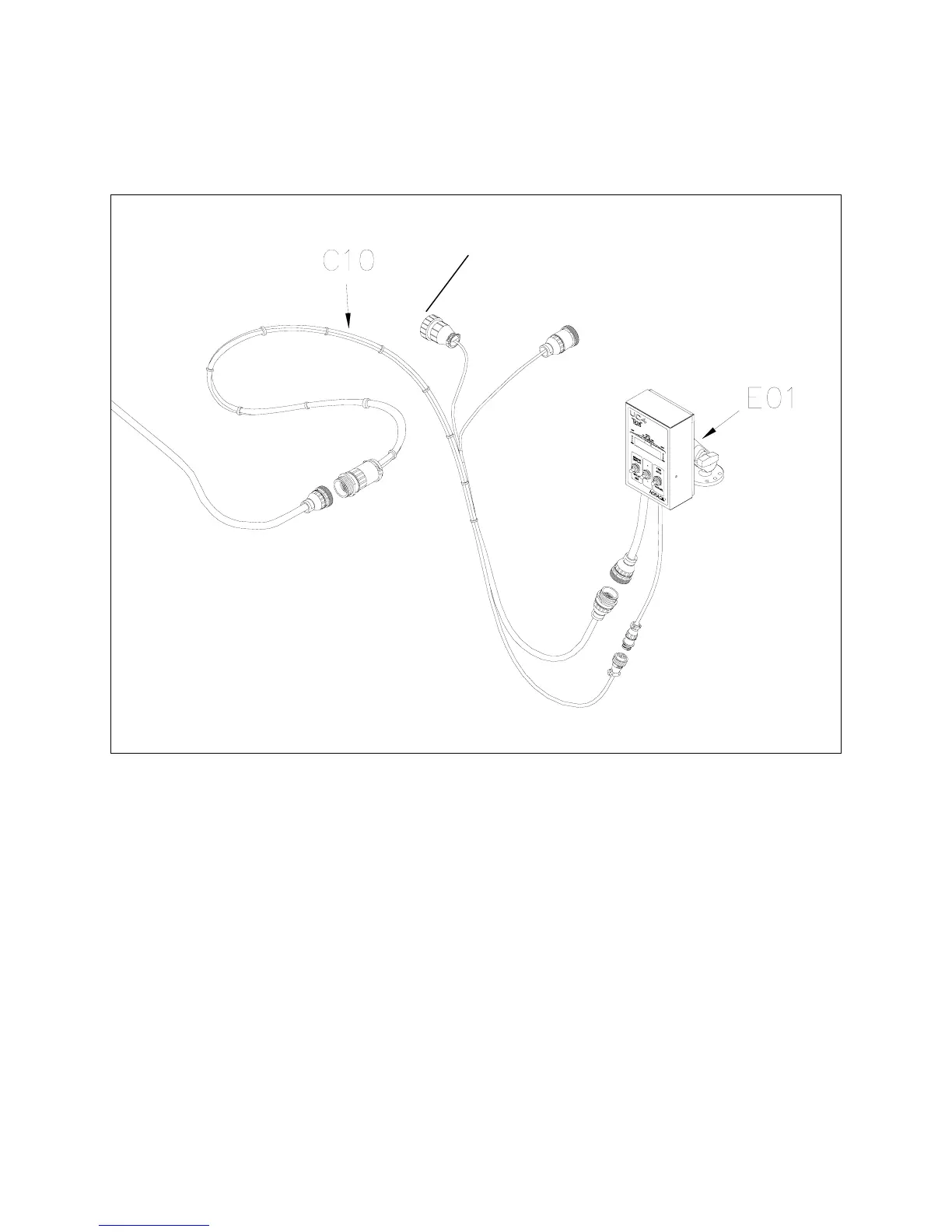

Figure 2 – Cable Routing Overview
1. Connect C10 to the UC4 control panel in the sprayer cab. Ensure that both plugs (P16A and P4)
are connected to the panel.
2. Route the receptacle end (R16) of C10 to the exterior of the cab and connect to C11 at the hitch.
Ensure cable is routed in a safe manner to avoid damage.
3. Connect Power to Harness C10 via the 3-pin AMP plug. If this plug does not fit a power source in
the tractor, cut off the connector and hard-wire to a power source. Ensure the power source is
fused (10A).
4. All other cables and connections have already been factory installed.
POWER
CONNECTION
HITCH
CONNECTION
To Next Page
