Norac UC5 - Page 29


27

Whilein manual mode, if thesystem voltage (+12 VDC) is momentarily applied to the remote auto line,
the system will switch to automatic mode.While in automatic mode, each time the system voltage is
momentarily applied to the remote auto line, the system will change between automatic mode and
HeadlandAssist™.
With remote auto selected as the trigger, the set point increment/decrement feature can still be used
withthemainliftswitchtochangethetargetheightforHeadlandAssistandautomaticmode.


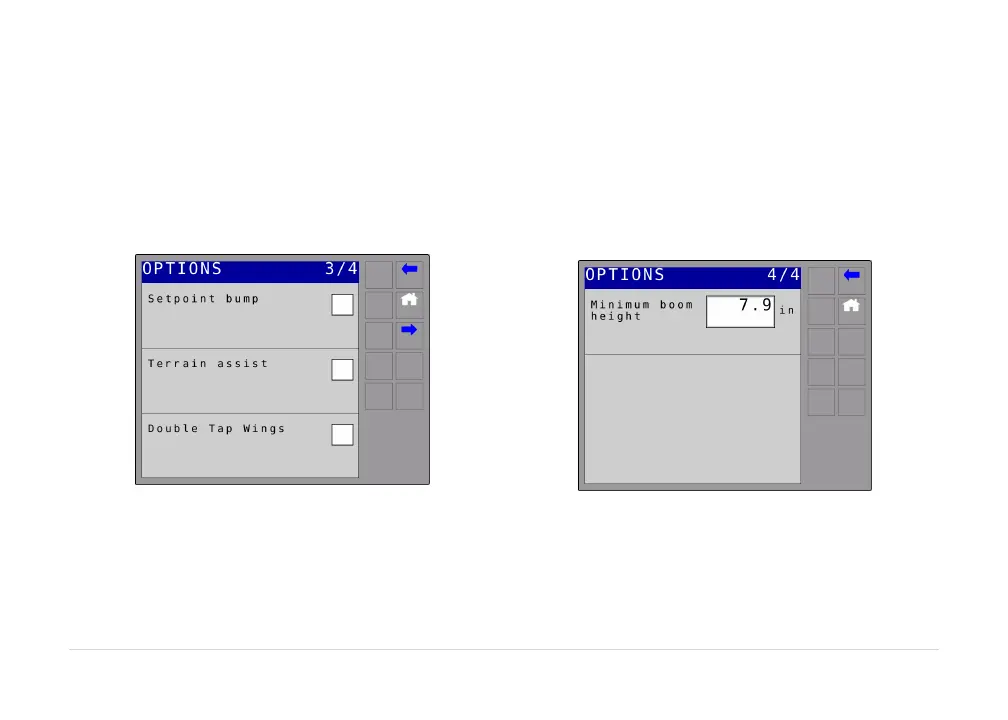

Figure10:Options3Screen

Figure11:Options4Screen
