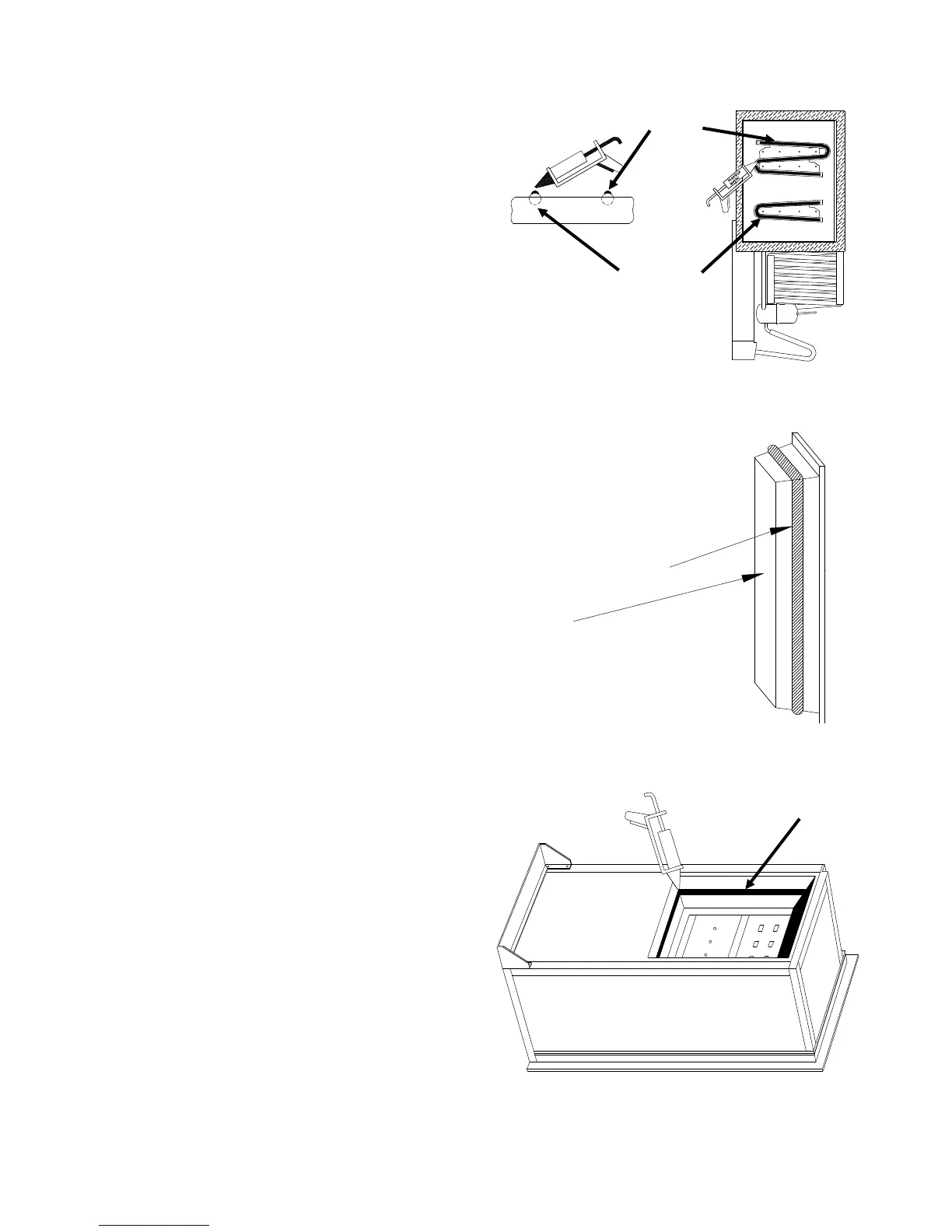

4. Remove from the shipping carton two tubes con-
taining transfer mastic and permagum sealant
(tube are labeled for identification).
5. Apply the transfer mastic (1/2" bead) to the ex-
posed part of the tubes on the upper and lower
portions of the replacement cooling unit.
Note: Omitting the Transfer Mastic will re-
sult in poor cooling performance.
6. Apply the permagum sealant around the perimeter
of the foam block on the cooling unit.
Note: Omitting the permagum sealant will
result in excessive frost accumulation or
excessive moisture in the refrigerator’s in-
terior and poor cooling performance.
7. Apply remaining permagum sealant around the
cooling unit opening of the refrigerator cabinet.
Evaporator
Tube
1/2" Bead
Transfer
Mastic
Figure 24
Figure 26
Cooling Unit
Opening
Figure 25
1/2" Bead
Permagum Sealant
Foam Block
20
