Norcold 323 - Wiring Pictorial

Owner’s Manual 14
+
_
1A
1B
3A
3B
2B
2A
4B
4A
3
4
YEL / JUANE
BLK / NOIR
BLK (RIB) /
NOIR (CANN.)
BLK / NOIR
BLK / NOIR
BLK / NOIR
RED / ROUGE
RED / ROUGE
BLK / NOIR
RED /
ROUGE
Art02419
90
92
96
93
94
108
230
207
220
219
221
91
231
Wiring Pictorial

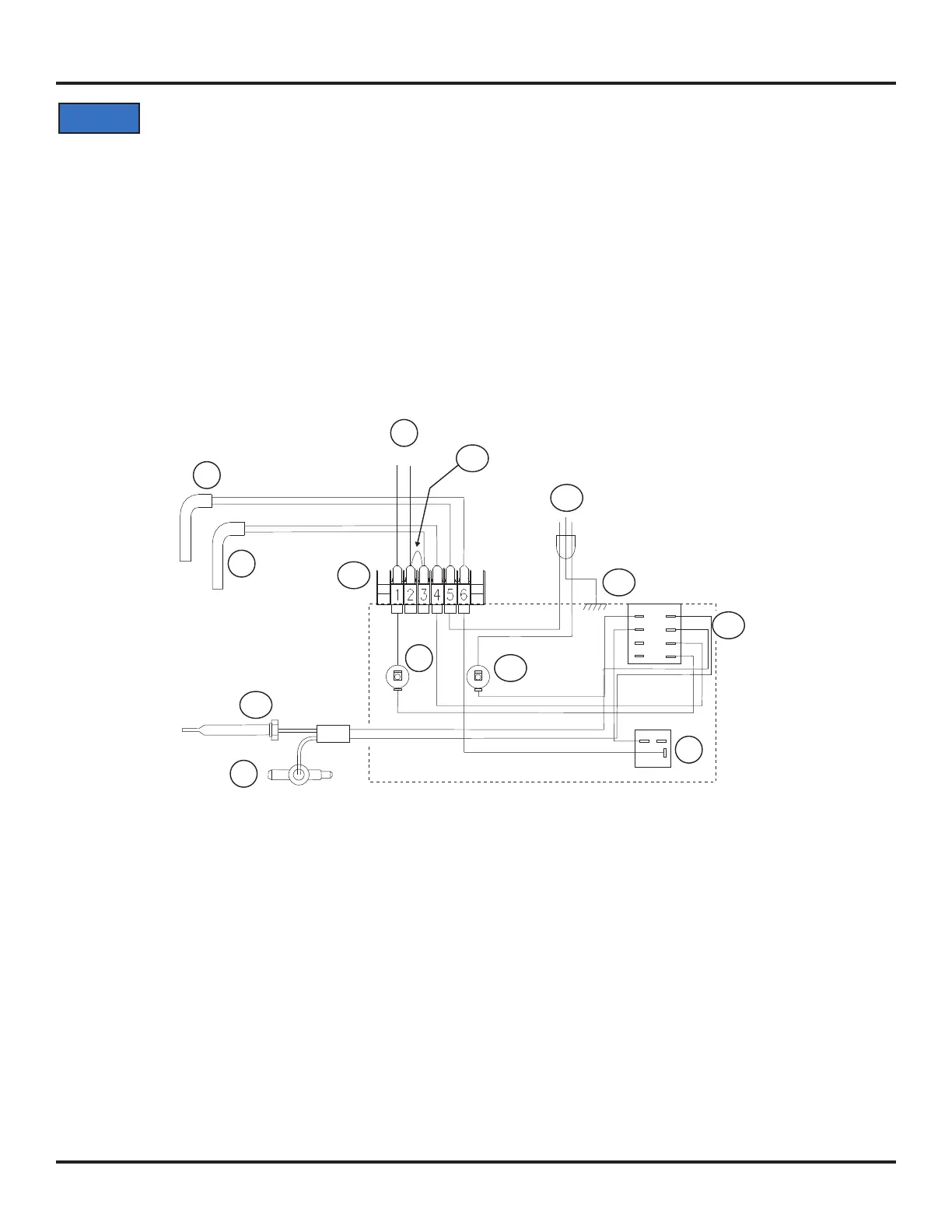

This is a rear view of the control assembly.
The parts or the wiring pictorial are (See Art02419):
120 VAC Power cord .........................................................................................................................................................................108
Chassis ground .................................................................................................................................................................................230
Thermocouple ...................................................................................................................................................................................221
3 Amp fuse ........................................................................................................................................................................................220
AC heater ............................................................................................................................................................................................ 92
Jumper ..............................................................................................................................................................................................231
Terminal block ................................................................................................................................................................................... 219
Gas control with safety valve ..............................................................................................................................................................91
Mode selector ...................................................................................................................................................................................207
20 Amp fuse ........................................................................................................................................................................................ 93
12 VDC Power supply ......................................................................................................................................................................... 90
DC heater............................................................................................................................................................................................94
AC Thermostat .................................................................................................................................................................................... 96
NOTICE
