Norcold 323 - Wiring Diagram

Owner’s Manual 15
TB-1
GRN /
VERT
TB-6
TB-4
TB-3
TB-2
TB-5
BLK (RIB) /
NOIR (CANN.)
Art02420
90
92
96
93
94
108
207
220
221
91
111
90
108
222
167 216

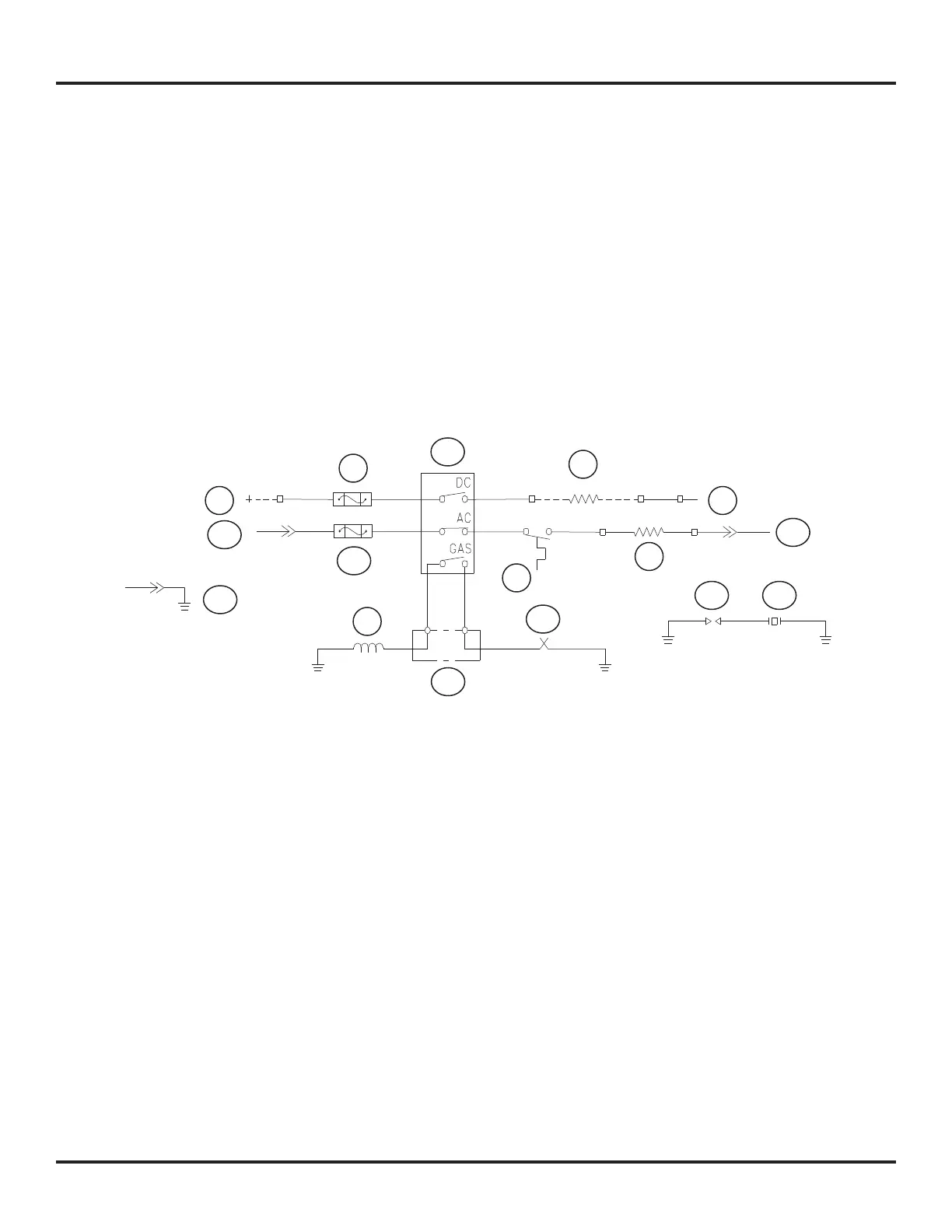

Wiring Diagram
The parts of the wiring diagram are (See Art02420):
120 VAC ............................................................................................................................................................................................ 108
3 Amp fuse ........................................................................................................................................................................................220
Selector switch .................................................................................................................................................................................. 207
AC heater ............................................................................................................................................................................................ 92
120 VAC ............................................................................................................................................................................................ 108
AC ground ......................................................................................................................................................................................... 111
Spark gap..........................................................................................................................................................................................167
Piezo lighter ......................................................................................................................................................................................216
Gas control with safety valve ..............................................................................................................................................................91
Thermocouple ...................................................................................................................................................................................221
Thermocouple interrupter..................................................................................................................................................................222
+12 VDC (3-way models only) ............................................................................................................................................................90
20 Amp fuse (3-way models only) .......................................................................................................................................................93
DC heater (3-way models only) ..........................................................................................................................................................94
-12 VDC (3-way models only) .............................................................................................................................................................90
