AC Heating Element
Applies specific amount of
heat to the cooling unit, provid-
ing 120 volts AC is present to
the refrigerator.
DC Heating Element
Applies specific amount of heat
to the cooling unit, providing the
DC input voltage is correct.
Humidity/Storage Switch
(2 - Door Models Only)
The HIGH HUMIDITY position
keeps the surface between the
door openings dry during high hu-
midity conditions. The switch
should be left in the NORMAL OP-
ERATION position unless conden-
sation is observed in this area.
When the RV is being stored for
the winter this switch should be in
the OFF position.
Black Leads

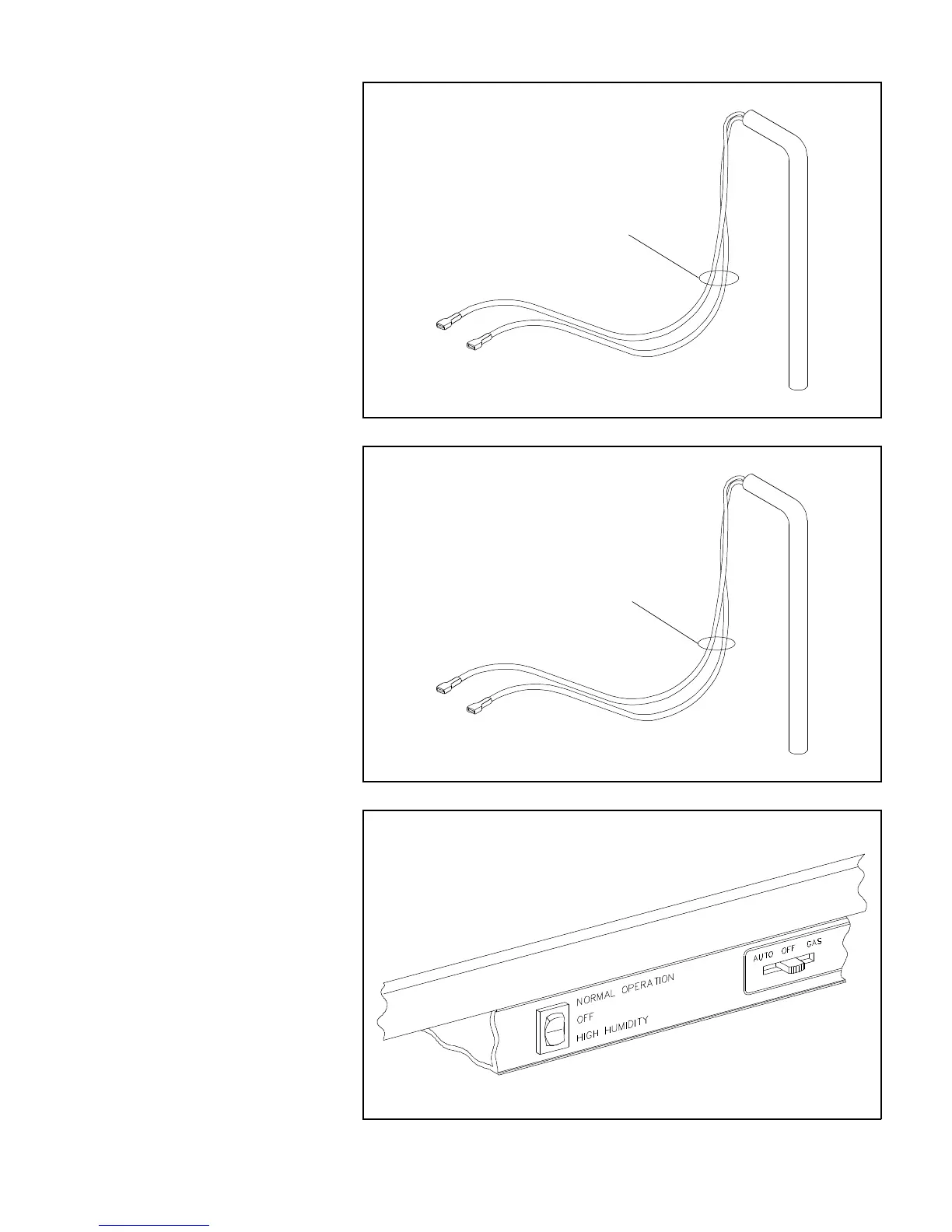

Figure 11.18 AC Heater
Yellow Leads
Figure 11.19 DC Heater
Figure 11.20 Humidity/Storage Switch
