12 Volts DC Connection
All refrigerator models require a 12
volt DC supply (even though 2-Way
models are designed to operate on
120 volts AC and gas, a 12 volt DC
control is required to perform control
functions in Gas and AC Modes. The
DC lead connections (1/4" male quick
connects) are at terminals located on
the Power Supply at the rear of the
refrigerator. One connection is
marked positive (+ ) and the other
negative (-). Correct polarity must be
observed when connecting to the DC
supply. Connect two wires at the re-
frigerator and route to the DC supply.
The distance the current must travel
from the battery to the refrigerator
dictates the AWG wire size to be
used. Should the wire be too small
for the distance, a voltage drop will
result. In the case of 3-Way models,
the voltage drop affects the wattage
output of the system heater and re-
sultant refrigerator performance.
See the wire and fuse chart (Table
1) for the correct wire and fuse size.
Electrical Connection
120 Volts AC
The refrigerator is equipped with a
three-prong plug for protection
against shock hazard and must be
connected into a recognized three-
prong attachment receptacle. The
free length of cord is 24" and there-
fore is recommended that the re-
ceptacle be located to the left side
of the refrigerator (viewed from rear)
and approximately 12" from the
floor. This allows easy accessibility
through the vent door. The cord
must be routed so as not to come in
contact with the Burner cover, flue
pipe, or any other component that
could damage the cord insulation.
DO NOT REMOVE (CUT)
GROUNDING PRONG FROM THE
REFRIGERATOR AC POWER
CORD. REMOVAL OF THIS
PRONG CAN RESULT IN A SEVERE ELECTRICAL SHOCK, AS WELL AS,
VOIDING THE REFRIGERATOR ELECTRICAL CERTIFICATION AND WAR-
RANTY. EXTENSION CORDS ARE NOT RECOMMENDED.
652, 6052 653, 6053
min. wire
size
max. fuse
size
min. wire
size
max. fuse
size
0-20’ 18 AWG 5 Amp 12 AWG 20 Amp
over 20’ 18 AWG 5 Amp 10 AWG 30 Amp
662, 682, 6062, 6082, 6162,
6182
663, 683, 6063, 6083, 6163,
6183
min. wire
size
max. fuse
size
min. wire
size
max. fuse
size
0-20’ 18 AWG 5 Amp 10 AWG 30 Amp
over 20’ 18 AWG 5 Amp 8 AWG 40 Amp
WARNING
This end of the AC
power cord connects to
terminal J-9 neutral and
J-10 hot and the green
ground wire attaches to
the chassis ground.
Green
Ground
Plug
Three
Prong
Plug

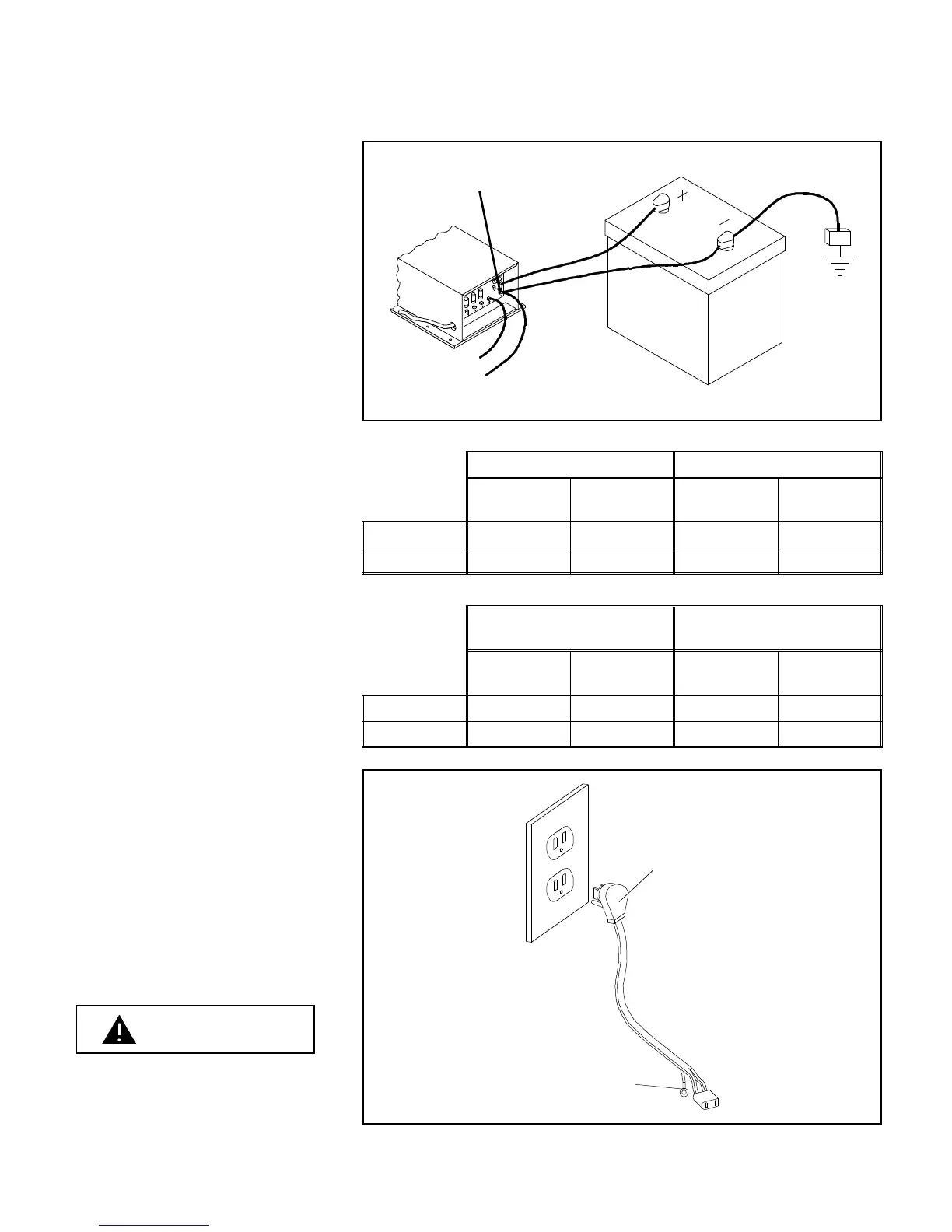

Figure 11.2
Appliance
Connection
Convertor
12 volt
RV battery
To Refrigerator
Figure 11.1 Recommended 12 Volt Supply Connection
B101
