Norcold 600 - Mode Selector Operation Status; Normal Mode Indicators

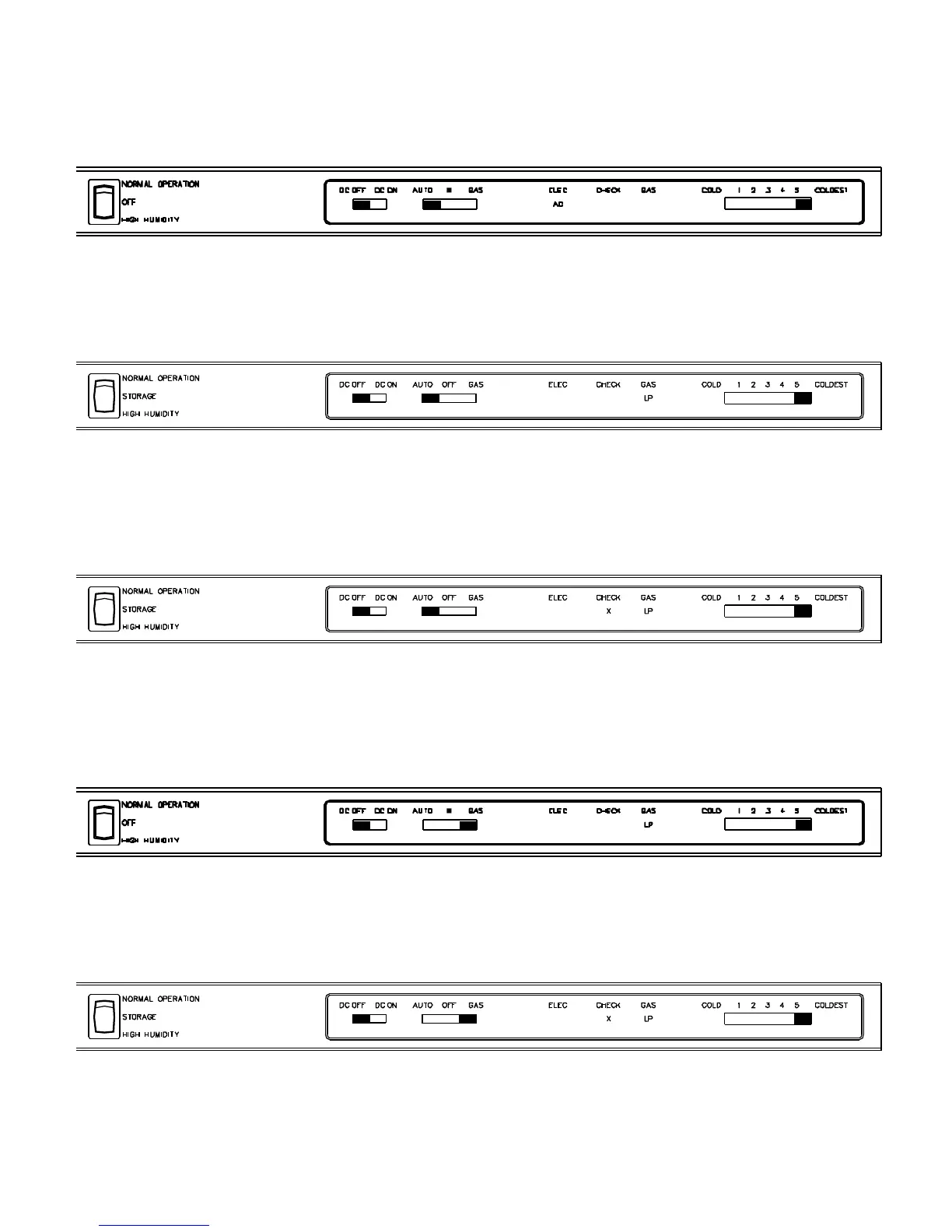

Illustrations Showing Normal and Abnormal Conditions of the Mode Selector
Normal Condition
Mode Selector set to AUTO; AC indicated. Refrigerator operating on AC.
Normal Condition
Mode Selector set to AUTO; LP indicated. Refrigerator operating on GAS. 120 volts AC is not supplied to the refrig-
erator.
Normal Condition - Refrigerator off
Mode Selector set to AUTO; CHECK and LP indicated. 120 volts AC is not supplied to the refrigerator and a trial for
ignition failed. The check light will turn on then off and on again during the process.
Normal Condition
Mode Selector set to GAS; LP indicated. Refrigerator operating on GAS.
Normal Condition - Refrigerator off
Mode Selector set to GAS. CHECK and LP indicated a trial for ignition failed. The check light will turn on, then off, and
on again during the process.
Figure 11.62 Electric Operation
Figure 11.65 Gas Operation
Figure 11.64 Gas Operation
Figure 11.63 Gas Operation
Figure 11.66 Gas Operation
