3. Check the 12 volt DC input to
terminals J4 and J5 as shown
in Figure 5.42. If you do not
have +12 volts, repair the 12
volt supply.
4. Remove the cable from the
Power Supply shown in Figure
5.43.
5. Remove all the wires from the
terminals on the Power Sup-
ply.
6. Remove the Power Supply
cover to gain access to the
Power Supply.
7. Reinstall the AC and DC in-
puts to their terminals on the
Power Supply.
8. Check for 120 volts across the
5 amp fuse as shown by Fig-
ure 5.44.
9. You should have 120 volts as
shown. If you do not have 120
volts, replace the 5 amp fuse.
NEVER OVERFUSE A CIRCUIT.
REPLACE BLOWN FUSE WITH
EXACT REPLACEMENT INDI-
CATED BY NORCOLD. OVER-
FUSING OF A CIRCUIT CAN RE-
SULT IN A FIRE.

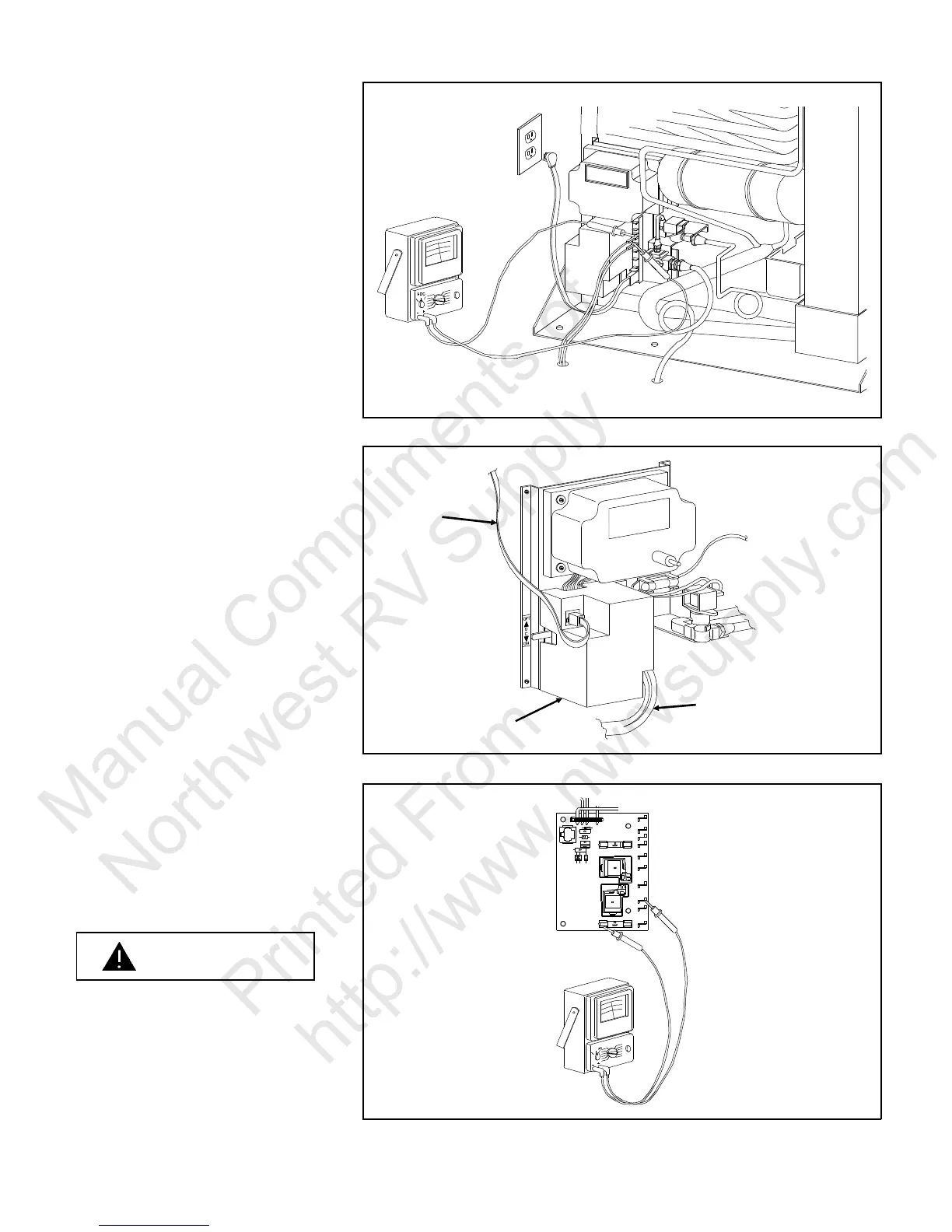

Figure 5.42 12 Volt DC Supply Check
Figure 5.43 Power Supply
Figure 5.44 5 Amp Fuse Check
