10. Check the 3 amp fuse as
shown in Figure 5.45. To be
sure you have 12 volts DC
across it. If you do not have 12
volts, replace the 3 amp fuse.
NEVER OVERFUSE A CIRCUIT.
REPLACE BLOWN FUSE WITH
EXACT REPLACEMENT INDI-
CATED BY NORCOLD. OVER-
FUSING OF A CIRCUIT CAN RE-
SULT IN A FIRE.
11. With the volt meter set to
measure DC, check Points 1,
2 and 3 shown in Figure 5.46
for 12 volts DC. If you do not
have 12 volts, replace the
Power Supply.
Note:
Be sure the storage switch is in
the down position "On" and re-
member that the diodes will be
numbered D6 and D7 on the origi-
nal power supplies.
12. Reconnect the cable to the
Power Supply.
13. Remove the screws shown in
Figure 5.47 and pull the Eye-
brow assembly away from the
refrigerator.

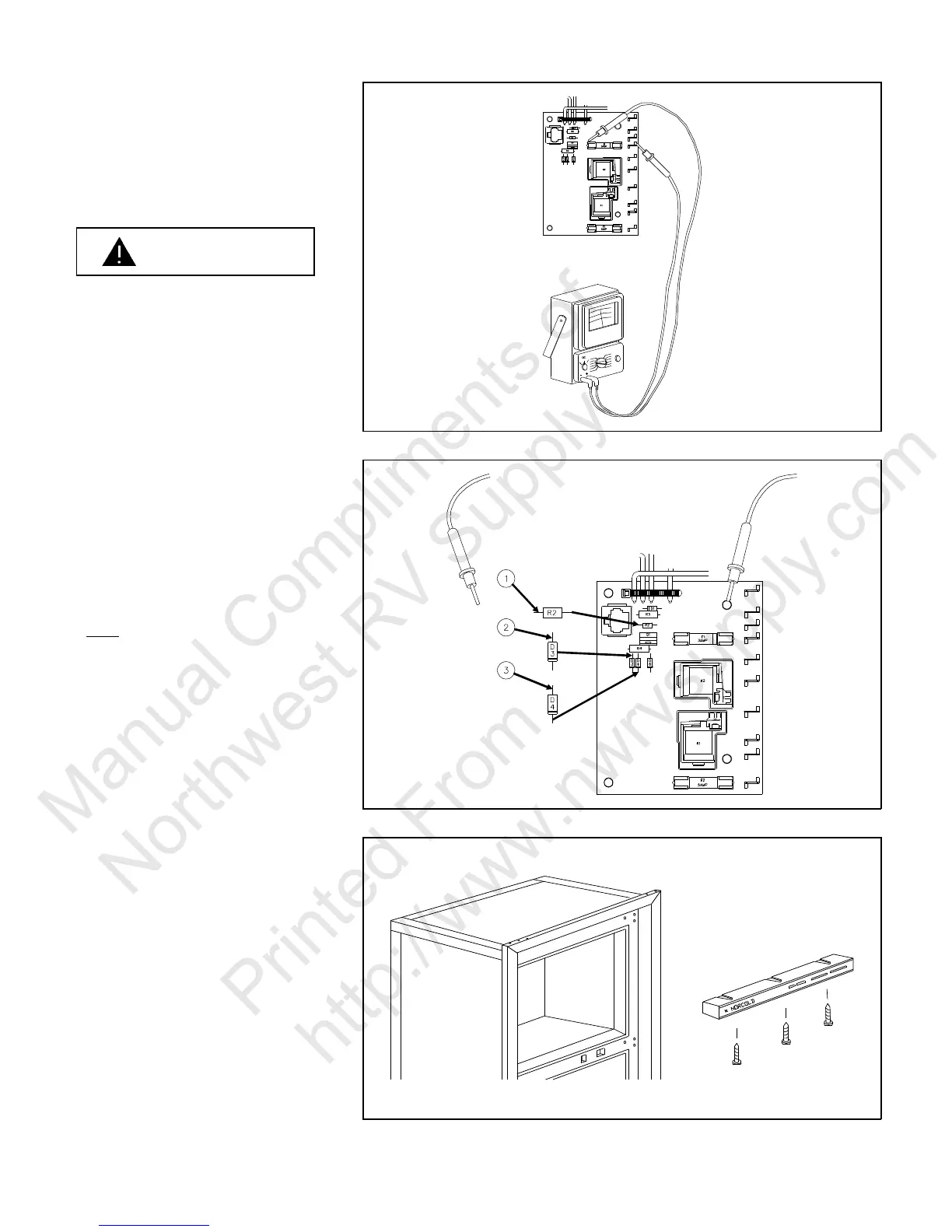

Figure 5.45 3 Amp Fuse Check
Figure 5.47 Eyebrow Removal
Figure 5.46 12 Volt DC Check
