Installation Manual 3
Assemble the Enclosure
Make sure that the enclosure is the correct size: 63.25 – 63.38 inches high x 32.69 – 32.82 inches wide x 24.00 inches deep.
-For enclosures deeper than 24 inches ensure that the refrigerator is inserted into the enclosure only to the depth of the breaker. This
ensures that the door latches can be accessed, and the doors can be opened to the maximum extent without interference from the

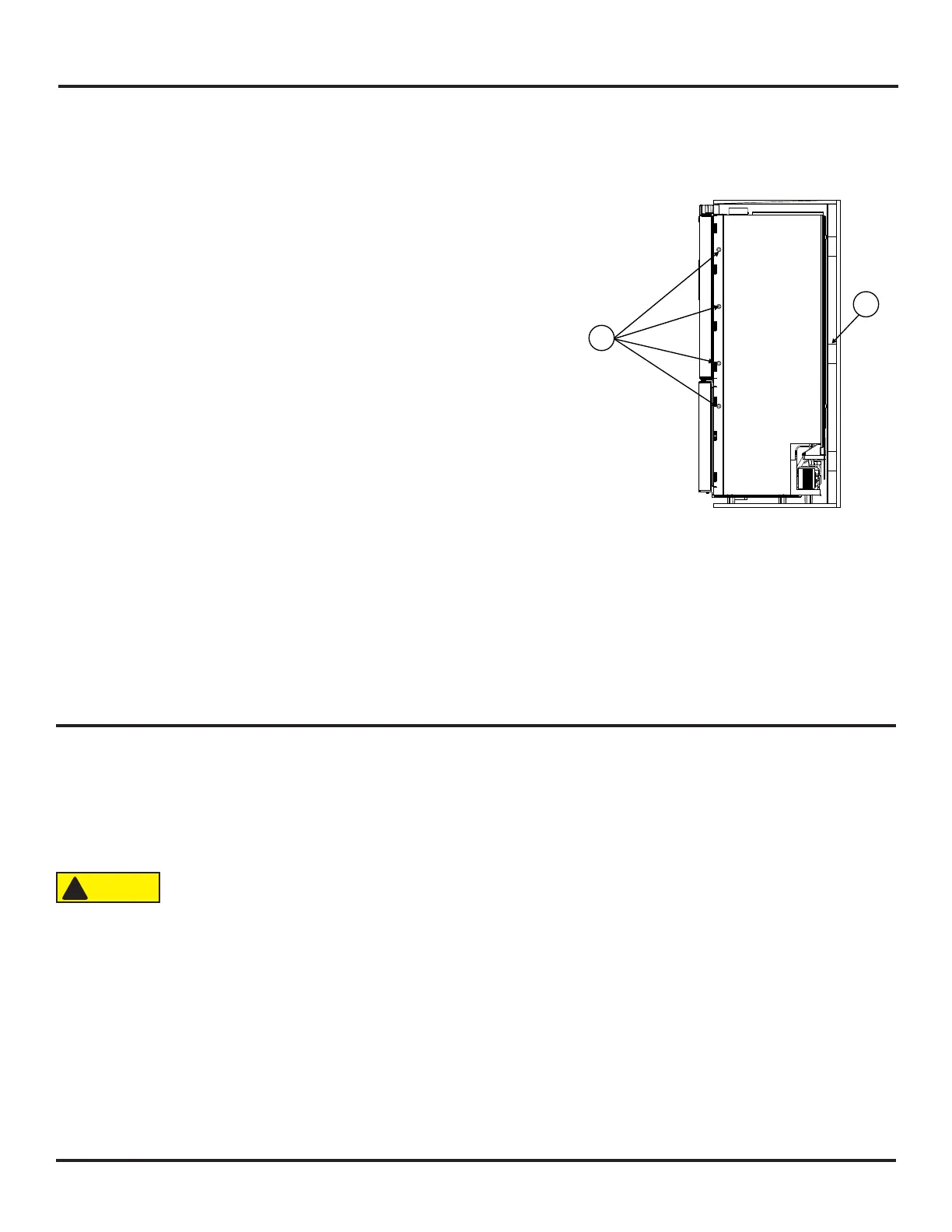

sides of the enclosure. (See ART02781)
-If the enclosure is deeper than 25 inches, the refrigerator’s performance may be
optimized by installing a wood, aluminum or galvanized sheet solid box bae [1]
in the rear of the enclosure to make the enclosure depth 24 inches.
-Make sure that the back of the solid box bae is perpendicular to the bottom of the
enclosure.
-Make sure that the solid box bae is the full width and height of the inside of the
enclosure.
- The enclosure width may vary, however the enclosure at the breaker mounting
points [2] should be framed with solid wood to 32.39-32.82 inches wide. This is to
ensure the refrigerator can be securely fastened to the enclosure without damage
to the cabinet liner.
Make sure the oor is solid and level:
- The oor must be metal or a wood panel and extend the full width and depth of the
enclosure.
- The oor must be able to support the weight of the refrigerator and its contents.
- Make sure there are no adjacent heat sources such as a furnace vent, etc.
- Make sure any exterior vents are blocked.
Ventilation Requirements
This refrigerator is made for a built-in installation. Correct ventilation is necessary for the correct operation of the refrigerator and to
increase the life of the refrigerator cooling system.
Ventilation allows the natural air ow that is necessary for good refrigeration. Cooler air comes in under the refrigerator, goes around
the refrigerator coils where it removes the excess heat from the refrigerator components, and goes out through an upper exhaust vent.
If this air ow is blocked or decreased, the refrigerator will not cool correctly.
The refrigerator has a built-in vent at the top and clearance at the bottom. Make sure that the ow of air
through these vents are not blocked in any way. Blockage of air through these vents can cause:
- shortened life of the refrigerator cooling unit.
- poor cooling performance of the refrigerator.
- continuous operation of the refrigerator.
- fast battery discharge.
- void of the refrigerator warranty.
!
1
2
ART 02781
