NORDAC Control and Parameter Boxes
16 Subject to technical alterations BU 0040 GB-1611
2.1.4
SK …-3E - built-in version
The SK CSX-3E and SK PAR3E are built-in versions of the parameter boxes described in Section 2.1.3 . If they are
correctly installed in the front of the control panel they comply with protection class IP 54.
2.1.4.1 SimpleBox SK CSX-3E – Built-in Version

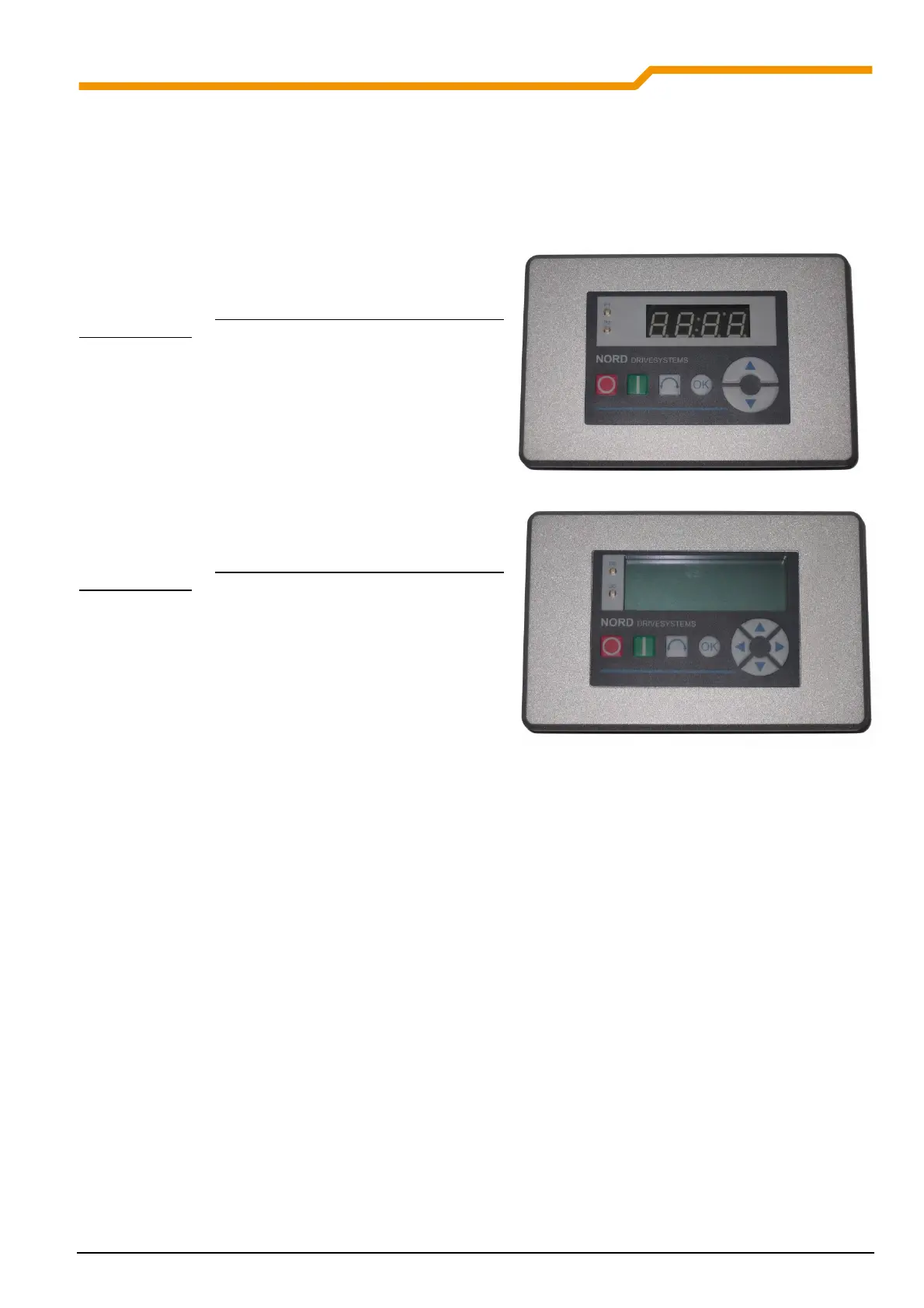

The SK CSX-3E SimpleBox is a compact control device for
installation in a control panel and direct connection to the
frequency inverter via the RJ12 diagnostic socket. A normal
RJ12 -patch cable ("Modular cable RJ12 (6/6) - RJ12 (6/6),
1:1 assignment") with a length of up to 3m can be used for
connection.
If the SimpleBox is supplied from a power source with a
higher voltage (e.g. 24V
DC
from SK 200E), the cable can be
considerably longer.
2.1.4.2 ParameterBox Version SK PAR-3E– Built-in Version
The SK CSX-3H ParameterBox is a compact control device
for installation in a control panel and direct connection to the
frequency inverter via the RJ12 diagnostic socket. A normal
RJ12 -patch cable ("Modular cable RJ12 (6/6) - RJ12 (6/6),
1:1 assignment") with a length of up to 3m can be used for
connection.
If the ParameterBox is supplied from a power source with a
higher voltage (e.g. 24V
DC
from SK 200E), the cable can be
considerably longer.
