Nordic Semiconductor nPM1300 - Page 34

Measure current

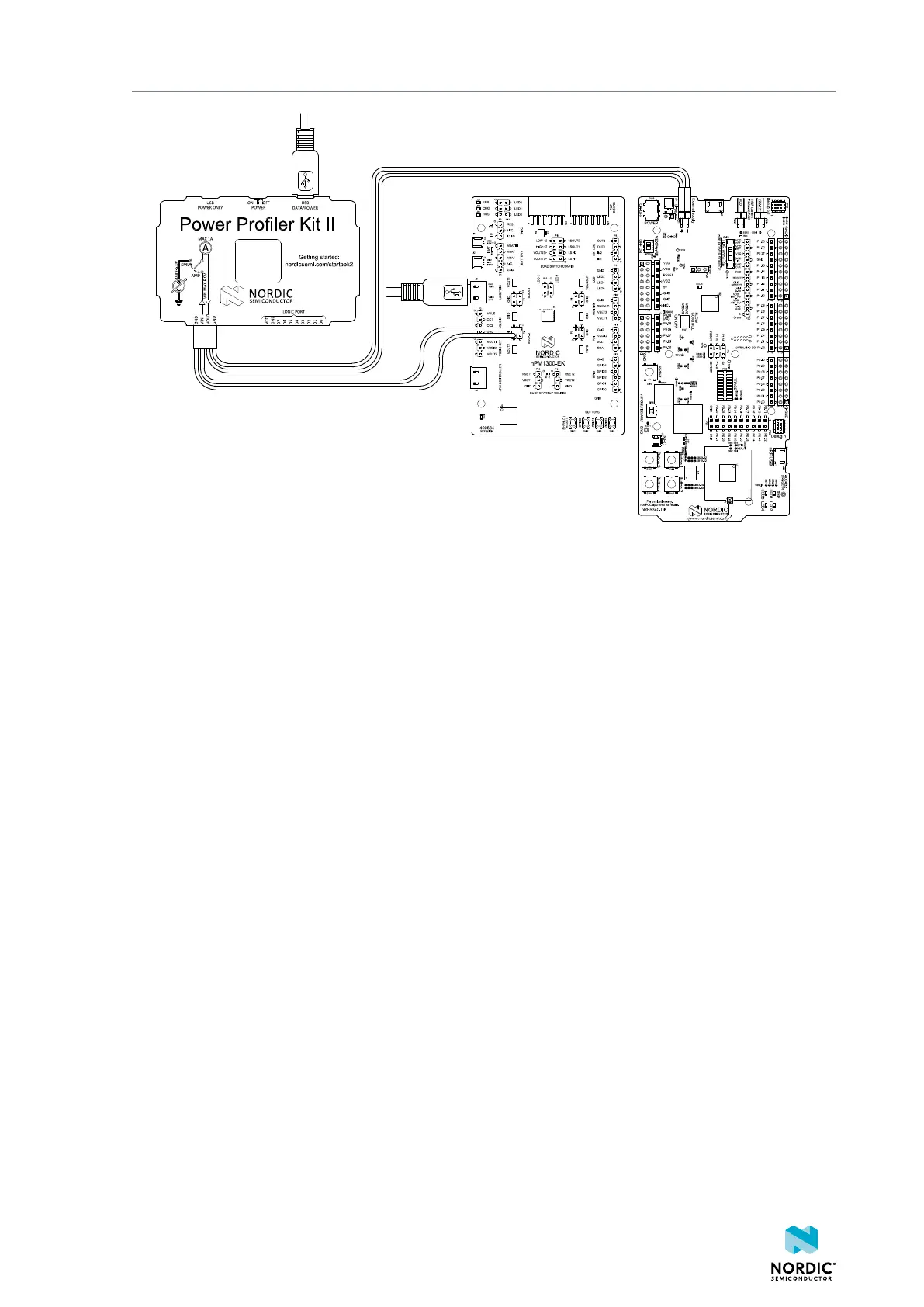

4. Connect the PPK2 to a computer using a USB cable.
5. Connect the nPM1300 EK to a computer using a USB cable.
6. Start the Power Profiler app.
7. Select your PPK2.
8. Select Ampere Meter as the mode.
9. Toggle Enable power output to power the target device (nRF5340 DK in this example).
10.Click Start.
4490_387
34
