6

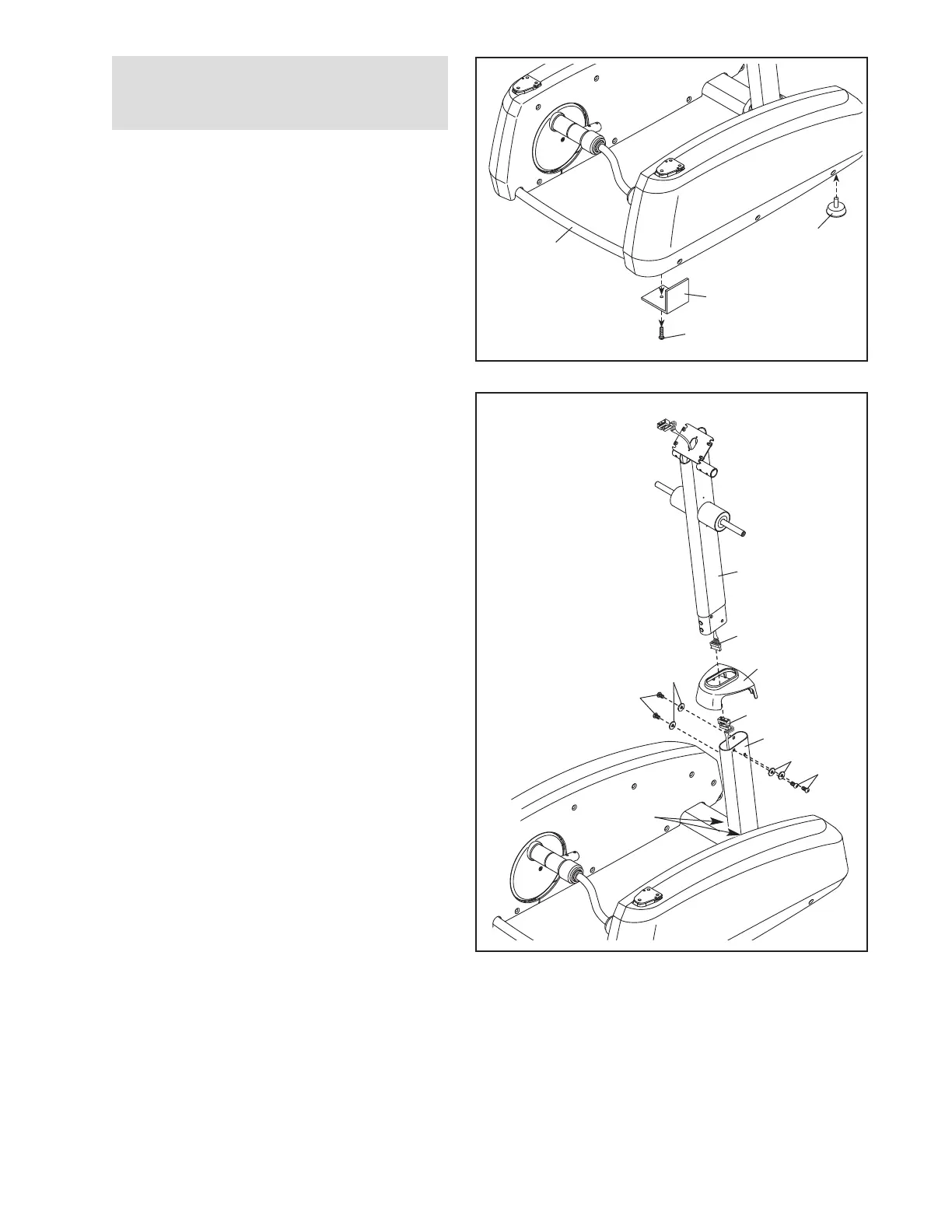

1.
R
emove the four screws and the four shipping
brackets attached to the Frame (1). Discard the
screws and the shipping brackets.
Then, tighten four Leveling Feet (52) into the
underside of the Frame (1).
2. Identify the Frame Cover (54) and orient it as
shown. Press the Frame Cover posts into the
indicated holes in the Frame (1).
Identify the Upright (2) and orient it as shown.
While a second person holds the Upright near
the Frame (1), connect the Upper Wire Harness
(81) to the Lower Wire Harness (82).
Tip: Avoiding pinching the Wire Harnesses
(81, 82) during this step. Insert the Upright (2)
into the Frame (1). Attach the Upright with four
M10 x 19mm Patch Screws (61) and four M10
Split Washers (79). Do not tighten the Patch
Screws yet.
1
2
52
1
1
Shipping Bracket
Screw
To make assembly easier, read the
information on page 5 before you begin
a
ssembling the elliptical exerciser.
79
79
61
Holes
2
61
54
82
81
Avoid pinching
the wires during
this step
To Next Page
