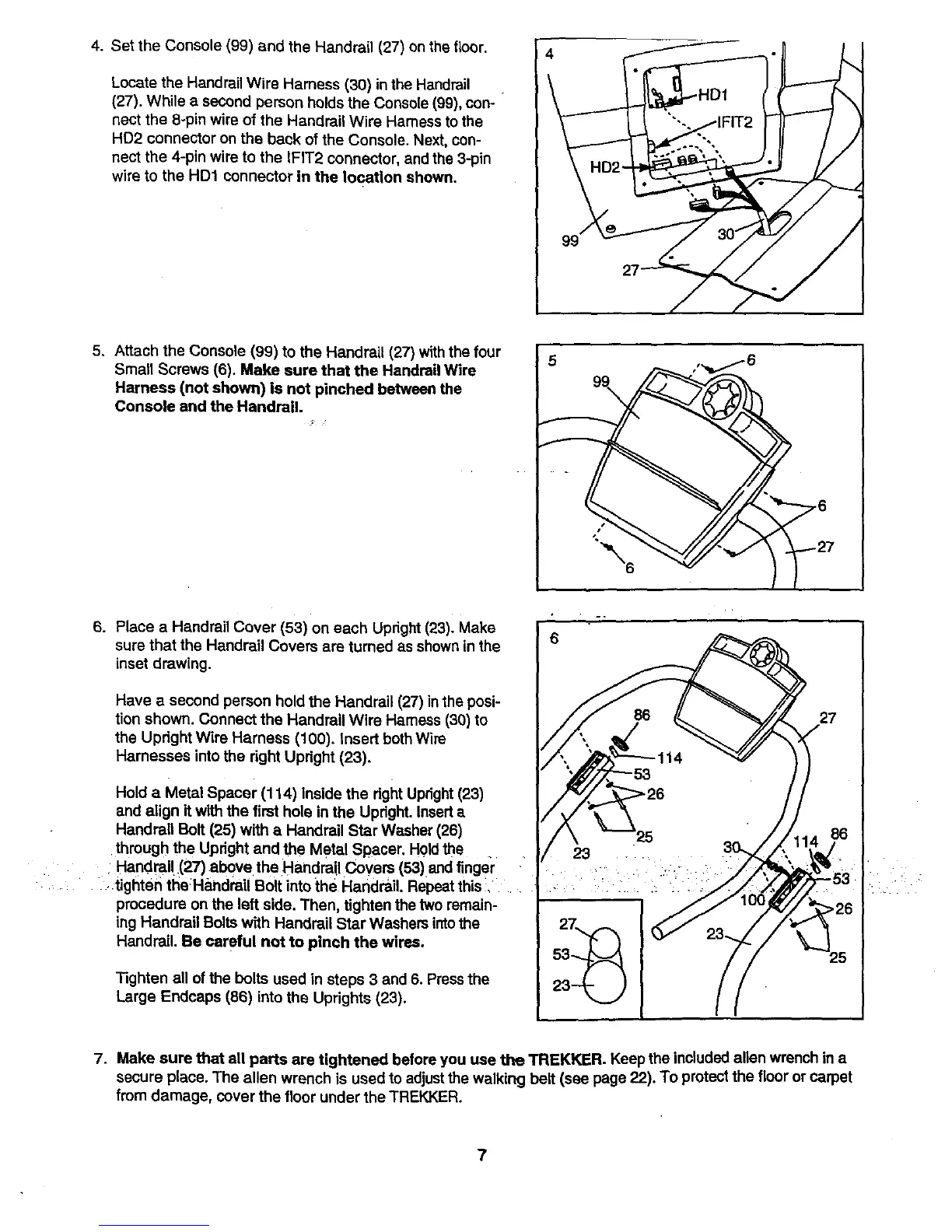

4. Set the Console (99) and the Handrail (27) on the floor.
Locate the Handrail Wire Harness (30) in the Handrail
(27). While a second person holds the Console (99), con- "
nect the 8-pin wire of the Handrail Wire Harness to the
HD2 connector on the back of the Console. Next, con-
nect the 4-pin wire to the IFIT2 connector, and the 3-pin
wire to the HD1 connector in the location shown.
5, Attach the Console (99) to the Handrail (27) withthe four
Small Screws (6). Make sure that the Handrail Wire
Harness (not shown) is not pinched between the
Console and the Handrail.
5
.
Place a Handrail Cover (53) on each Upright (23). Make
sure that the Handrail Covers are turned as shown in the
inset drawing.
6
Have a second person hold the Handrail (27) inthe posi-
tion shown. Connect the Handrail Wire Harness (30) to
the Updght Wire Harness (100). Insert both Wire
Hamessee into the right Upright (23).
Hold a Metal Spacer (114) Inside the rightUpright (23)
and align it with the first hole in the UpdghL Insert a
Handrail Bolt (25) with a Handrail Star Washer (26)
through the Upright and the Metal Spacer. Hqld the ....
, Handrail .(27) above the Handrail Covers (53) and finger "
i.,.tighter_ thaHandreUB01t intothe Har_dmiLRepeat this , . . :. :.
procedure on the left side. Then, tighten the two remain-
ing Handrail Boltswith Handrail Star Washers intothe
Handrail. Be careful not to pinch the wires.
Tighten all of the bolts used In steps 3 and 6. Press the
Large Endcaps (86) into the Uprights (23).
27
23
27
7. Make sure that all parts are tightened before you use the TREKKER. Keep the included alien wrench in a
secure place. The allen wrench is used to adjustthe walking belt (see page 22). To protect the floor or carpet
from damage, cover the floor under the TREKKER.
