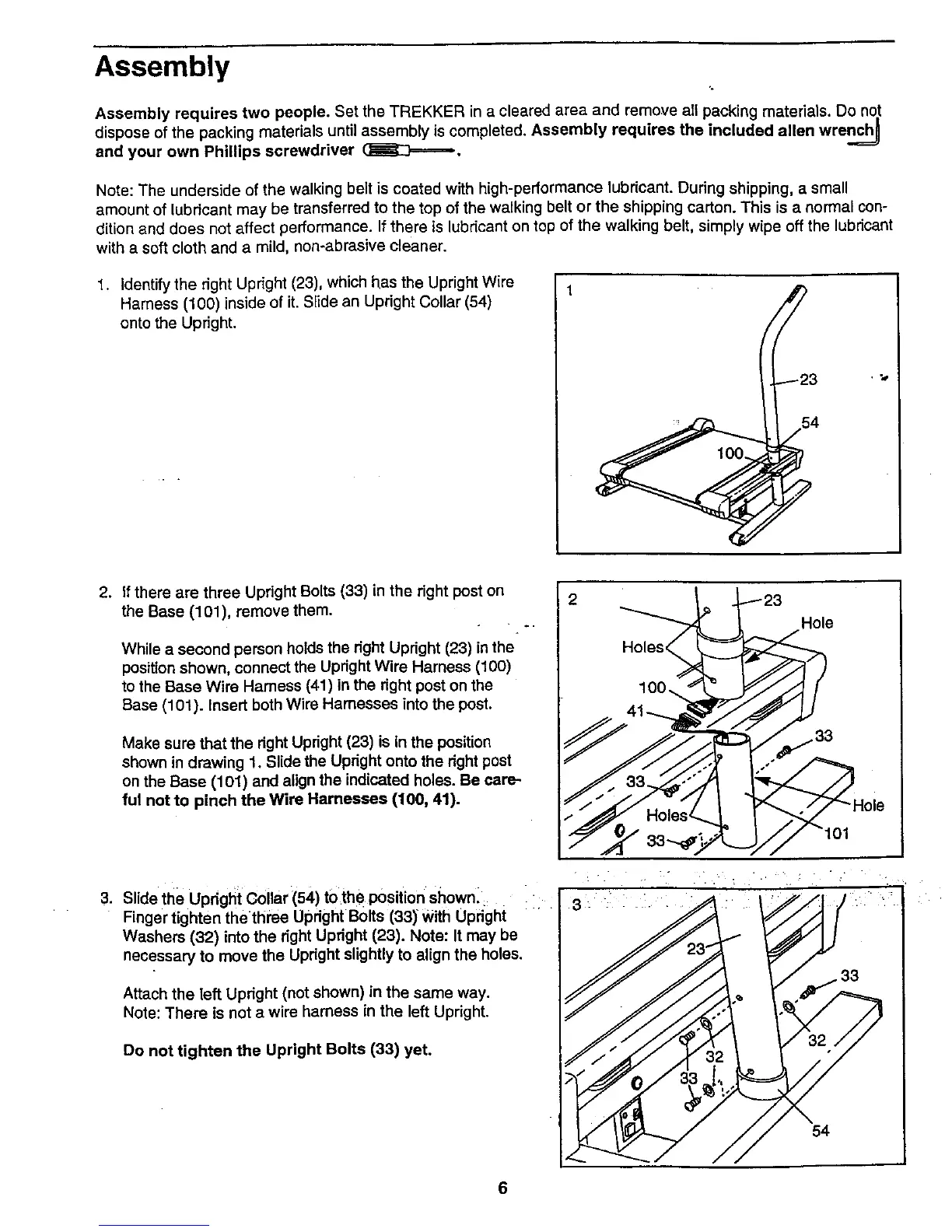

Assembly
Assembly requires two people. Set the TREKKER in a cleared area and remove all packing materials. Do not
materials until assembly is completed. Assembly requires the included allen wrench_
dispose
of the
packing
and your own Phillips screwdriver (]_======,
Note: The underside of the walking belt is coated with high-performance lubricant. During shipping, a small
amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal con-
dition and does not affect performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant
with a soft cloth and a mild, non-abrasive cleaner.
1. Identify the right Upright (23), which has the Upright Wire
Hamess (100) inside of it. Slide an Upright Collar (54)
onto the Upright.
1
23
, I#
2. If there are three Upright Bolts (33) in the right post on
the Base (101), remove them.
= ""
While a second person holds the right Upright (23) in the
position shown, connect the Upright Wire Harness (100)
to the Base Wire Harness (41) in the right post on the
Base (101). Insert both Wire Harnesses into the post.
Make sure that the right Upright (23) is In the position
shown in drawing 1. Slide the Upright onto the right post
on the Base (101) and align the indicated holes. Be care-
ful not to pinch the Wire Harnesses (100, 41).
Hole
3. Slide the Uprigllt collar (54) tOthe position Shown. 3
Finger tighten the three Upright Bolts (33) With Upright
Washers (32) into the right Upright (23). Note: It may be
necessary to move the Upright slightly to align the holes.
Attach the left Upright (not shown) in the same way.
Note: There is net a wire harness in the left Upright.
Do not tighten the Upright Bolts (33) yet.
54
6
