ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials, unless
otherwise instructed. Do not dispose of the packing materials until assembly is completed.
A
ssembly requires the included hex key and your own flat-bladed screwdriver , wire cut-
ters , and adjustable wrench .
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the treadmill or the shipping carton. This is a normal con-
dition and does not affect treadmill performance. If there is lubricant on top of the walking belt or foot pads, simply
wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
6
83
Crossbar
120
73
Cage Nut (28)–3
Handrail Washer
(95)–4
2" Bolt (114)–3
4 1/2" Bolt (96)–4

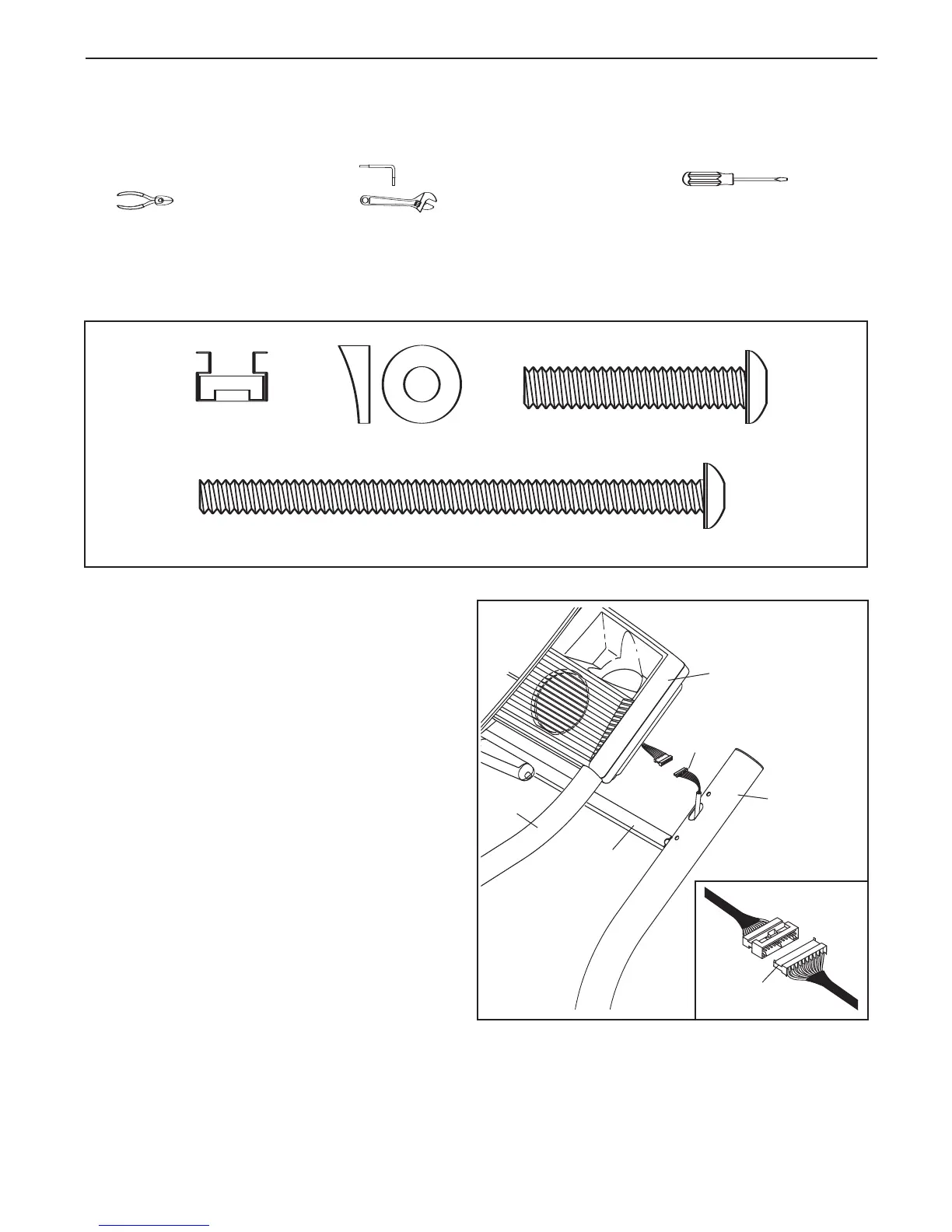

1. With the help of a second person, carefully raise
both Uprights (83) to a vertical position. Remove
any packaging from the crossbar.
Remove the elastic holding the Upright Wire
Harness (131) in the right Upright (83). Have a
second person hold the Handrails (73) near the
Uprights. Connect the Upright Wire Harness to
the wires extending from the Console Base
(120). Make sure to connect the connectors
properly (see the inset drawing). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF THE CONNECTORS ARE NOT
CONNECTED PROPERLY, THE CONSOLE
MAY BE DAMAGED WHEN THE POWER IS
TURNED ON.
Insert the connectors and the Upright Wire
Harness (131) into the hole in the right Upright
(83). Then, set the Handrails (73) on the
Uprights, being careful not to pinch the wires.
131
131
1
