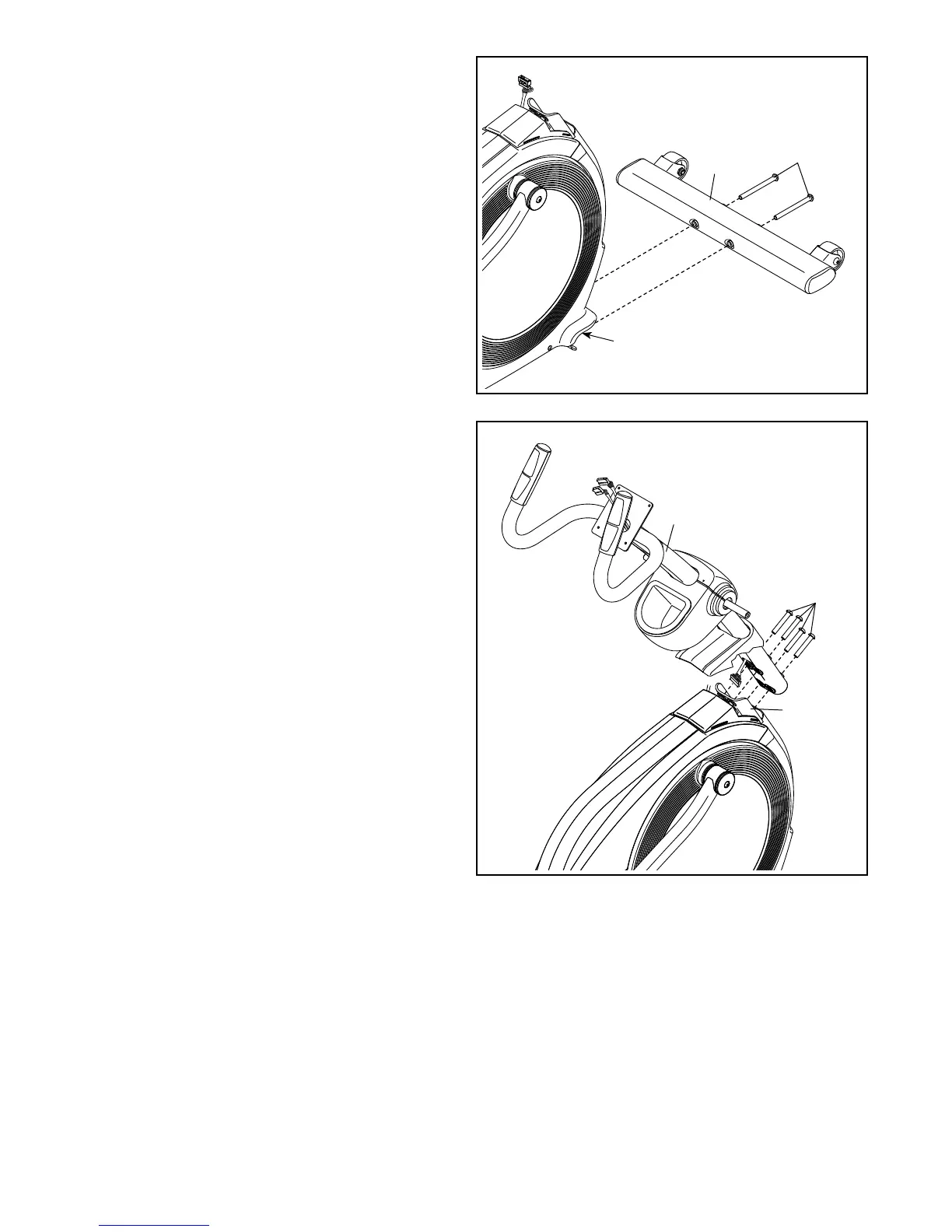

3. With the help of a second person, place some
of the packing materials (not shown) under the
front of the Frame (1). Have the second per-
son hold the Frame to prevent it from tipping
while you complete this step.
Attach the Front Stabilizer (3) to the Frame (1)
with two M10 x 115mm Screws (104).
Remove the packing materials from under the
front of the Frame (1).
1
3
104
4
4. Orient the Upright (4) as shown.
Tip: Avoid pinching the wires. Have a
second person hold the Upright (4) against the
Frame (1). Attach the Upright with four M10 x
60mm Screws (106). Start all the Screws, and
then tighten them.
Avoid pinching
the wires
4
1
106
To Next Page
