10

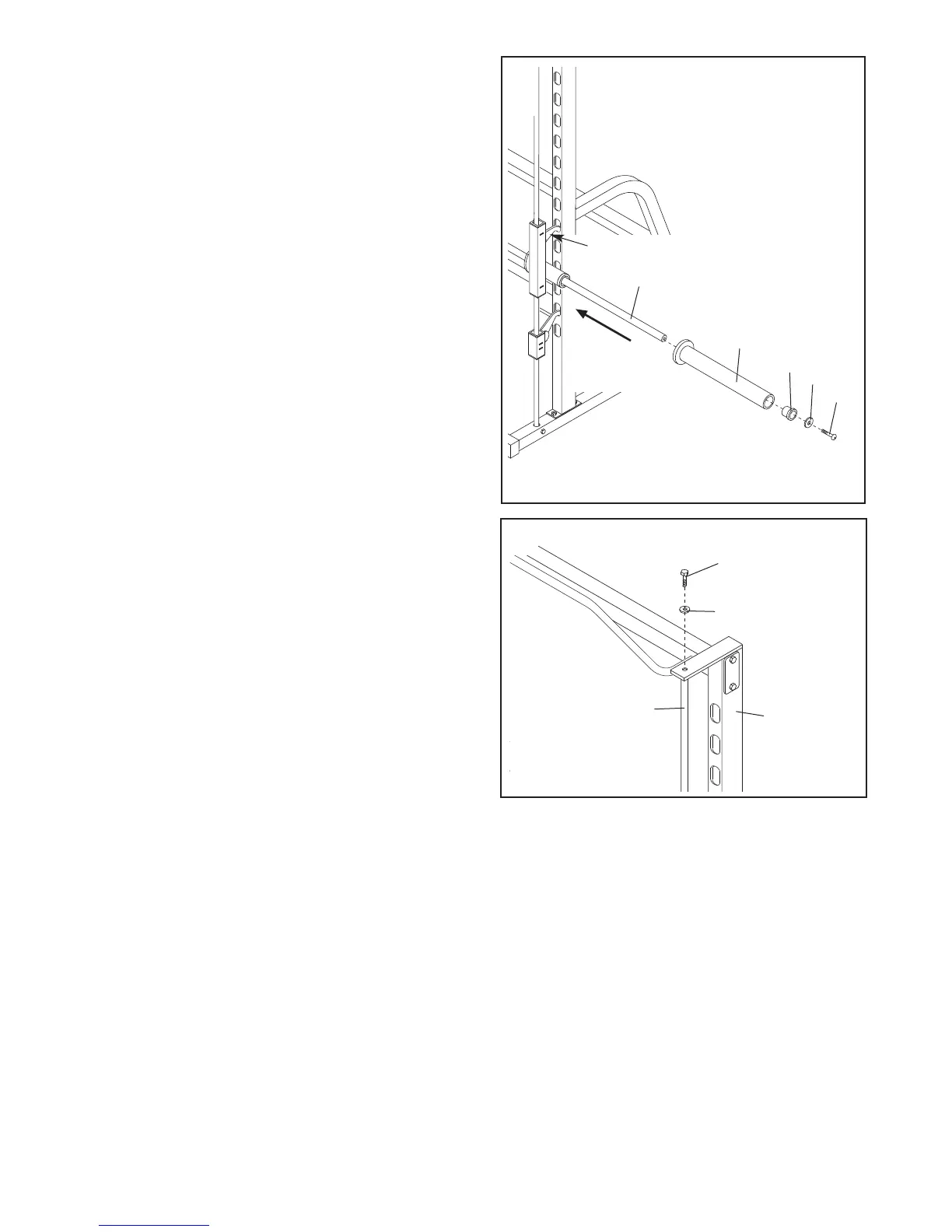

12. Attach the upper end of one of the Weight Guides
(11) to the bracket on the Upright (1) with an M8 x
30mm Bolt (22) and an M8 Washer (35).
Attach the other Weight Guide (not shown) to the
other Upright (not shown) in the same manner.
Tighten all of the nylon locknuts used in steps 1
to 10.
13. Make sure that all parts are properly tightened
before you use the weight rack. The use of all
remaining parts will be explained in Adjusting the
Weight Rack starting on the following page.
22
11
35
1
12
11. Note: If you are not planning to use Olympic
weights with the weight rack, centre the Barbell
(21), and tighten the M8 x 20mm Screws (33) used
in step 9. Then proceed to step 12. Keep the two
Weight Adapters (19) in a safe place in case you
need them in the future.
Fully engage the indicated hook on both sides of
the weight rack before beginning this step.
Insert a 48mm Bushing (30) into the end of a Weight
Adapter (19). With a second person holding the
Barbell (21) so that it cannot turn, use the hex key to
secure the Weight Adapter to the Barbell with a Large
Washer (28) and an M10 x 25mm Button Head Bolt
(27).
Note: The Large Washer must fit into the
indentation in the 48mm Bushing in the Weight
Adapter.
Pull the remaining length of the Barbell (21) in the
direction shown. Next, tighten the M8 x 20mm
Screws (33) used in step 9. Attach the other Weight
Adapter (19) to the other end of the Barbell (21) in the
same manner.
19
21
Hook
28
30
27
11
To Next Page
