10. See step 6. Tighten the four M10 x 25mm
Screws (92).
Untie and discard the wire tie on the Upper
Wire (110).
Have a second person hold the Console (7) near
the Upright (4). Connect the Upper Wire (110) in
the Upright to the matching wire or receptacle on
the back of the Console.
If you do not connect the Upper Wire (110)
properly, the Console (7) may become
damaged when you use the elliptical. If the
connector on the Upper Wire does not slide eas-
ily and snap into place, turn the connector and
try again.
Insert the excess wire into the Upright (4).

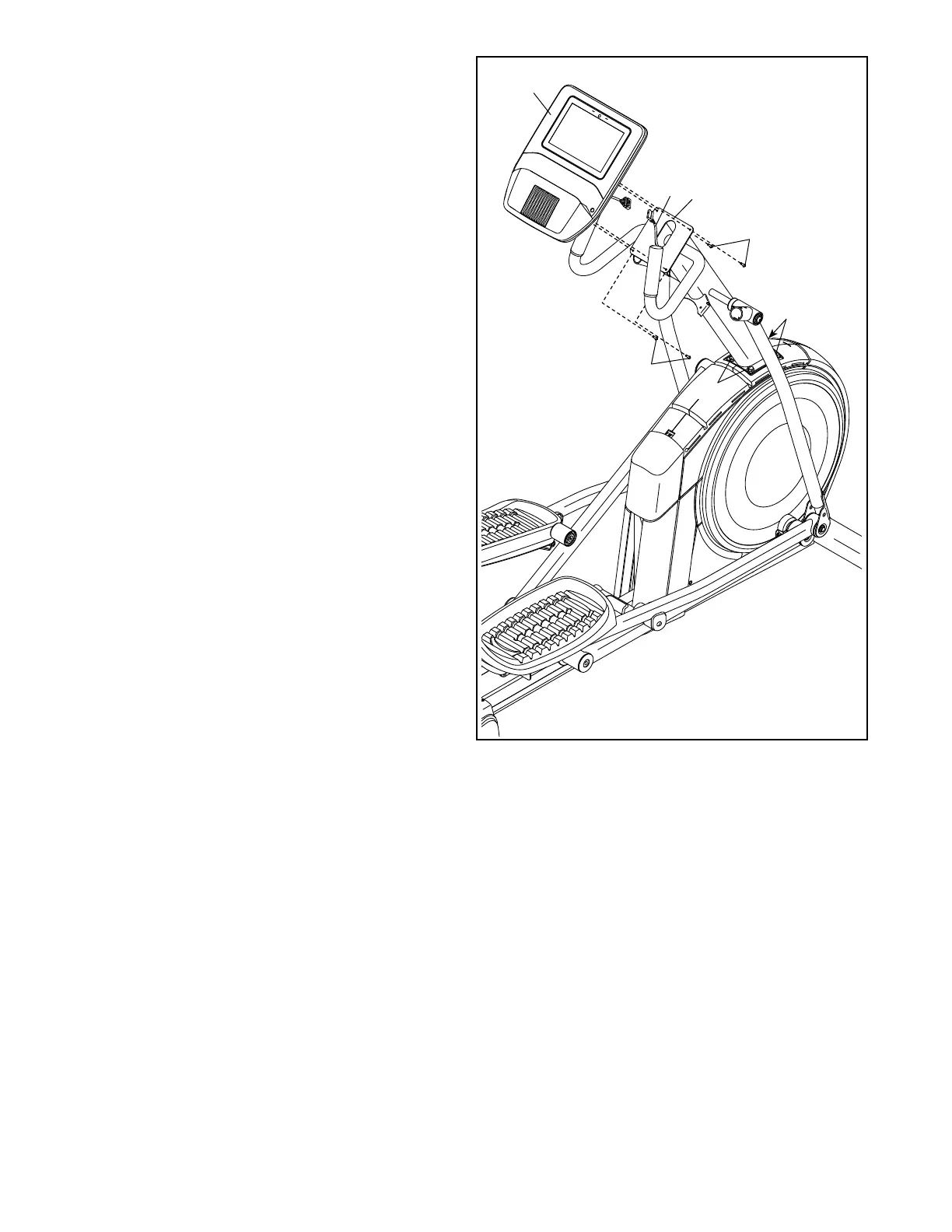

Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four
M4 x 16mm Screws (101); start all the Screws,
and then tighten them.
101
4
110
101
92
92
Avoid pinching
the wires
To Next Page
