35
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback,
the reed switch should be adjusted. To adjust the
reed switch, first press the power switch to the off
position and unplug the power cord.

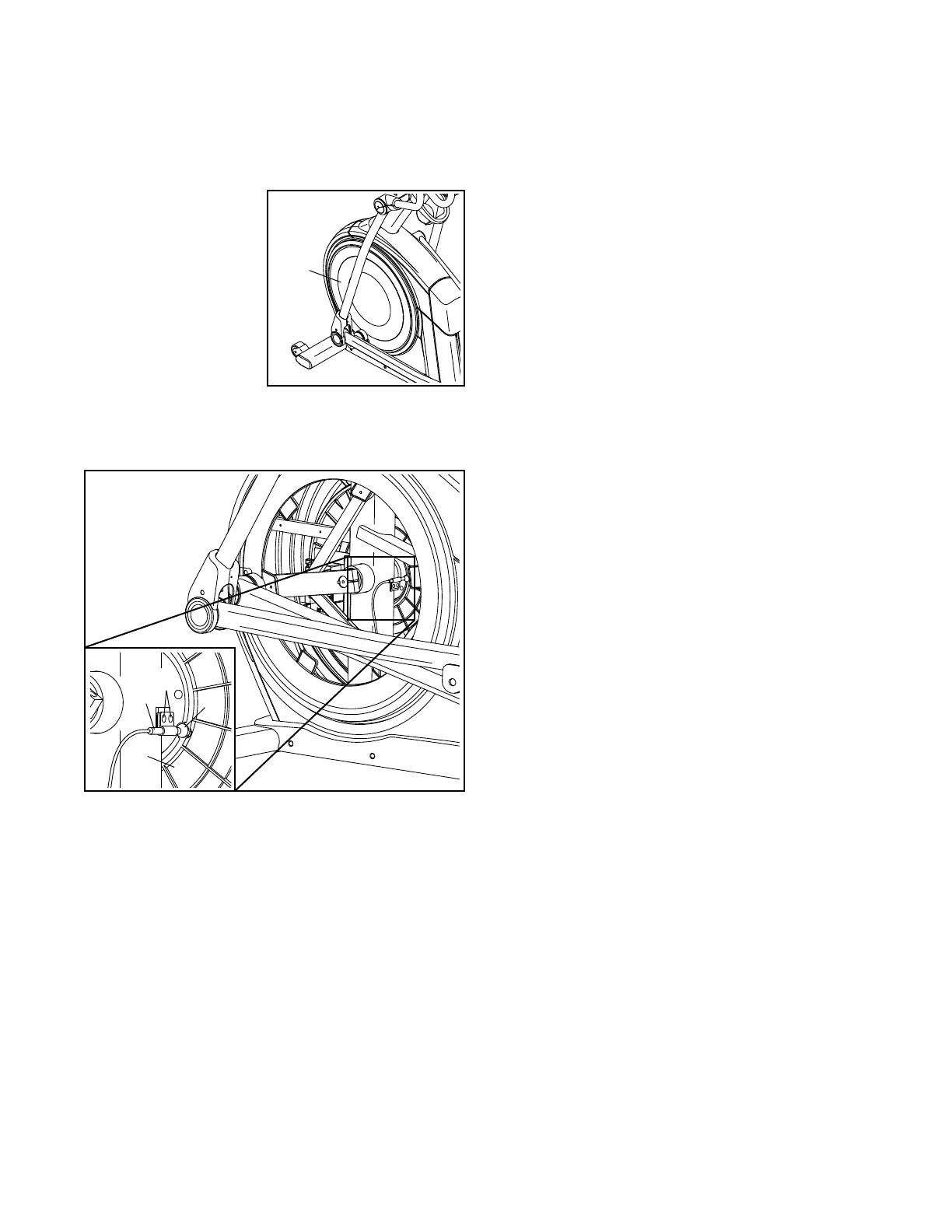

Next, using a stan-
dard screwdriver,
carefully pry off the
left Disc (71).
Next, locate the Reed Switch (38). Turn the Pulley (19)
until a Magnet (43) is aligned with the Reed Switch.
Next, slightly loosen the indicated two M4 x 12mm
Self-tapping Screws (50). Slide the Reed Switch (38)
slightly closer to or away from the Magnet (43), and
then retighten the Self-tapping Screws.
Then, plug in the power cord, press the power switch,
and rock the Pulley (19) forward and backward just
enough that the Magnet (43) passes the Reed Switch
(38) repeatedly. Repeat these actions until the console
displays correct feedback.
When the reed switch is correctly adjusted, reattach
the left disc, plug in the power cord, and press the
power switch.
71
19
43
50
38
