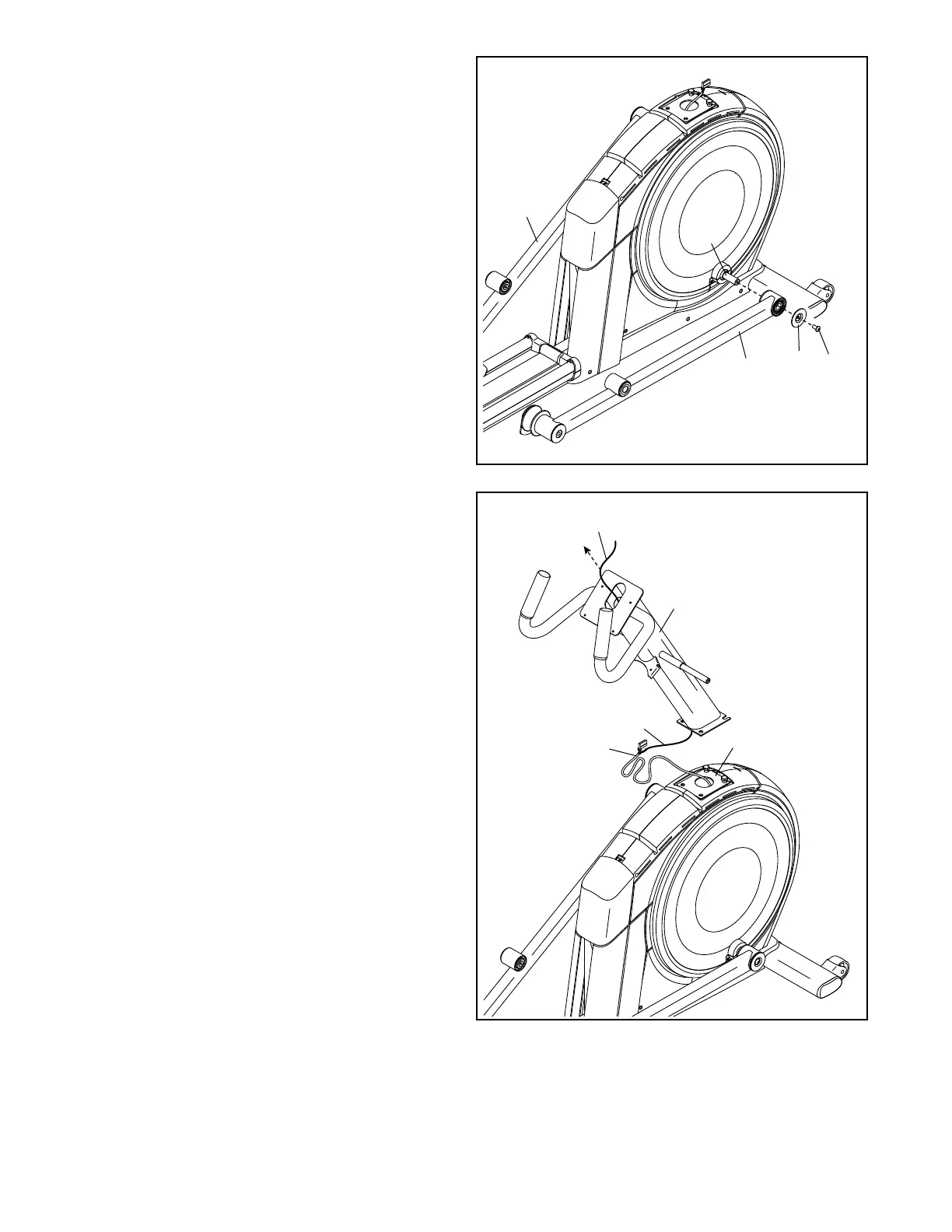

4. Identify the Right Roller Arm (59), orient it as
shown, and slide it onto the right Crank Arm (20).
Attach the Right Roller Arm (59) with an
M8 x 20mm Screw (95) and a Crank Cover (77).
Repeat this step for the Left Roller Arm (45).
20
5
4
110
A
1
A
5. Orient the Upright (4) as shown. Have a second
person hold the Upright near the Frame (1).
Locate the wire tie (A) in the lower end of the
Upright (4). Tie the wire tie to the Upper Wire
(110) as shown. Then, pull the upper end of the
wire tie until the Upper Wire is routed through
the Upright.
Tip: To prevent the Upper Wire (110) from
falling into the Upright (4), secure the Upper
Wire with the wire tie (A).
