10

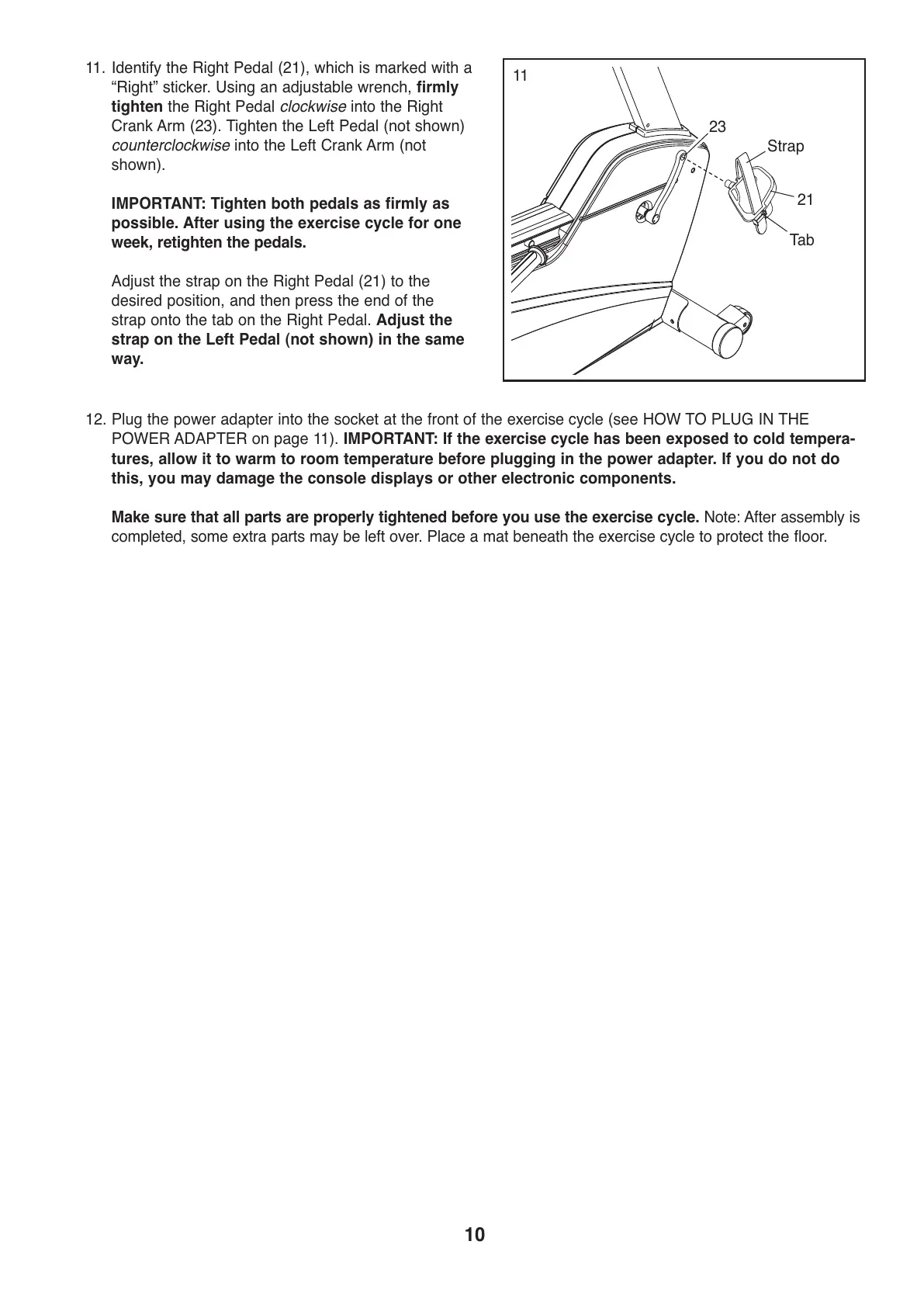

11. Identify the Right Pedal (21), which is marked with a
“Right” sticker. Using an adjustable wrench, firmly
tighten the Right Pedal clockwise into the Right
C
rank Arm (23). Tighten the Left Pedal (not shown)
counterclockwise into the Left Crank Arm (not
shown).
IMPORTANT: Tighten both pedals as firmly as
possible. After using the exercise cycle for one
week, retighten the pedals.
Adjust the strap on the Right Pedal (21) to the
desired position, and then press the end of the
strap onto the tab on the Right Pedal. Adjust the
strap on the Left Pedal (not shown) in the same
way.
11
12. Plug the power adapter into the socket at the front of the exercise cycle (see HOW TO PLUG IN THE
POWER ADAPTER on page 11). IMPORTANT: If the exercise cycle has been exposed to cold tempera-
tures, allow it to warm to room temperature before plugging in the power adapter. If you do not do
this, you may damage the console displays or other electronic components.
Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
2
1
T
ab
S
trap
2
3
