9

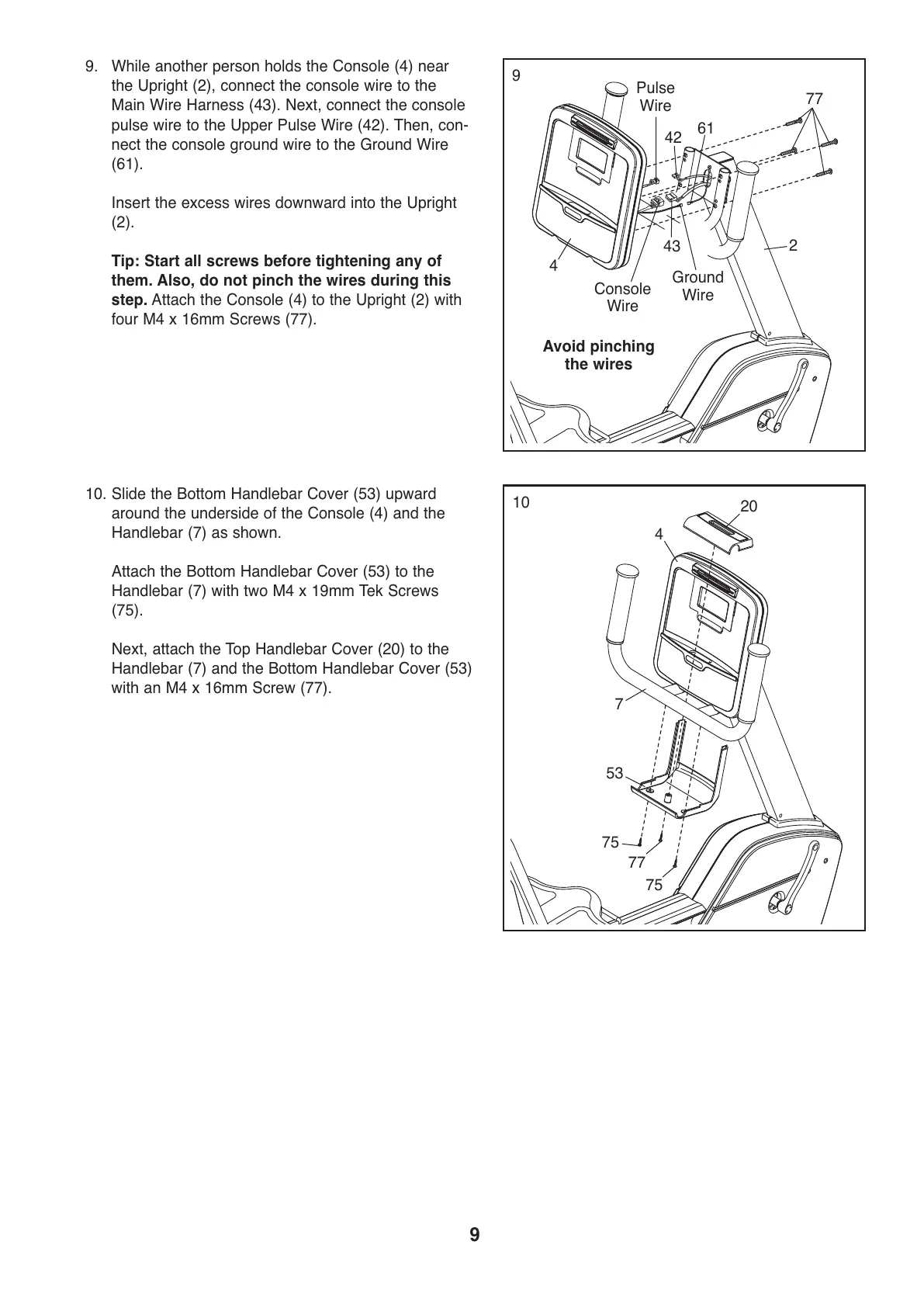

9. While another person holds the Console (4) near
the Upright (2), connect the console wire to the
Main Wire Harness (43). Next, connect the console
p
ulse wire to the Upper Pulse Wire (42). Then, con-
nect the console ground wire to the Ground Wire
(
61).
Insert the excess wires downward into the Upright
(2).
Tip: Start all screws before tightening any of
them. Also, do not pinch the wires during this
step. Attach the Console (4) to the Upright (2) with
four M4 x 16mm Screws (77).
9
42
Console
Wire
Ground
Wire
Pulse
W
ire
4
77
2
43
61
7
4
20
75
75
77
53
10
10. Slide the Bottom Handlebar Cover (53) upward
around the underside of the Console (4) and the
Handlebar (7) as shown.
Attach the Bottom Handlebar Cover (53) to the
Handlebar (7) with two M4 x 19mm Tek Screws
(75).
Next, attach the Top Handlebar Cover (20) to the
Handlebar (7) and the Bottom Handlebar Cover (53)
with an M4 x 16mm Screw (77).
Avoid pinching
the wires
