8

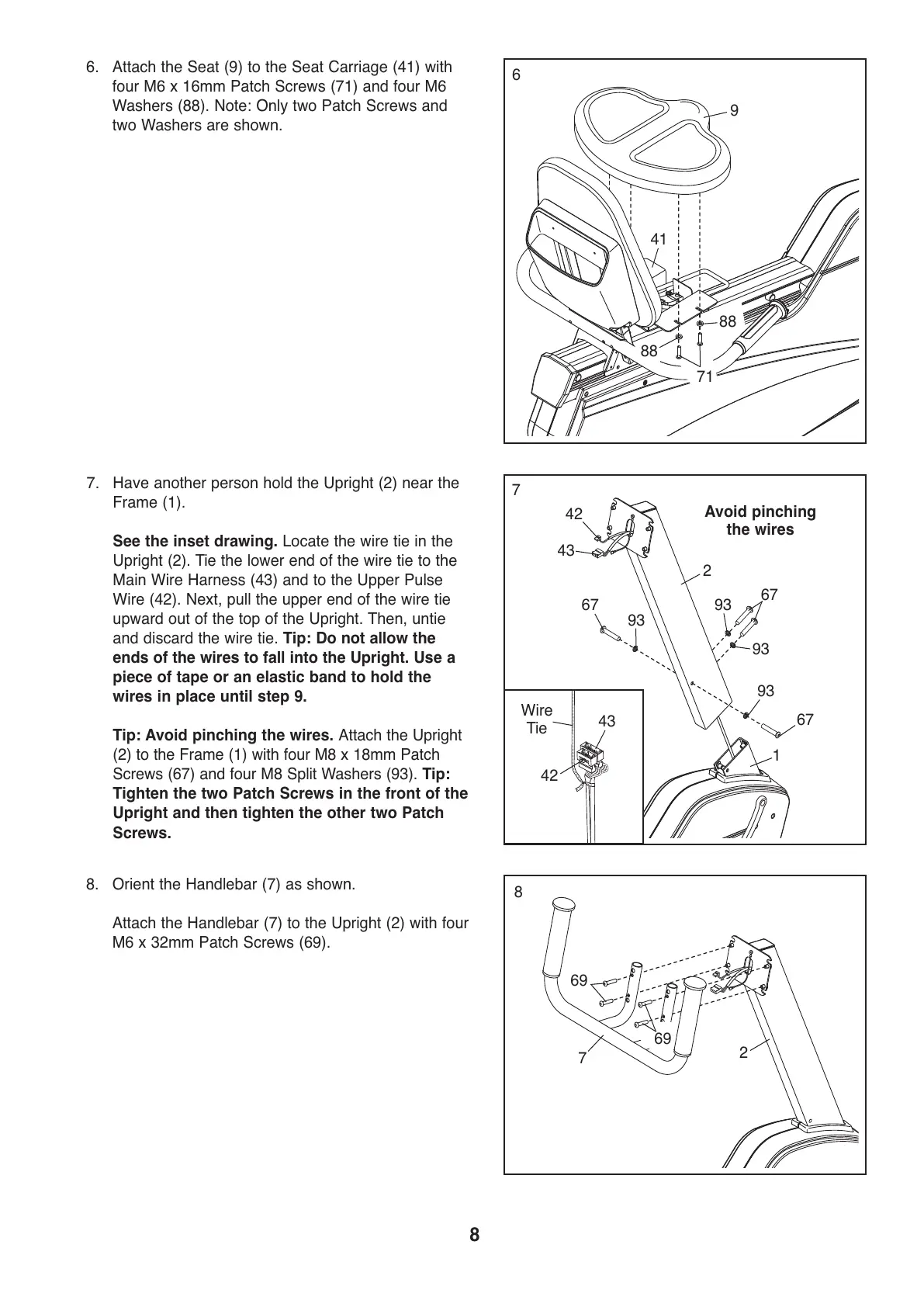

6. Attach the Seat (9) to the Seat Carriage (41) with
four M6 x 16mm Patch Screws (71) and four M6
Washers (88). Note: Only two Patch Screws and
t
wo Washers are shown.
6
41
9
71
88
88
8. Orient the Handlebar (7) as shown.
Attach the Handlebar (7) to the Upright (2) with four
M6 x 32mm Patch Screws (69).
7
69
2
8
69
7. Have another person hold the Upright (2) near the
Frame (1).
See the inset drawing. Locate the wire tie in the
Upright (2). Tie the lower end of the wire tie to the
Main Wire Harness (43) and to the Upper Pulse
Wire (42). Next, pull the upper end of the wire tie
upward out of the top of the Upright. Then, untie
and discard the wire tie. Tip: Do not allow the
ends of the wires to fall into the Upright. Use a
piece of tape or an elastic band to hold the
wires in place until step 9.
Tip: Avoid pinching the wires. Attach the Upright
(2) to the Frame (1) with four M8 x 18mm Patch
Screws (67) and four M8 Split Washers (93). Tip:
Tighten the two Patch Screws in the front of the
Upright and then tighten the other two Patch
Screws.
7
2
67
67
67
1
93
93
93
93
43
42
Avoid pinching
the wires
42
43
Wire
Tie
To Next Page
