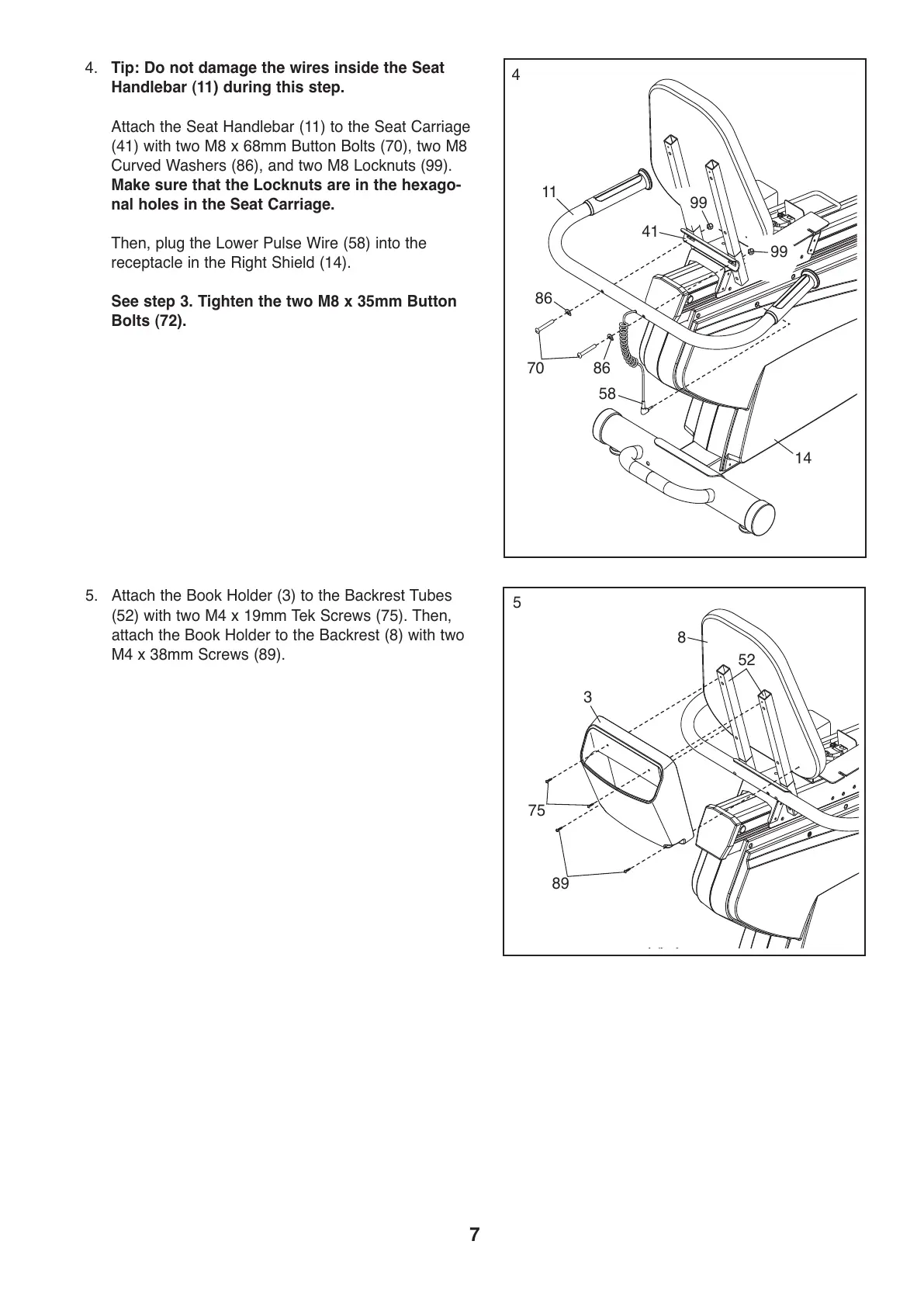

4. Tip: Do not damage the wires inside the Seat
Handlebar (11) during this step.
Attach the Seat Handlebar (11) to the Seat Carriage
(41) with two M8 x 68mm Button Bolts (70), two M8
Curved Washers (86), and two M8 Locknuts (99).
Make sure that the Locknuts are in the hexago-
nal holes in the Seat Carriage.
Then, plug the Lower Pulse Wire (58) into the
receptacle in the Right Shield (14).
See step 3. Tighten the two M8 x 35mm Button
Bolts (72).
4
11
70
86
86
41
99
58
14
99
5. Attach the Book Holder (3) to the Backrest Tubes
(52) with two M4 x 19mm Tek Screws (75). Then,
attach the Book Holder to the Backrest (8) with two
M4 x 38mm Screws (89).
5
89
75
8
3
52
To Next Page
