9. Have a second person hold the Handlebar Post
(6) near the Frame (2).
Locate the long wire tie (D) in the Handlebar
Post (6). Tie the lower end of the long wire tie to
the Main Wire (68).
Next, locate the middle of the long wire tie
(D) in the access hole (E) in the Handlebar
Carriage (99). Pull the long wire tie upward in the
indicated location (F) until the end of the Main
Wire (68) is in the access hole.

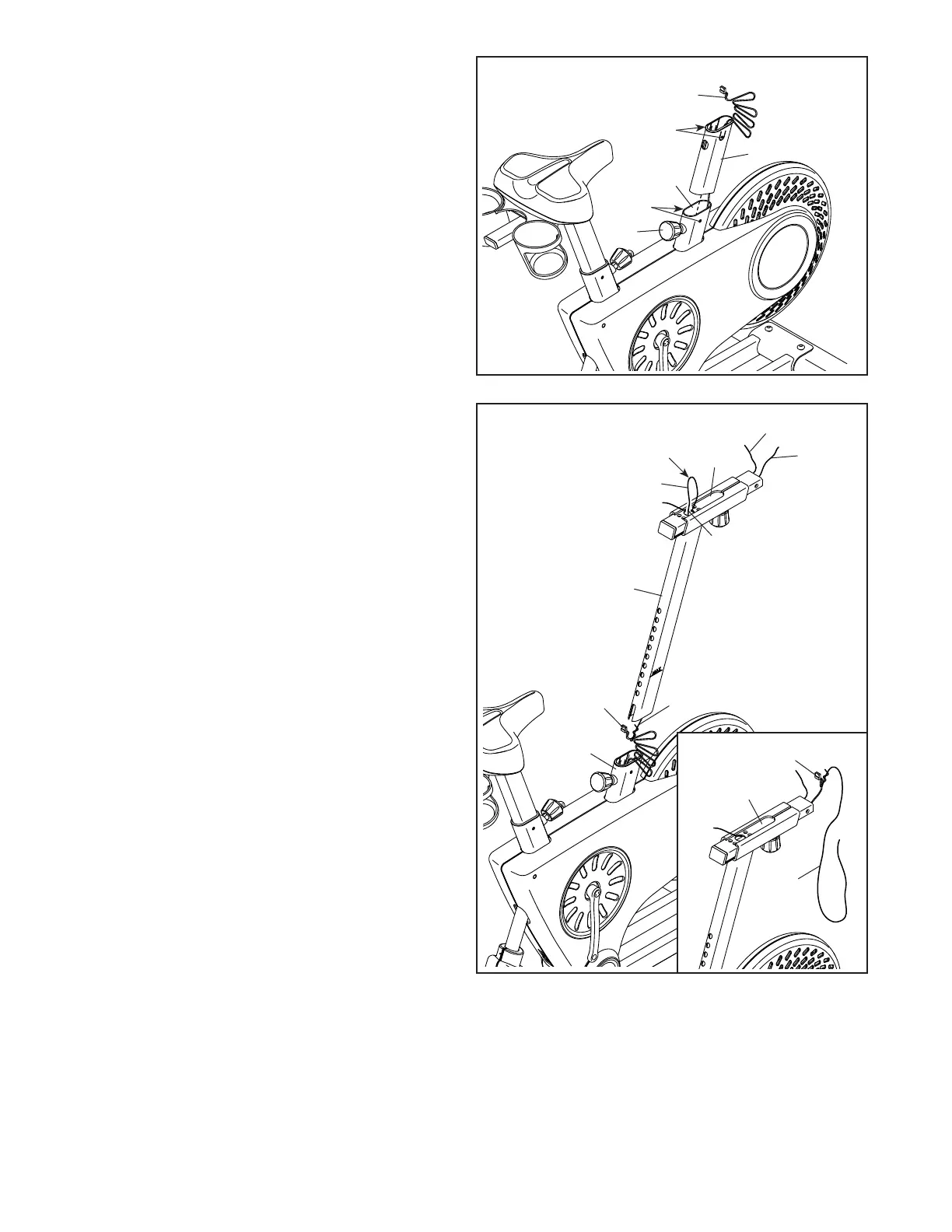

See the inset drawing. Next, pull the free end
of the long wire tie (D) until the Main Wire (68) is
routed through the Handlebar Carriage (99) as
shown. Then, untie and discard the long wire tie;
do not remove the short wire tie (G).
99
68
D
D
D
E
F
G
6
99
2
68
D
8
2
47
42
68
8. Orient a Post Bushing (42) as shown and hold
it near the Frame (2). Insert the Main Wire (68)
upward through the Post Bushing.
Next, locate the Post Knob (47) on the front of
the Frame (2). Loosen and pull the Post Knob,
and then insert the Post Bushing into the Frame.
Make sure that the tabs (A) on the Post
Bushing are in the holes (B) in the Frame.
Then, release the Post Knob (47) into the hole in
the Post Bushing (42).
A
B
To Next Page
