12
14
9
14. Have a second person hold the Console (9) near
the Console Bracket (33).
Connect the console wires to the Main Wire (68),
to the Ground Wire (111), and to the two wires (I)
from the Handlebar (7); make sure to connect
the console wire that has an “R” tag to the
wire that has an “R” tag. Insert the excess wire
into the Console Bracket (33).
Tip: Avoid pinching the wires. Attach the
Console (9) to the Console Bracket (33) with four
M4 x 16mm Screws (34); start all the Screws,
and then tighten them.
Avoid pinching
the wires
33
111
68
I
34
7
13. Hold the Console Bracket (33) near the
Handlebar Carriage (99). Insert the Main Wire
(68) and the two wires (I) from the Handlebar (7)
upward through the Console Bracket.
Tip: Avoid pinching the wires. Attach the
Console Bracket (33) to the Handlebar Carriage
(99) with three M6 x 16mm Screws (107); start
all the Screws, and then tighten them.
Then, press the Wire Cover (32) onto the
Console Bracket (33).
13
33
7
99
107
107
32
Avoid pinching
the wires
I
68

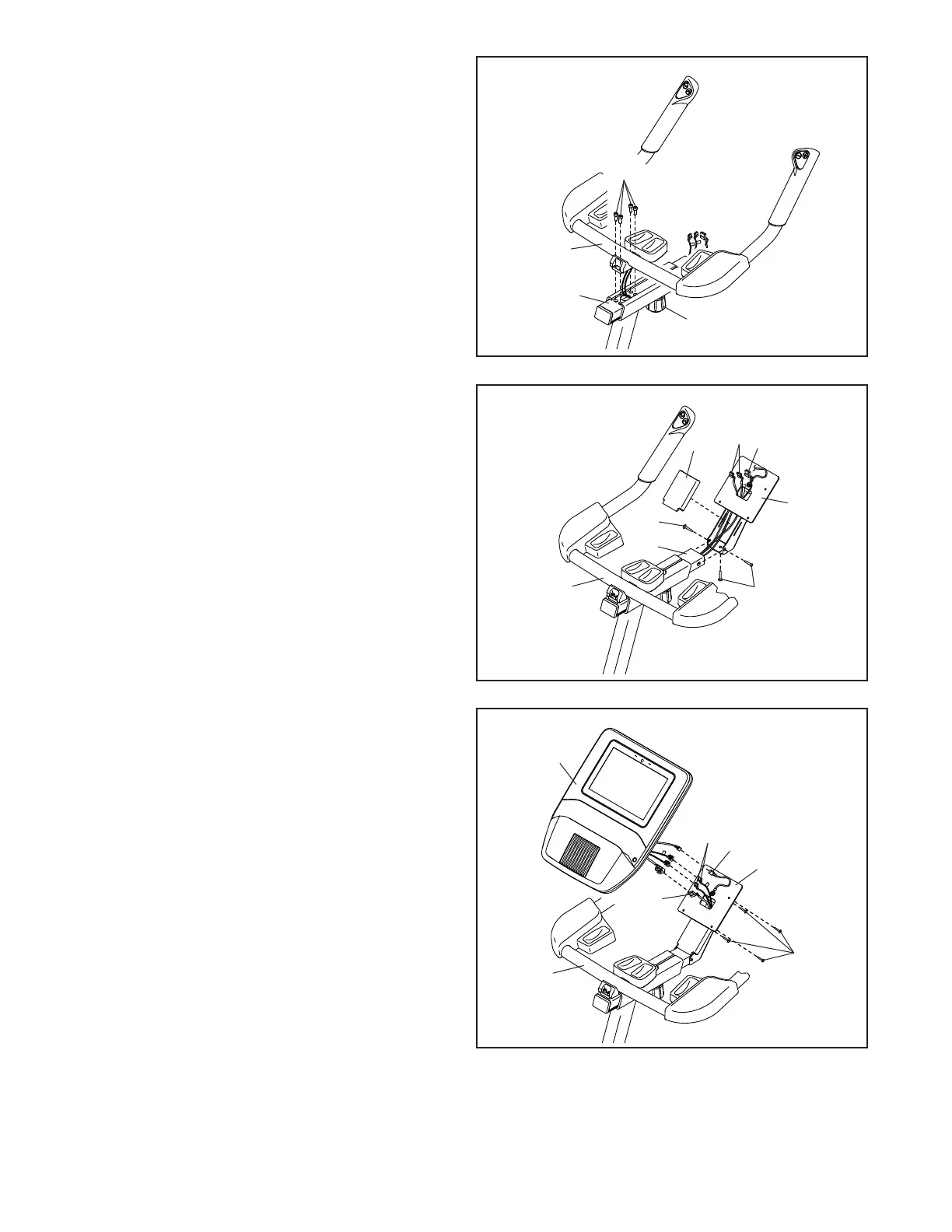

12. Loosen the Handlebar Knob (95). Next, slide
the Handlebar Carriage (99) forward as far as
possible. Then, tighten the Handlebar Knob.
Tip: Avoid pinching the wires. Attach the
Handlebar (7) to the Handlebar Carriage (99)
with four M6 x 20mm Screws (103); start all the
Screws, and then tighten them.
12
99
95
7
103
Avoid pinching
the wires
To Next Page
