9
7. Insert the wires into the Left Upright (89) as you
set the console assembly on the Left Upright
and the Right Upright (90). Be careful not to
pinch the Upright Wire (84).
Attach the console assembly with four 5/16" x
1 1/2" Bolts (5) and four 5/16" Star Washers
(10). Start all four Bolts, and then tighten
each of them.
7
89
90
5
10
84

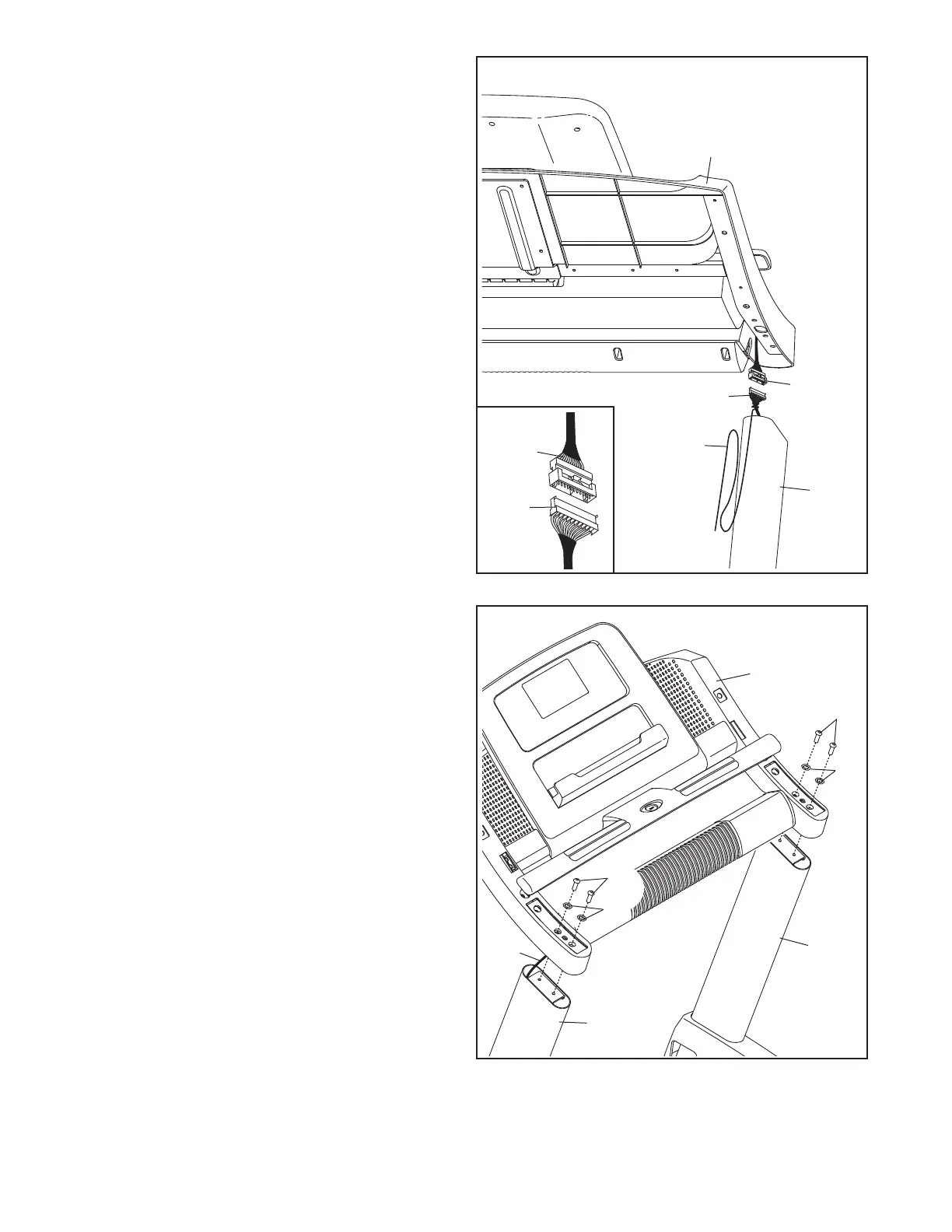

6. With the help of a second person, hold the con-
sole assembly near the Left Upright (89).
C
onnect the Upright Wire (84) to the console
wire. See the inset drawing. The connectors
s
hould slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
Console
Assembly
Console
Wire
Wire
Tie
89
84
84
Console
Wire
6
10
5
Console
Assembly
To Next Page
