9

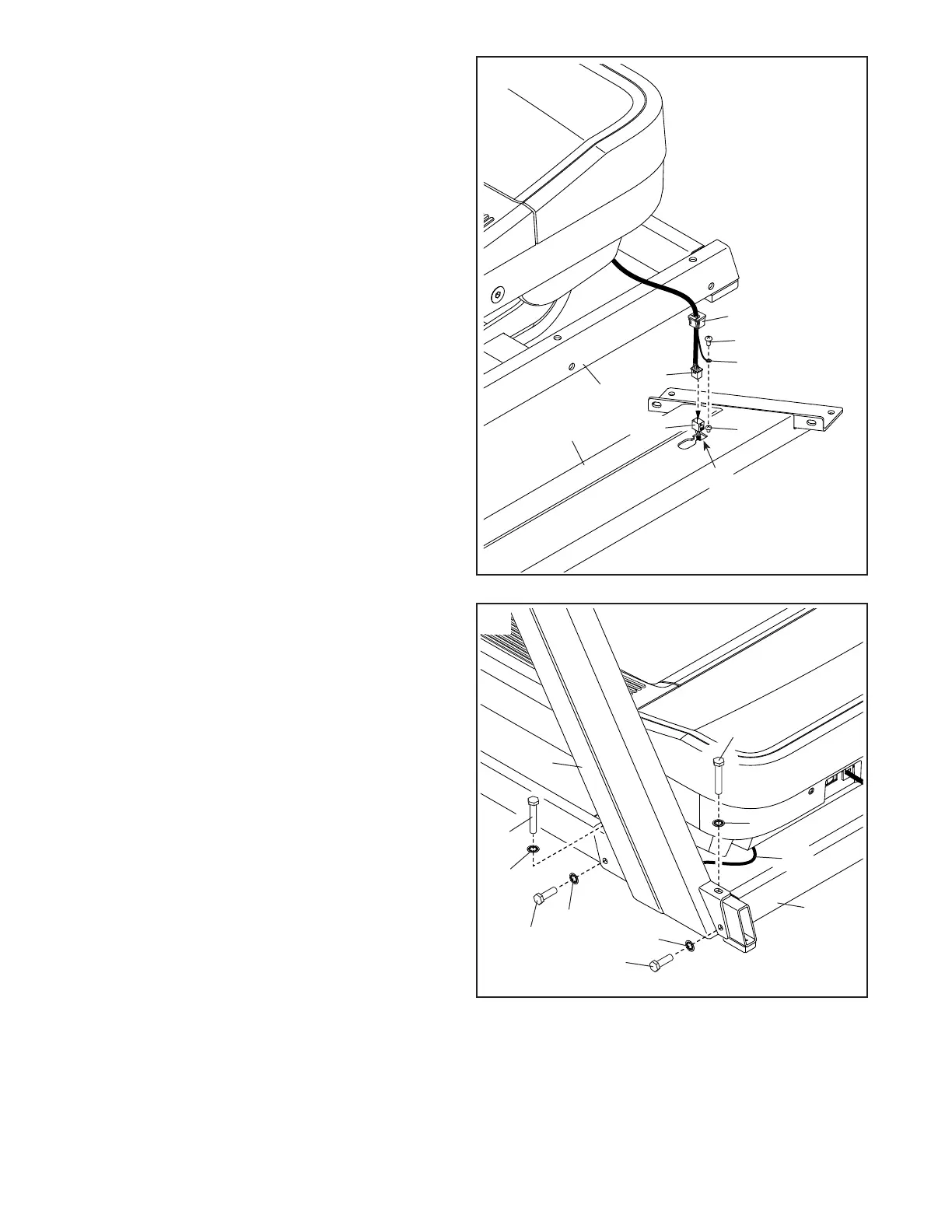

2. Make sure that the power cord is unplugged.
Identify the Right Upright (114), and lay it near
the Base (118) as shown.
Next, connect the Belly Pan Wire (96) to the
Upright Wire (120) in the Right Upright (114).
The connectors should slide together eas-
ily and snap into place with an audible click.
If they do not, turn one connector and try
again.
Next, insert the Wires (96, 120) into the indicated
square hole (A), and press the Grommet (97)
into the square hole.
Then, remove and discard the indicated
screw (B), and attach the ground wire (C) to the
Right Upright (114) with a Ground Screw (5).
B
97
96
118
114
5
C
3. Have a second person hold the Right Upright
(114) against the Base (118). Make sure not to
pinch the Belly Pan Wire (96).
Insert two 3/8" x 2 3/4" Screws (2) with two 3/8"
Star Washers (9) into the top of the bracket on
the Right Upright (114), and partially tighten the
Screws into the Base (118); do not fully tighten
the Screws yet.
Then, partially tighten two 3/8" x 1 1/4" Screws
(1) with two 3/8" Star Washers (9) into the side
of the bracket on the Right Upright (114); do not
fully tighten the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
3
1
9
9
114
118
2
2
9
120
A
1
9
96
2
