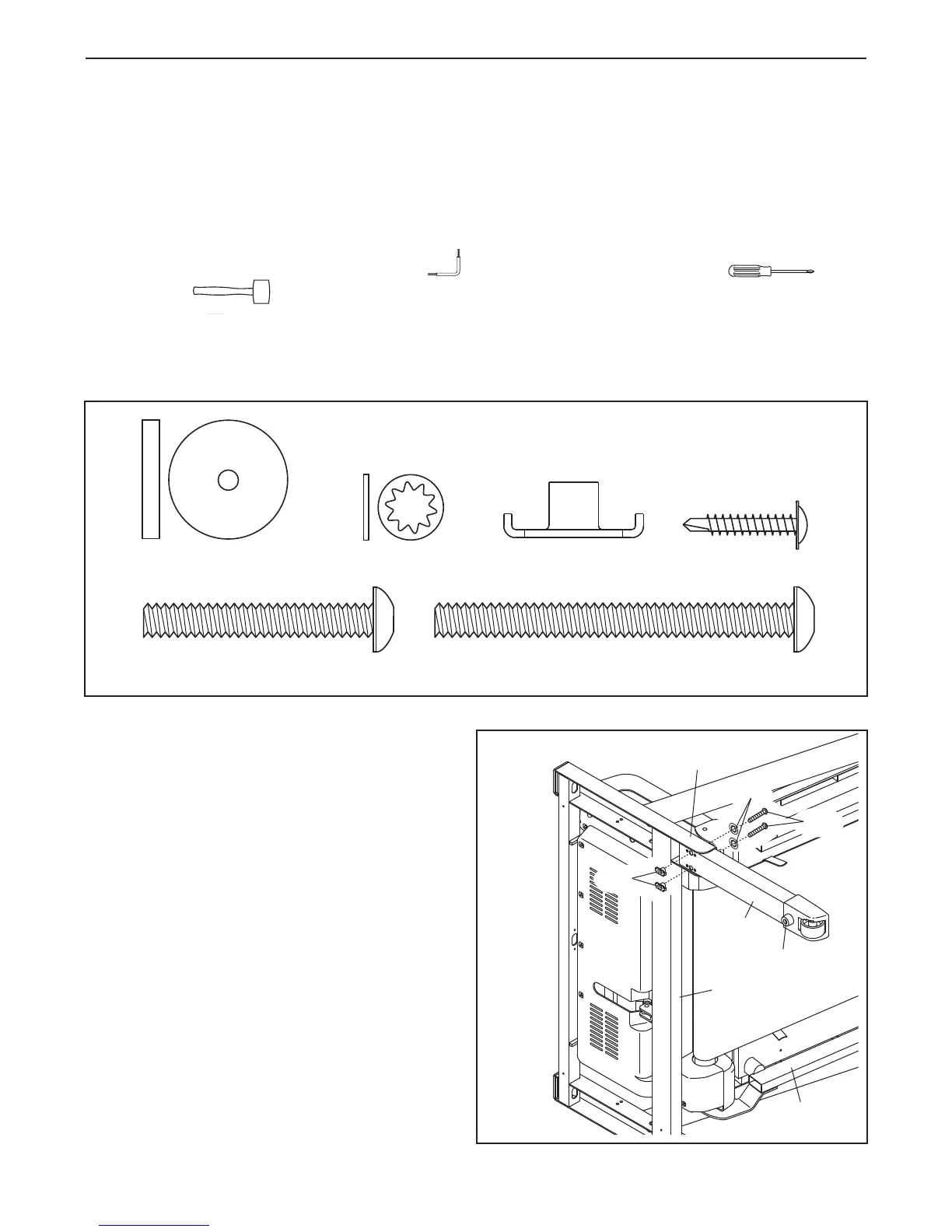

1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its side as shown. Partially fold
the Frame (55) so that the treadmill is more sta-
ble.
Do not fully fold the Frame until the
treadmill is completely assembled.
Insert an Extension Leg (97) into the indicated
bracket on the base of the Uprights (85). Make
sure that the Extension Leg is turned so the Base
Pad (81) is on the side shown. If necessary, use
a rubber mallet to align the holes in the
Extension Leg with the holes in the bracket.
Attach the Extension Leg (97) with two Extension
Leg Bolts (87), two Star Washers (67), and two
Extension Leg
Nuts (91) as shown. Firmly
tighten the Extension Leg Bolts.
With the help of a second person, carefully tip the
treadmill onto its other side.
ASSEMBLY
A
ssembly requires two persons.
S
et the treadmill in a cleared area and remove all packing materials.
D
o not
dispose of the packing materials until assembly is completed.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrench and your own phillips screwdriver , and
rubber mallet . For help identifying the assembly hardware, see the drawings below.
The num-
ber in parentheses below each drawing is the key number of the part, from the PART LIST on pages 26 and 27.
The number following the parentheses is the quantity needed for assembly.
Note: Some small parts may have
been pre-assembled. If a part is not in the parts bag, check to see if it has been pre-assembled. To avoid
damaging plastic parts, do not use power tools for assembly.
6
1” Tek Screw (82)–4
Console Bolt (72)–4
3
Extension Leg Bolt (87)–4
Star Washer (67)–8
Plastic Washer
(101)–4
Extension Leg
Nut (91)–4
E
85
55
Bracket
97
91
87
1
81
67
