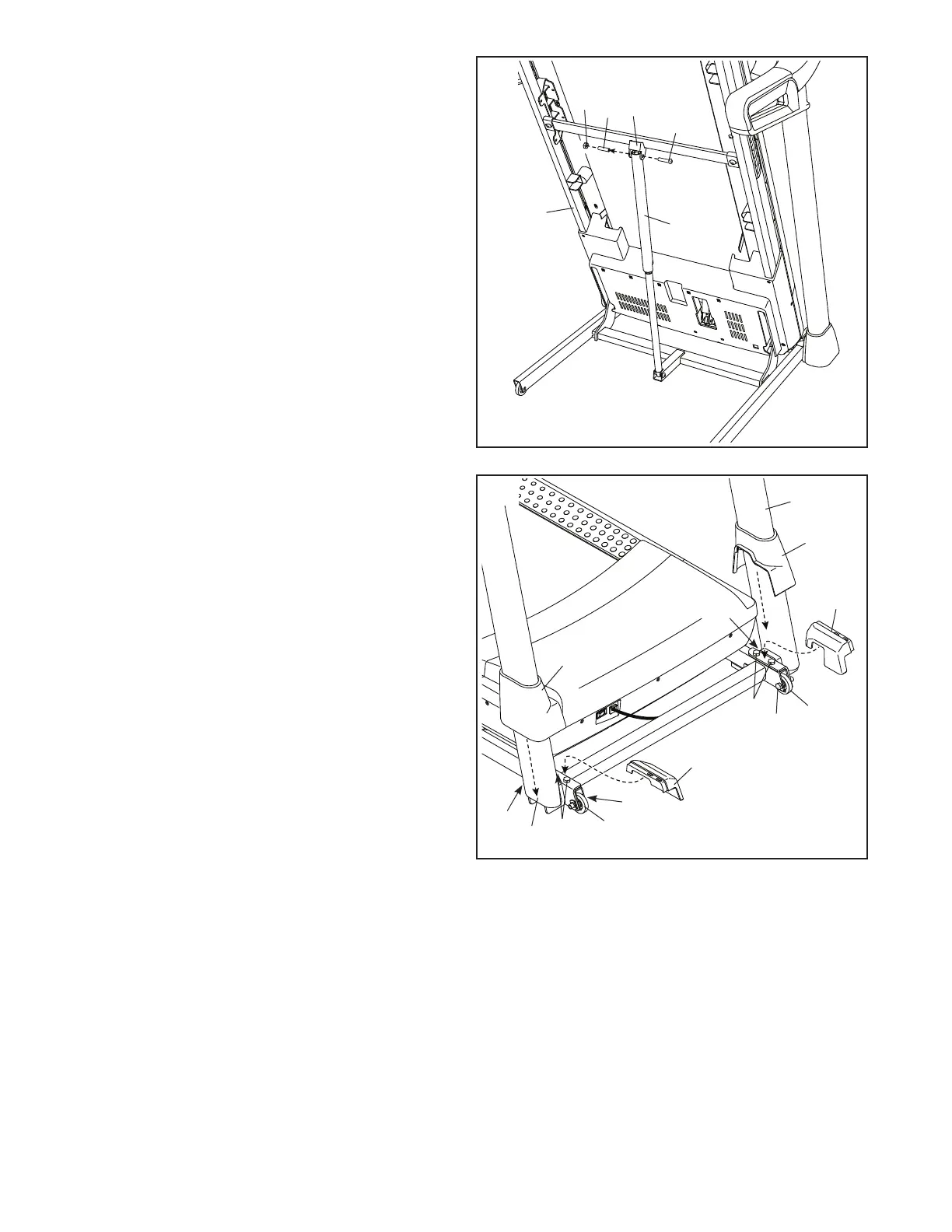

20. Firmly tighten the four 3/8" x 2 3/8" Screws
(7) and the two 3/8" x 1 1/4" Screws (63).
Next, tighten the two 3/8" x 1 3/4" Screws
(62); the Wheels (25) must turn freely.
Next, set the Left Inner Base Cover (99) onto the
lower end of the Left Upright (89). Slide the Left
Base Cover (82) downward and press it onto the
Left Inner Base Cover.
Then, set the Right Inner Base Cover (100) onto
the lower end of the Right Upright (90). Slide the
Right Base Cover (83) downward and press it
onto the Right Inner Base Cover.
99
83
82
62
89
7
7
63
62
100
63
20
90
25
25
21. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex key in a secure
place; the hex key is used to adjust the walking belt (see page 31). Note: Extra hardware may be included.
41
3
56
34
53
19
19. Remove the 5/16" Nut (34) and the 5/16" x
2 1/4" Bolt (3) from the bracket on the Latch
Crossbar (41).
Align the upper end of the Storage Latch (53)
with the bracket on the Latch Crossbar (41),
and insert the 5/16" x 2 1/4" Bolt (3) through the
bracket and the Storage Latch. This will push a
spacer (Q) out of the Storage Latch; discard
the spacer.
Next, tighten the 5/16" Nut (34) onto the 5/16" x
2 1/4" Bolt (3). Do not overtighten the Nut; the
Storage Latch (53) must be able to pivot.
Then, lower the Frame (56) (see HOW TO
LOWER THE TREADMILL FOR USE on
page 29).
