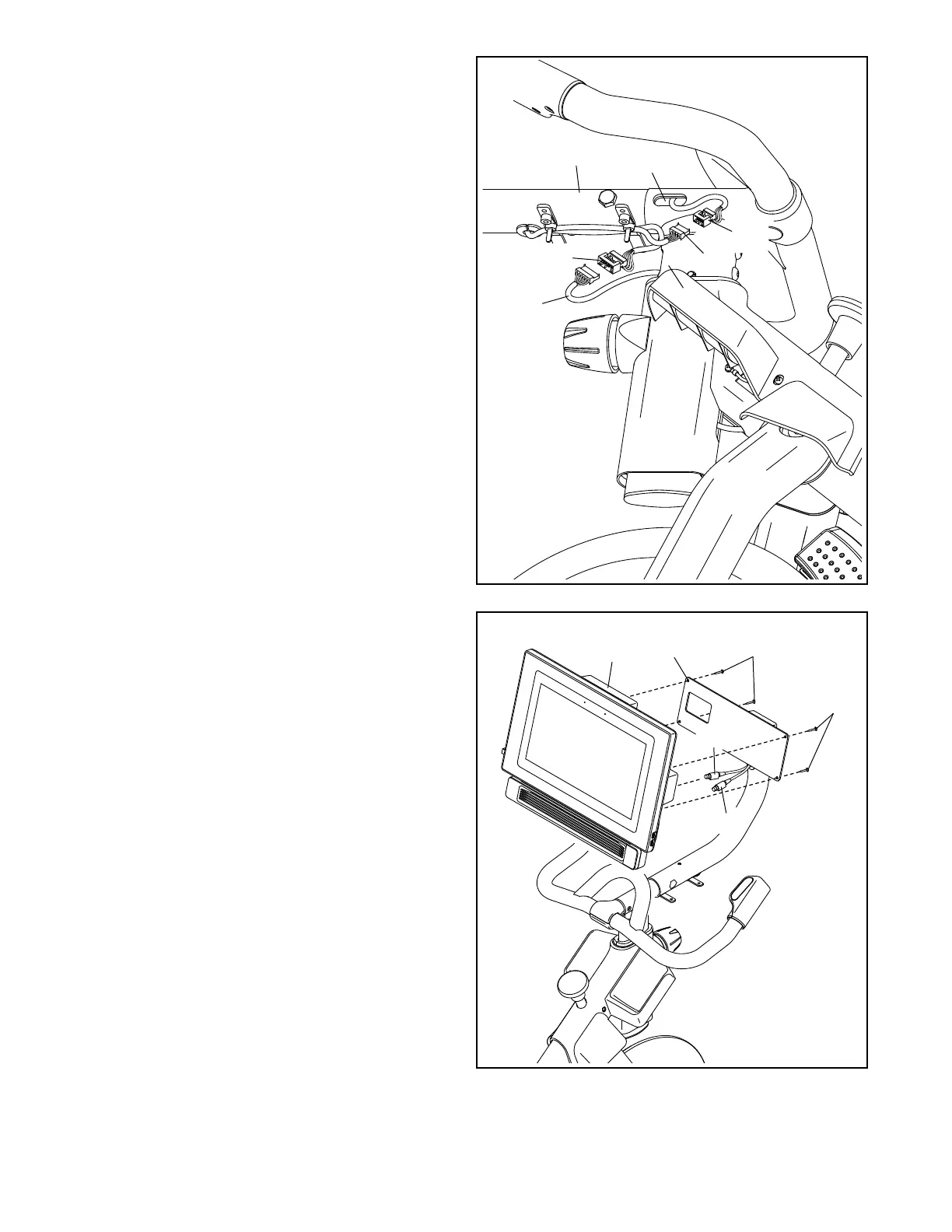

7. Look under the Console Support (8) and identify
the Upper Wire (123), which has a larger con-
nector than the Extension Wire (124).
Connect the Upper Wire (123) to the Lower Wire
(122) extending from the Handlebar Post (7).
Then, insert the connectors on both Wires into
the Handlebar Post.
Next, connect the Extension Wire (124) to the
Control Wire (125) extending from the Handlebar
(97). Then, insert the connectors on both Wires
into the Handlebar.
8
7
97
122
123
125
124
7
Note: This drawing is scaled to 94% compared to the
other assembly drawings and to the exploded drawing.
8. Have a second person hold the Console (10)
near the Console Bracket (11).
Plug the Upper Wire (123) and the Extension
Wire (124) into the receptacles on the back of
the Console (10); make sure to plug the Wire
marked with red into the receptacle marked
with red, and plug the Wire marked with yel-
low into the receptacle marked with yellow.
Tip: Avoid pinching the wires. If necessary,
tilt the Console Bracket (11) upward to make
this step easier. Attach the Console (10) to
the Console Bracket with four M4 x 16mm
Screws (83); start all the Screws, and then
tighten them.
Avoid pinching
the wires
8
83
11
10
83
123
124
