11

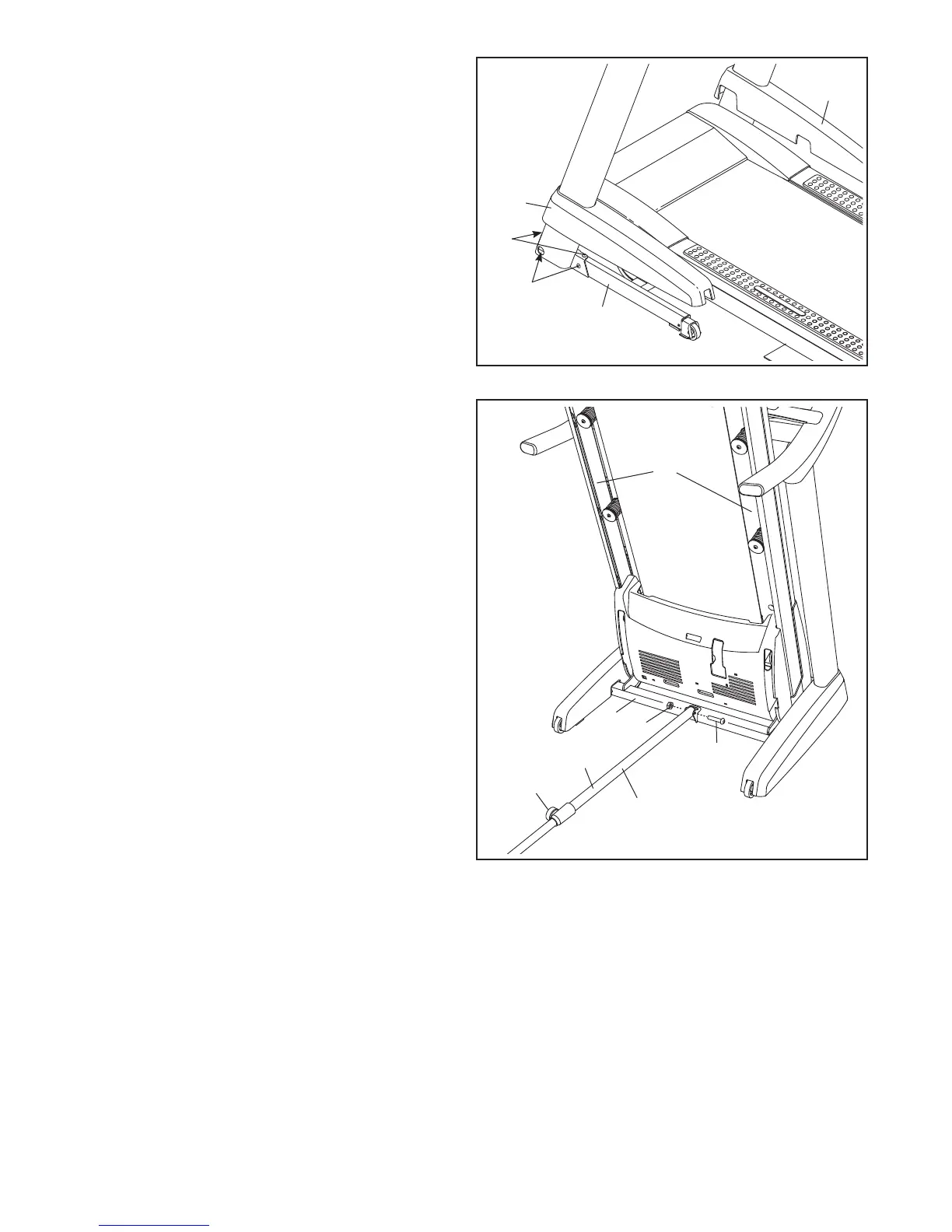

9. Firmly tighten the four 3/8" x 2 3/4" Screws (7),
and then tighten the four 3/8" x 1 1/4" Screws
(8) (only one side is shown).
Press the Left and Right Base Covers (92, 93)
onto the Base (97) until they snap into place.
9
93
8
92
97
7
10. Raise the Frame (56) to the position shown.
Have a second person hold the Frame until
step 12 is completed.
Orient the Storage Latch (53) so that the large
barrel and the latch knob are oriented as shown.
Attach the lower end of the Storage Latch (53) to
the Base (97) with a 3/8" x 2" Bolt (3) and a 3/8"
Nut (11).
10
53
Large
Barrel
56
Latch
Knob
11
3
97
