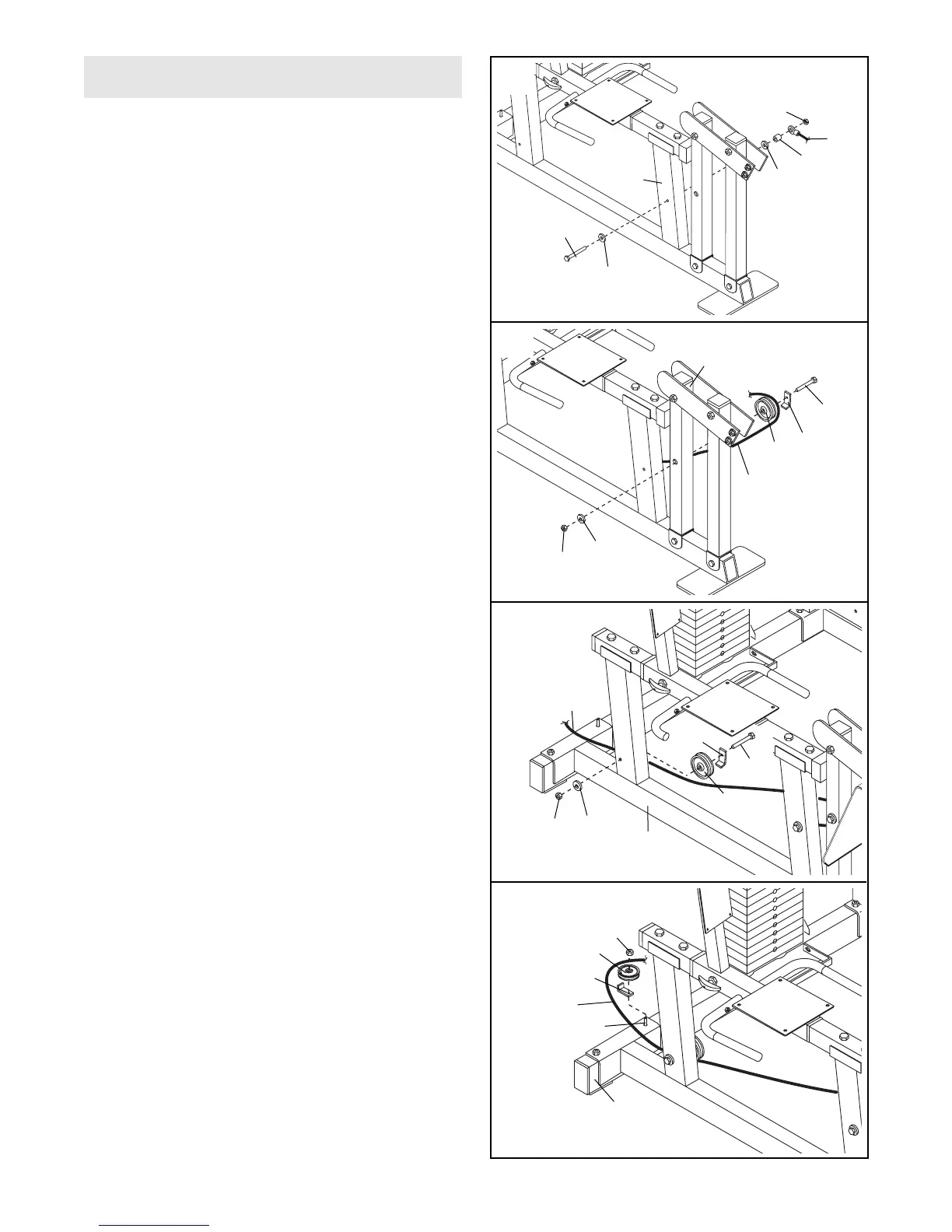

18. Route the Leg Press Cable (76) under a 4” Pulley
(35). Attach the Pulley and a Cable Trap (44) to
the Leg Press Base (84) with a 3/8” x 3 3/4” Bolt
(92), a 3/8” Washer (55), and a 3/8” Nylon
Locknut (50). Be sure that the Cable Trap (44)
is positioned to hold the Cable in the pulley
groove.
19. Wrap the Leg Press Cable (76) around a 4”
Pulley (35). Attach the Pulley and a Cable Trap
(44) to the 3/8” x 5” Carriage Bolt (82) in the
Stabilizer (5) with a 3/8” Nylon Locknut (50).
Be sure that the Leg Press Cable (76) is rout-
ed in the direction shown, and that the Cable
Trap (44) is positioned to hold the Cable in the
pulley groove.
17. Wrap the Leg Press Cable (76) up around a 4”
Pulley (35). Attach the Pulley and a Cable Trap
(44) to the Rear Leg Press Upright (97) with a 3/8”
x 3 3/4” Bolt (92), a 3/8” Washer (55), and a 3/8”
Nylon Locknut (50).
Be sure that the Leg Press Cable (76) is rout-
ed in the direction shown, and that the Cable
Trap (44) is positioned to hold the Cable in the
pulley groove.
17
55
44
97
35
76
50
18
44
84
76
55
92
50
19
76
50
35
82
5
44
16. Open the parts bags labeled “CABLE ASSEM-
BLY” and “4 PULLEYS.” Refer to the CABLE
DIAGRAM on page 21 to identify the cables
and for correct cable routing.
Locate the Leg Press Cable (76). Attach the Leg
Press Cable to the indicated hole in the Leg
Press Base (84) with a 3/8” x 3” Bolt (45), two
3/8” Washers (55), a 5/8” x 1/4” Bushing (90), and
a 3/8” Nylon Jamnut (63).
16
55
55
76
90
84
63
45
11
92
35
Cable Assembly
To Next Page
