6

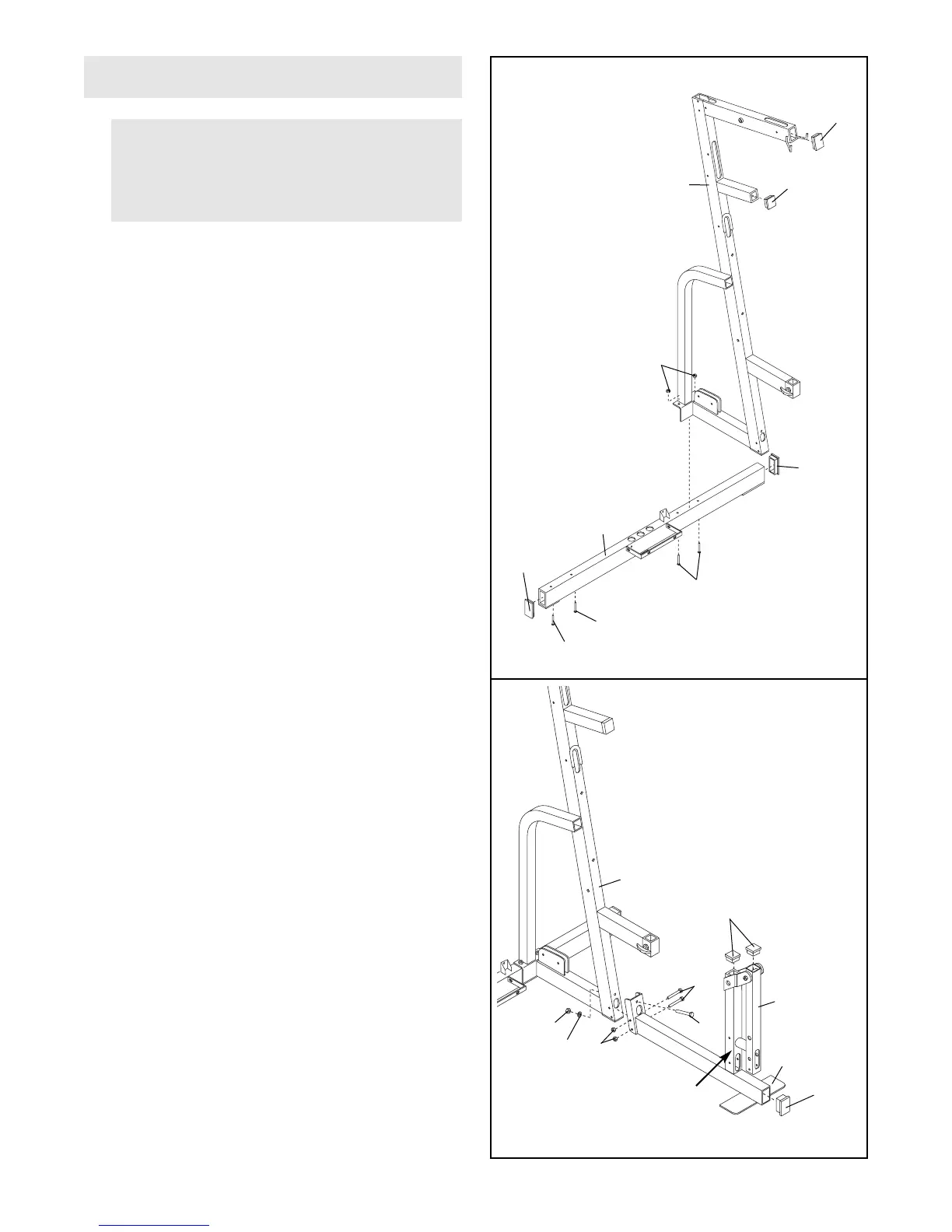

1.
Open the parts bag labeled “FRAME ASSEM-
BLY.”
Press two 2” x 3” Inner Caps (24) into the ends of
the Stabilizer (5). Press a 2” x 3” Inner Cap and a
2” Square Inner Cap (33) into the Main Upright
(3) in the indicated locations.
Insert three 3/8” x 3 3/4” Carriage Bolts (52) and
a 3/8” x 5” Carriage Bolt (82) into the indicated
holes in the Stabilizer (5).
Attach the Main Upright (3) to the Stabilizer (5)
with the two indicated 3/8” x 3 3/4” Carriage Bolts
(52) and two 3/8” Nylon Locknuts (50). Do not
tighten the Nylon Locknuts yet.
1
24
52
82
52
5
24
81
78
50
33
24
3
33
2. Press a 2” x 3” Inner Cap (24) into the end of the
Base (8). Press two 2” Square Inner Caps (33)
into the Leg Lever (29) and the front leg on the
Base. Note: Do not fully insert the 2” Square
Inner Cap into the Base; it will need to be
removed later to attach the Curl Post (not
shown).
Attach the Base (8) to the Main Upright (3) with a
3/8” x 4” Bolt (65), a 3/8” Washer (55), and a 3/8”
Nylon Locknut (50). The Bolt must be inserted
from the side shown. Do not tighten the Nylon
Locknut yet.
Slide two 5/16” x 3” Bolts (78) through the Base
(8) and the Main Upright (3), and hand tighten
two 5/16” Nylon Locknuts (81) onto the Bolts. Do
not tighten the Nylon Locknuts yet.
Before beginning assembly, make sure you
have read and understood the information
on page 5. This brief introduction will save
you much more time than it takes to read it.
2
65
50
55
24
29
8
Front
Leg
3
Frame Assembly
