Installation
A1-16
E 2000 Nordson Corporation
All rights reserved
41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
3. If you installed hoses for an externally circulating system, you must
follow a different procedure to connect hose cordsets. Go to
Installation Procedures for Externally Circulating Systems at the end
of this section. Return here and go to step 6.
4. Find the hose plug of the first hose you connected to the manifold.
5. See Figure A 1-10. Connect this hose plug to electrical receptacle
number 1 on the unit.
6. If you have additional guns and hoses, continue connecting gun and
hose cordsets. Connect the cordset of the next hose (the hose
closest to the rear of the unit) to the hose electrical receptacle labeled
number 2 on the unit. Continue connecting gun and hose cordsets,
working from the rear of the unit to the front of the unit, until you have
connected all gun and hose cordsets.
4103958A

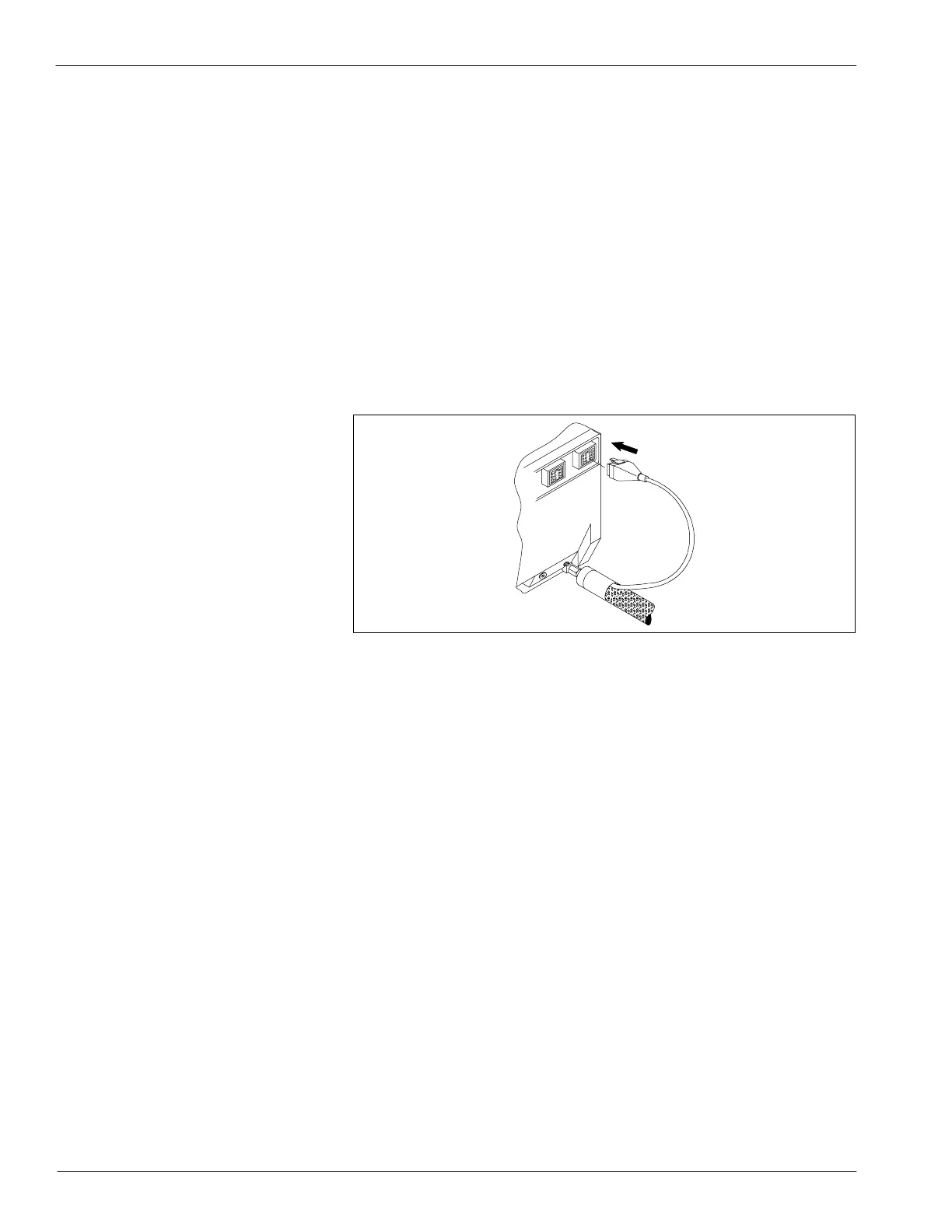

Fig. A 1 -10 Connecting a Hose Cordset to the Unit
Co
ec
gGu
a
o
e
Co
e
(contd.)
