8. See Figure A 1-17. To connect gun solenoid valves, locate terminal
blocks X3P and X4P and make the appropriate connections. Refer to
Table A 1-6.
4130255
1
2
X3P
X4P
1
2

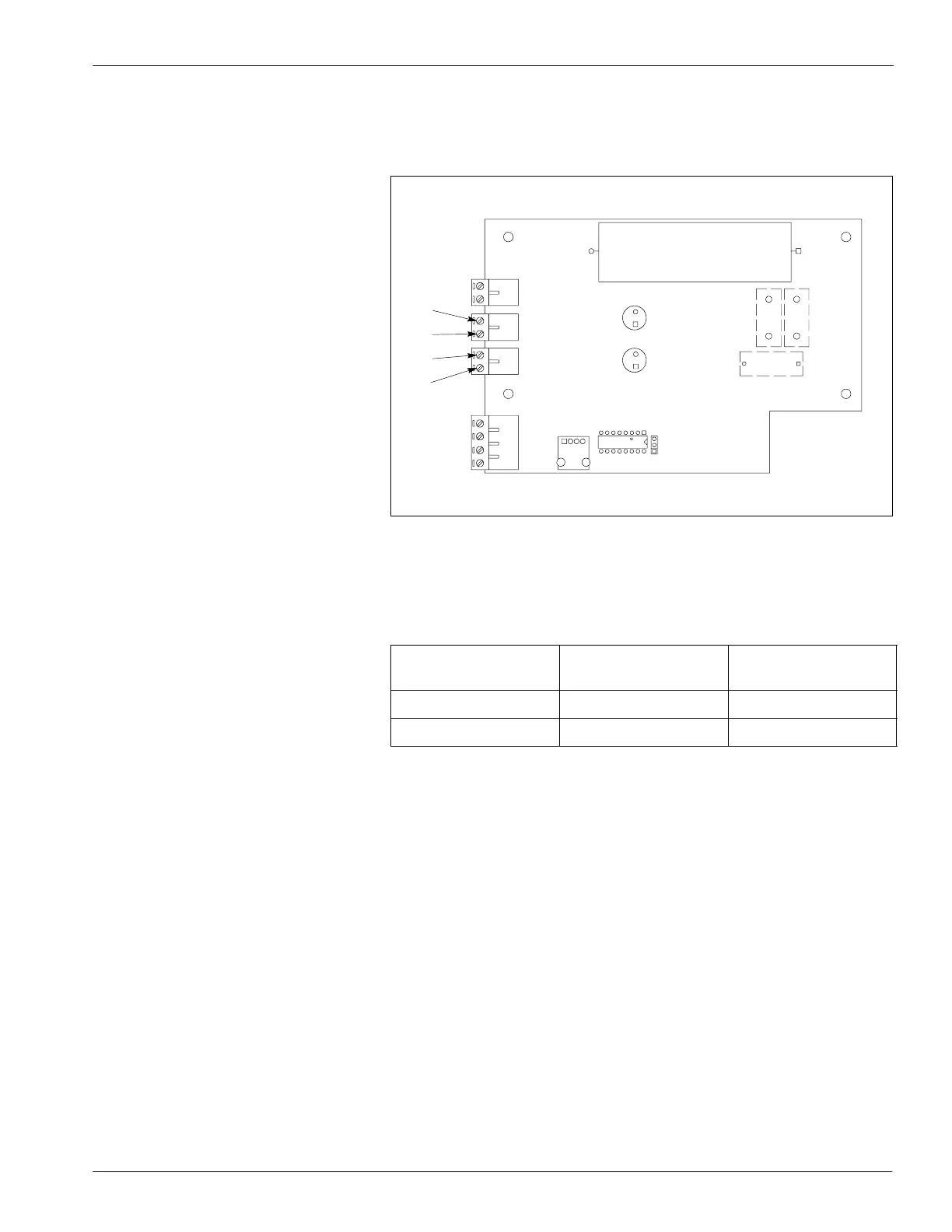

Fig. A 1-17 Terminal Blocks X3P and X4P on the Pattern Control Driver Board
1. Position 1 2. Position 2
Table A 1-6 Connections for Solenoid Valves
Output Channel
Position on Terminal
Block X3P
Position on Terminal
Block X4P
1 1 and 2
2 1 and 2
9. To continue making electrical connections, go to the next procedure,
Connecting Electrical Service.
