Nordson AZO E650 - Configuration 1 - Rotary Sieve 360 - HDLV

8
Part 7580607_01
E 2018 Nordson Corporation
Configuration 1 - Rotary Sieve 360 - H DLV
1
2
3
4
5
5
3
4
3
2
6
3
4
3
3
7
8
9

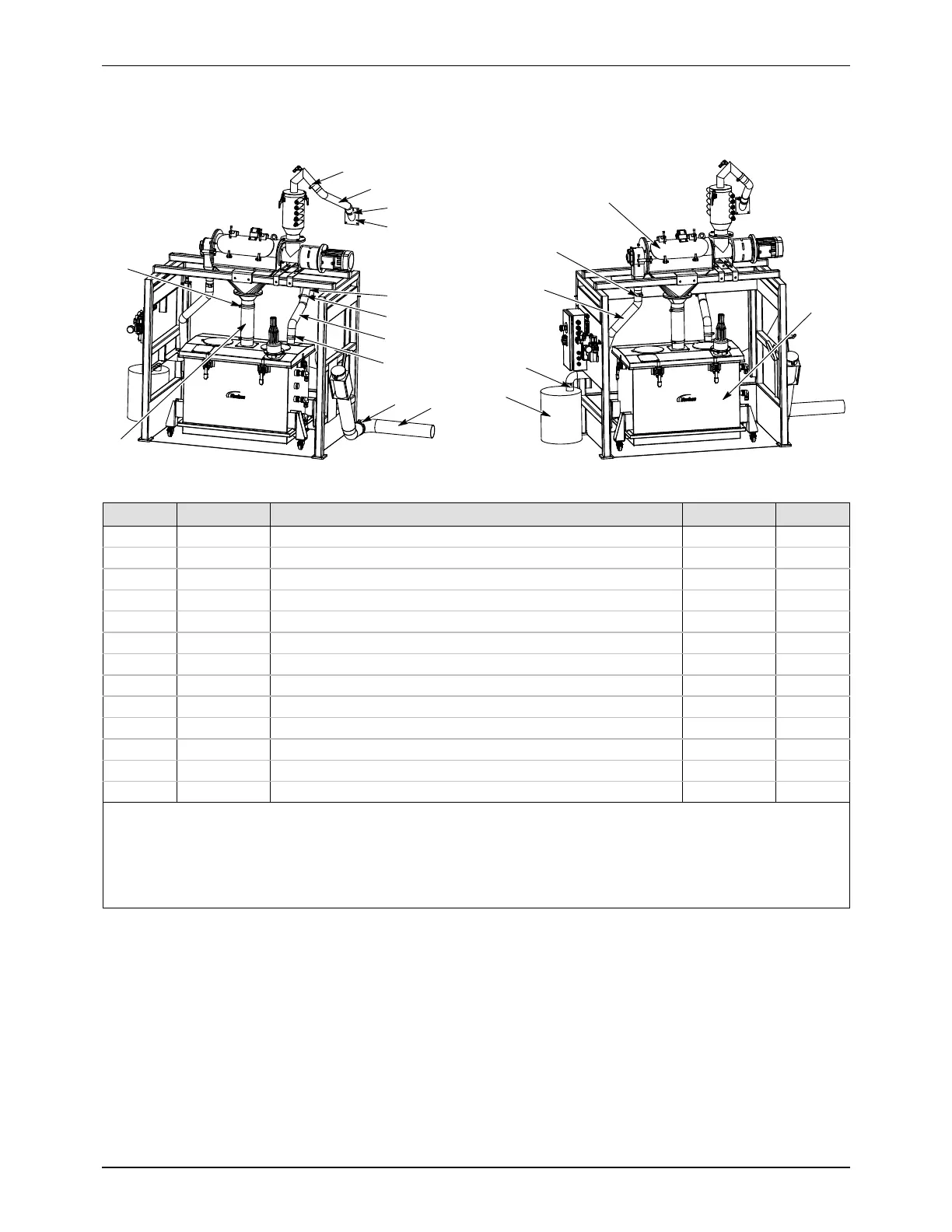

Figure 2 360 Sieve Venting and Parts List - Configuration 1
Item Part Description Quantity Note
-
7035235 ROTARY SIEVE 360 - HDLV - COMPLETE ASSEMBLY
- -
-
7035262 S STAND ASSEMBLY, ROTARY SIEVE 360, HDLV
- -
-
7035256 S KIT, INSTALLATION, HDLV ROTARY SIEVE
- -
1
376999 SS TUBE, RUBBER, 100mm diameter, 2m long
1 A
2
970970 SS CLAMP, HOSE,NO.52
2 A
3
970966 SS CLAMP,HOSE
6 A
4
1008082 SS HOSE,FLEXIBLE,3 METER
1 A- C
5
7033415 SS VENT,45DEG W/BAFFLE 50MM DIA,CYCLONE
2 A
6
243052 SS HOSE,FLEXIBLE,10- FT LENGTH, 3- 1/2” DIA
1 A- C
7
144837 SS BUCKET, SCRAP, SIEVE, 5 GAL
1 A
N/S
7033414 SS VENT, 45DEG W/BAFFLE 90MM DIA, HOPPER
1 A- B
8
7033450 S SIEVE, ROTARY, E360B + PNEUMATIC KIT
1 -
9
7035259 S HOPPER, HDLV
1 -
NOTE A: Included in the installation kit 7035256
B: This is to be fixed to the point at which you will connect the purge clean hose, item 6
C: Cut to desired length
AR: As Required
NS: Not Shown
Note: Care must be taken to ensure there is no sag in the venting hoses as this could allow powder to
collect inside and block the venting flow. Pay attention to the location of the vents (8).
