Description and Parts - Venturi - 150L Powder Feed
Hopper
The Venturi - 150L Powder Feed Hopper is used to hold the virgin and
reclaimed powder when using Nordson Encore powder feed pumps. It
comes fitted with casters and removable lid for easy operator access. Fitted
with level sensors, it automatically monitors the powder level and maintains
the required level of powder.
Powder pumps and pick- up lances must be ordered separately.
7

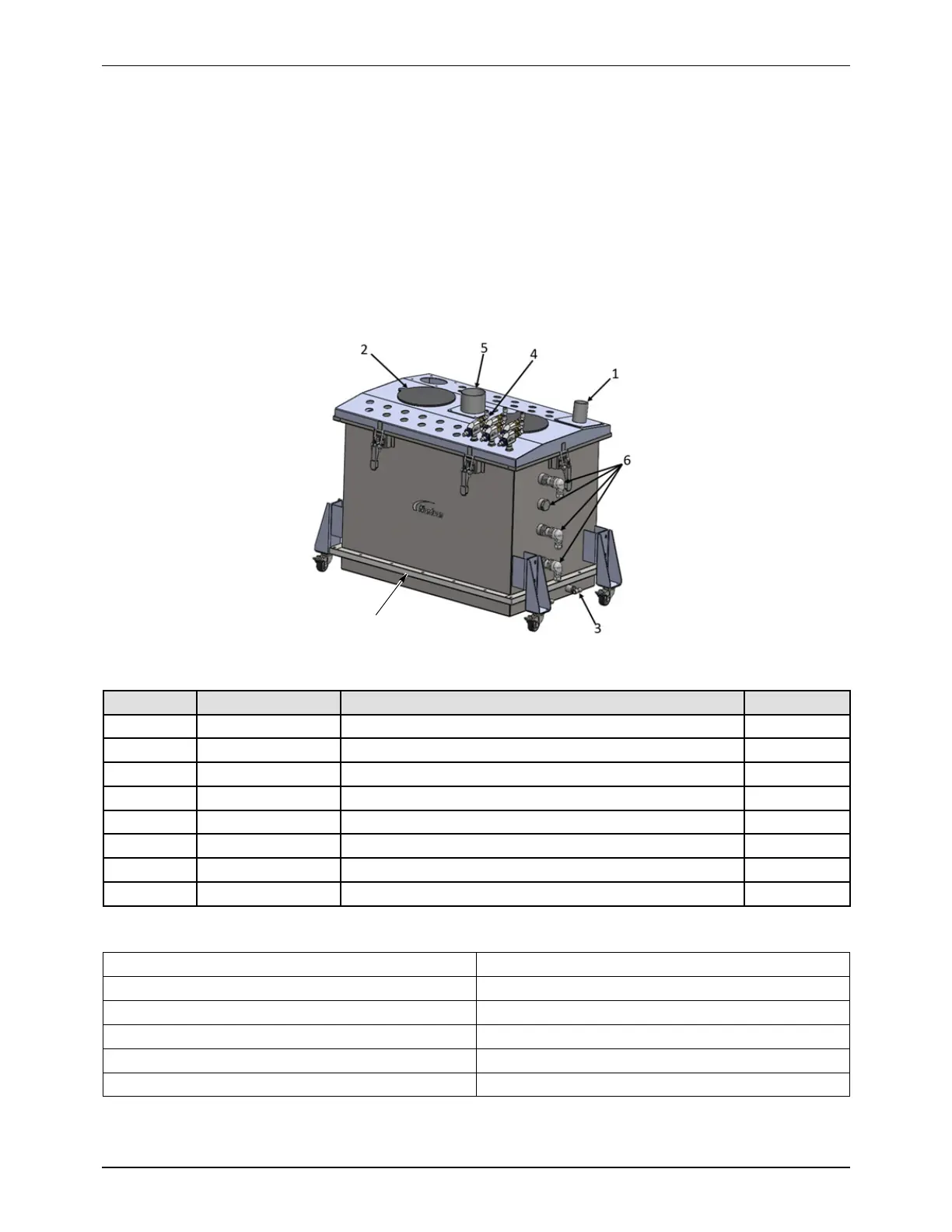

Figure 9 Venturi - 150L Hopper assembly
Item Part Number Description Notes
- 7035260 Hopper, 150L - Venturi
1 - Vent Hose Adaptor
2 1070199 In spection Cover
3 7033472 FLUID BED,HOPPER,150L
4 1095922 PUMP ASSY,CORONA,ENCORE GEN II,PKG
5 - Powder Inlet for Sieve Connection
6 7032221 PROBE,LEVEL SENSOR,24VDC ATEX,PNP,90 DEG
7 7033472 FLUID BED,HOPPER,150L
Venturi - 150L Hopper assembly Specifications
Powder Capacity
150 litre
Venturi Pumps Up to 30 pumps
Dimensions in mm (L x D x H) 1025x600x730 (includes castors and latches)
Capacity 70kg
Fluidising Air Pressure 1.0- 2.7 bar (15- 40 psi)
Fluidising Air Tubing diameter 10 mm (ring main)
