Nordson AZO E650 - Configuration 2 - Rotary Sieve 360 - Venturi

10
Part 7580607_01
E 2018 Nordson Corporation
Configuration 2 - Rotary Sieve 360 - Venturi
1
2
3
4
3
5
5
3
4
3
3
4
3
6
7
8

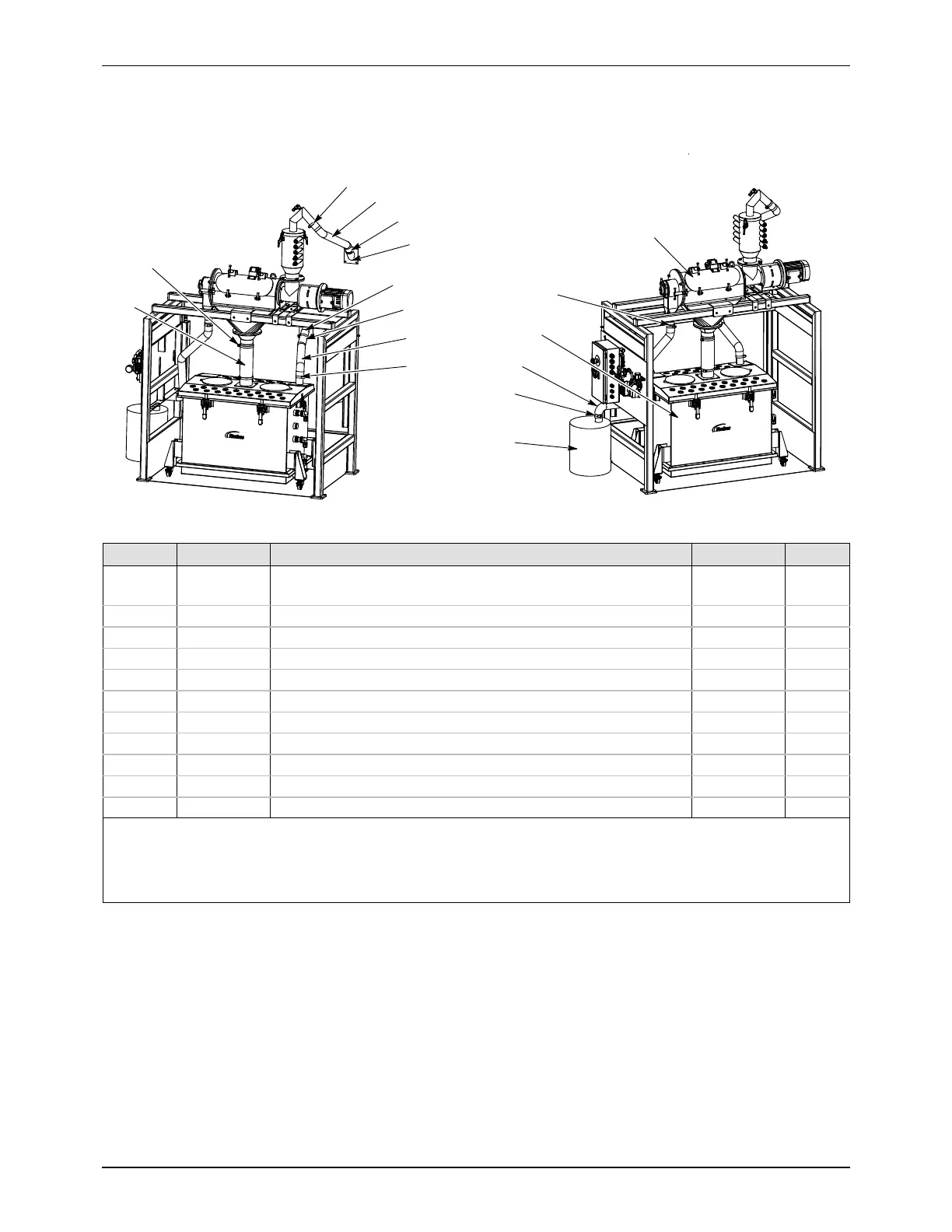

Figure 4 360 Sieve Venting - Configuration 2
Item Part Description Quantity Note
-
7035236 ROTARY SIEVE 360 - VENTURI, ORGANIC -
COMPLETE ASSEMBLY
- -
-
7035263 S STAND ASSEMBLY, ROTARY SIEVE 360, HDLV
- -
-
7035257 S KIT, INSTALLATION, VENTURI ROTARY SIEVE
- -
1
376999 SS TUBE, RUBBER, 100mm diameter, 2m long
1 A
2
970970 SS CLAMP, HOSE,NO.52
2 A
3
970966 SS CLAMP,HOSE
6 A
4
1008082 SS HOSE,FLEXIBLE,3 METER
1 A- B
5
7033415 SS VENT,45DEG W/BAFFLE 50MM DIA,CYCLONE
2 A
6
144837 SS BUCKET, SCRAP, SIEVE, 5 GAL
1 A
7
7035260 S HOPPER, VENTURI
1 -
8
7033450 S SIEVE, ROTARY, E360B + PNEUMATIC KIT
1 -
NOTE A: Included in the installation kit 7035257
B: Cut to desired length
AR: As Required
NS: Not Shown
Note: Care must be taken to ensure there is no sag in the venting hoses as this could allow powder to
collect inside and block the venting flow. Pay attention to the location of the vents (5).
