Configuration 3 - Rotary Sieve 360 - Venturi, PE
2
2
2
4
3
1
7
8
6
3
3
5
9
10

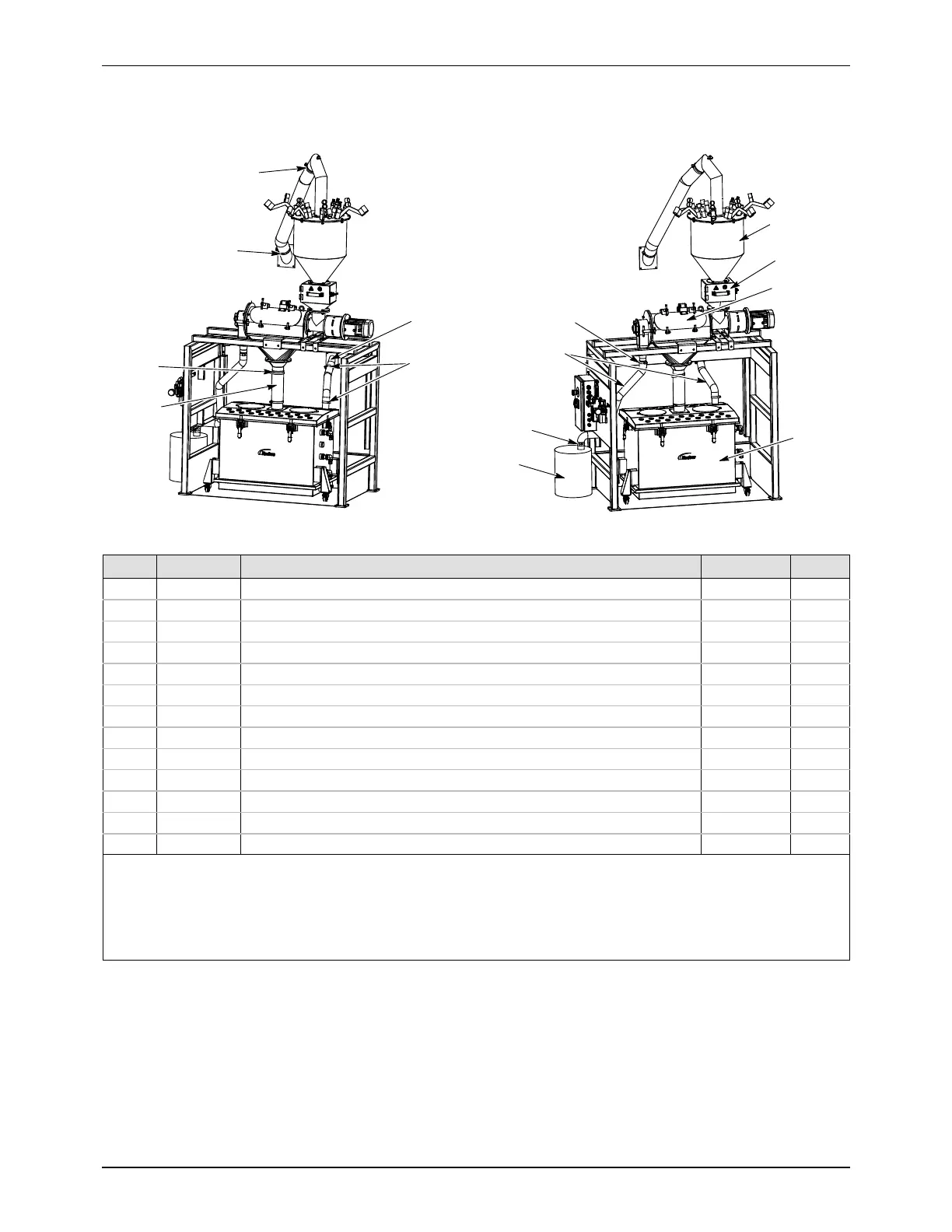

Figure 6 360 Sieve Venting and Parts List - Configuration 3
Item Part Description Quantity Note
-
- ROTARY SIEVE 360 - VENTURI, PE COMPLETE ASSEMBLY
- -
-
7035263 S STAND ASSEMBLY, ROTARY SIEVE 360, HDLV
- -
-
7035257 S KIT, INSTALLATION, VENTURI ROTARY SIEVE
- -
1
376999 SS TUBE, RUBBER, 100mm diameter, 2m long
1 A- B
2
970970 SS CLAMP,HOSE,NO.52
3 A
3
970966 SS CLAMP,HOSE
4 A
4
1008082 SS HOSE,FLEXIBLE,3 METER
1 A- B
5
7033415 SS VENT,45DEG W/BAFFLE 50MM DIA,CYCLONE
1 A
6
144837 SS BUCKET, SCRAP, SIEVE, 5 GAL
1 A
7
7035260 S HOPPER, VENTURI
1 -
8
7033450 S SIEVE, ROTARY, E360B + PNEUMATIC KIT
1 -
9
7033471 S SEPERATOR,MAGNETIC,SIEVE,E360B
1 C
10
7033470 S ACCUMULATOR,MINI,SIEVE,E360B,W/4 HOSE BR
1 -
NOTE A: Included in the installation kit 7035257
B: Cut to desired length
C: Order magnets separately - see figure 11
AR: As Required
NS: Not Shown
Note: Care must be taken to ensure there is no sag in the venting hoses as this could allow powder to
collect inside and block the venting flow. Pay attention to the location of the vents (2 & 7).
