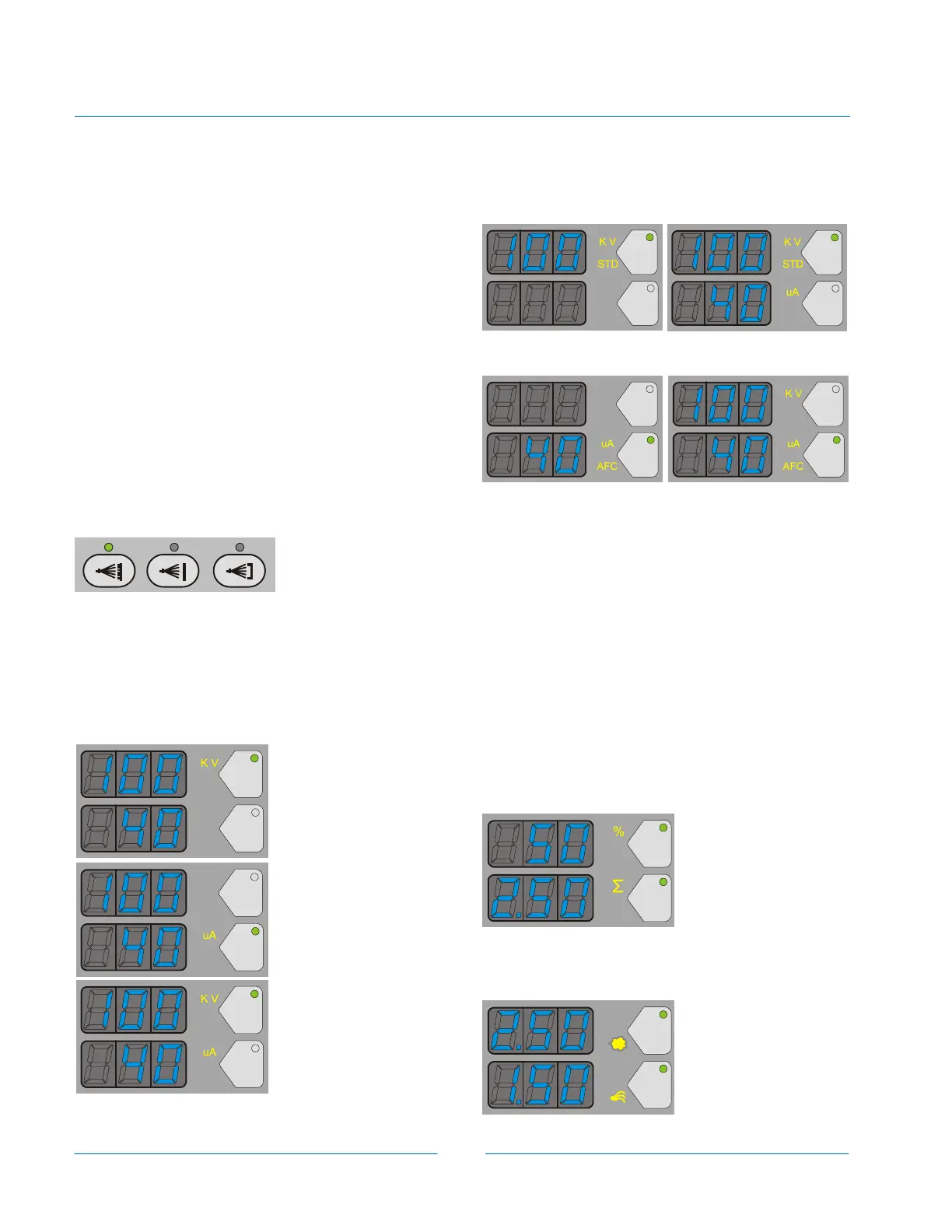

Preset Settings
Presets are sets of electrostatic and powder flow
setpoints. The controller can store setpoints for 20
presets. To set up a preset, select the preset
number, then set the desired setpoint values.
NOTE: When the spray gun is triggered ON you
cannot change presets with the settings trigger or the
preset button on the interface. You must release the
trigger first.
Electrostatic Settings
Electrostatic output for each preset is set using one
of three modes: Select Charge, Custom, or Classic.
Refer to Controller Configuration on page 4 to select
Custom or Classic mode.
Select Charge Mode
Select Charge modes are not adjustable.
Mode 1 Re-Coat 100 kV, 15 µA
Mode 2 Metallics 50 kV, 50 µA
Mode 3 Deep Recesses 100 kV, 60 µA
Mode 1 Mode 2 Mode 3
Custom Mode
Custom mode is the default mode. In this mode, the
STD and AFC icons do not light. kV output and µA
output limit can be set independently. The default µA
range is 10-50 µA.
Setting kV
Setting mA
Spraying
Classic Mode
In Classic mode, the STD or AFC icon will be lit,
depending on which is selected. Select STD to set
kV output, or AFC to set the µA output limit.
Setting kV
Spraying
Setting mA Spraying
Powder Flow Settings
Two modes of powder flow control are available:
Smart Flow - This is the default mode. % of Flow
Air (pump nozzle air) and Total Air Flow are
adjusted separately. The controller automatically
adjusts the atomizing air flow according to the % of
Flow Air setting. The Total Air flow setting is in SCFM
or M
3
/HR.
NOTE: The Total Air Flow setting must be greater
than zero to set % of Flow Air, and no powder will
be pumped to the gun unless Total Air Flow >0.
% of Flow Air
Total Air Flow
Classic Flow - Flow air and atomizing air flow are
adjusted separately. Settings are in SCFM or M
3
/HR.
Flow Air Flow
Atomizing Air Flow
