4

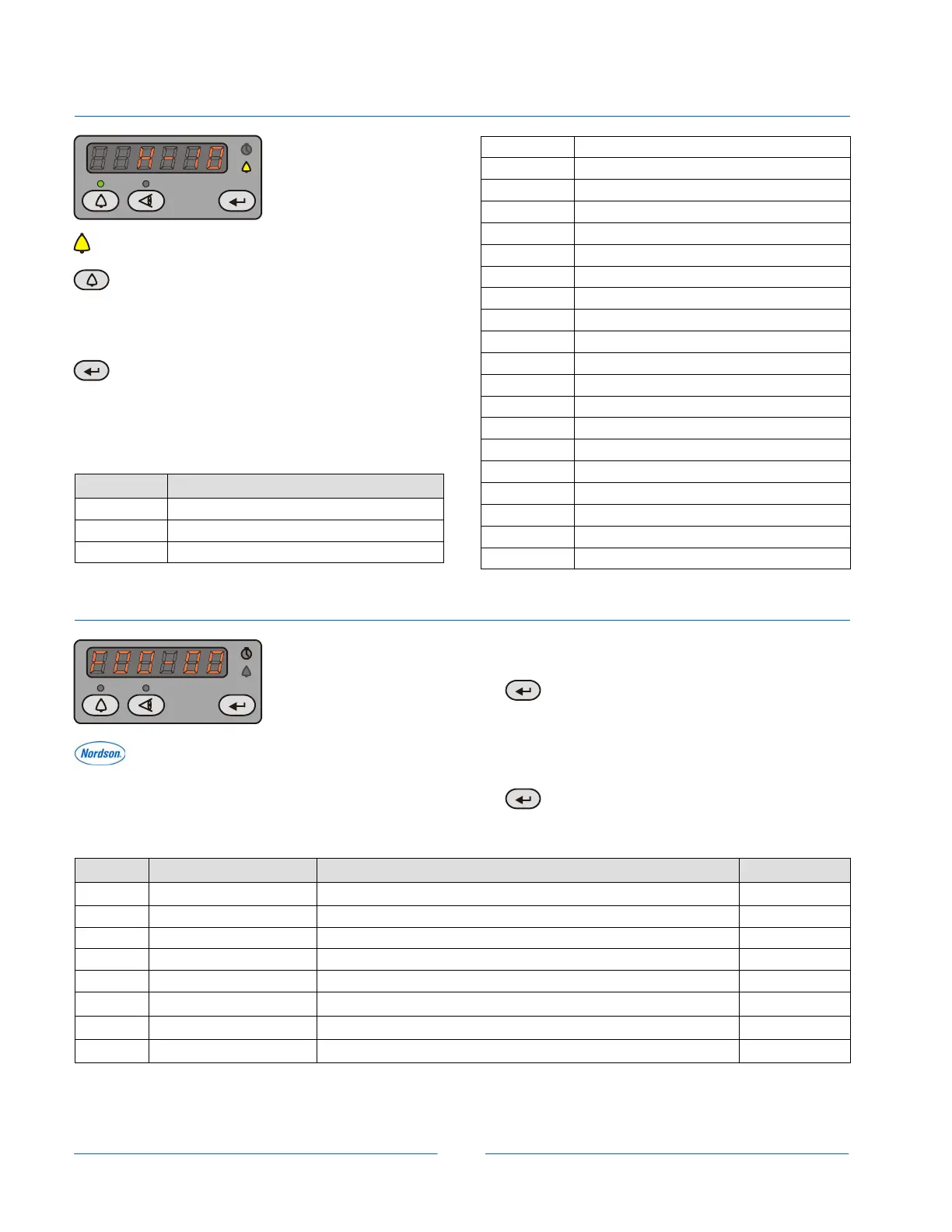

Help Codes
The Help icon lights if a problem occurs.
Press the Help button to display the Help
codes. The last 5 codes are retained in memory.
Rotate the knob to scroll through the codes. The
display blanks if there is no activity for 5 seconds.
To clear the codes, press the Help button, then
scroll through the codes until CLr is displayed, then
press the Enter button.
Refer to your Encore system manual for
troubleshooting procedures using these codes.
Code Message
H07 Gun Open
H10 Gun Output Stuck Low
H11 Gun Output Stuck High
H12 Comm Fault CAN Bus
H15 Over-Current Fault (Cable or Gun Short)
H19 Maintenance Timer Expired
H21 Atomizing Air Valve Fault
H22 Flow Air Valve Fault
H23 Flow Air Flow Low
H24 Atomizing Air Flow Low
H25 Flow Air Flow High
H26 Atomizing Air Flow High
H27 Trigger On During Power Up
H28 EEPROM data version changed
H31 Boost Valve Fault
H32 Gun Air Valve Fault
H33 Fluidizing Air Valve Fault
H34 Purge Air Valve Fault
H35 Vibratory Motor Relay Fault
H36 Comm Fault LIN Bus
H41 24V Fault
H42 Power Supply Fault
H43 µA Feedback Fault
Controller Configuration - Function Codes
Press the Function button for 5 seconds to
display Function codes. Refer to your Encore system
manual for additional configuration codes.
F00: Function Code - 00: Code Value
1. Use the rotary knob to scroll through the Function
codes.
2.
Press the Enter key to select a Function
Code and change the focus to the code value.
The code value starts blinking.
3. Use the rotary knob to scroll through the code
values.
4.
Press the Enter key to save the displayed
code value and return the focus to the function
codes.
Code Function Values Default
F02
Display Units
00=SCFM, 01=M
3
/HR 00
F03 Electrostatic Control 00=Custom, 01=Classic (STD, AFC) 00
F04 Powder Flow Control 00=Smart, 01=Classic 00
F06 Vibratory Box Delay Off on, 00-90 seconds (on=continuous) 30
F07 Maintenance Timer 00=Disable, 00-999 hours 00
F15
Save/Restore/Reset 00=System Save, 01=System Restore, 02=Factory Reset
00
F16
Gun Display Brightness 00=Low, 01=Medium, 02=High
01
F17
Number of Presets 01-20 (select number available on interface and gun)
20
Issued 4/09
Original copyright date 2008. Encore, Select Charge, Nordson, and the Nordson logo are registered trademarks of Nordson Corporation.
