Nordyne E2 Series User Manual

17
Optional
Single Circuit
Adaptor Kit
Circuit Breaker
Bracket
60A
60A
ONON
OFF
OFF
Circuit
Breaker
Wire
Assemblies
(Factory
Installed)
Supply Service
Wire Connection
With Single Circuit
Adaptor Kit
4. Insert supply service wire(s) through cable
connector(s) and connect wires to circuit
breakers (Figures 18 and 19).
NOTE: To install single-circuit kit, perform
step 5. If single-circuit kit installation is not
necessary, go to step 6.
5. To install single-circuit kit:
a. Loosen lugs at supply side of circuit
breakers.
b. Remove cover from single-circuit kit (if
supplied).
c. Insert metal buss bars of kit into lugs of
circuit breaker.
d. Tighten lugs securely (45 in.-lbs.
recommended).
6. Connect service ground wire(s) to ground-
ing lug(s) provided. One ground is required
for each supply circuit used.

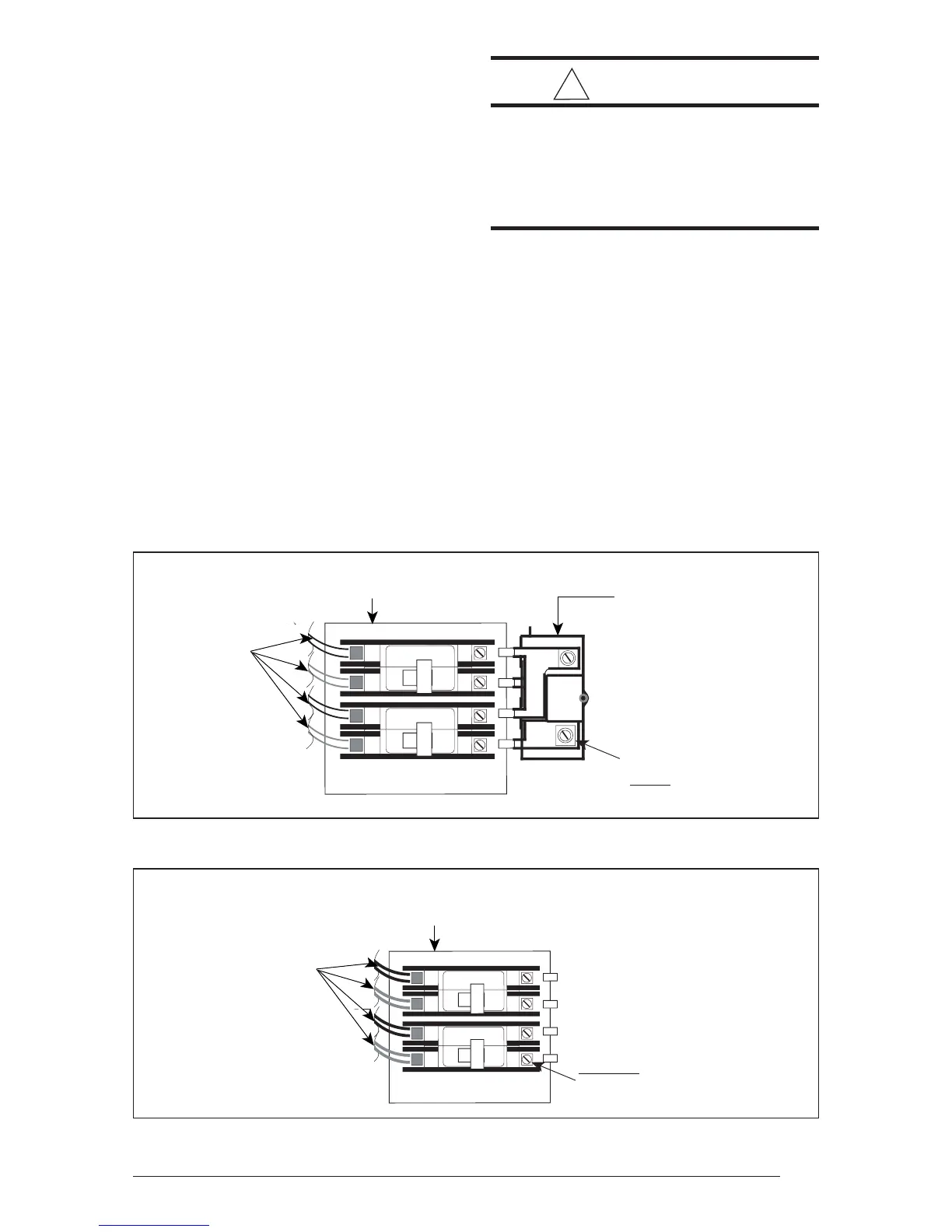

Figure 18. Installation of Optional Single Circuit Adaptor Kit
Figure 19. Installation of Supply Service Wires
!
WARNING:
To avoid personal injury or property
damage, make certain that the motor
leads cannot come into contact with
non-insulated metal components of the
unit.
Selecting Blower Speed
See Table 5 for the lowest speed approved for
the heating output of the unit. Since the blower
leads connect to the control box, blower speed
selection is accomplished through use of the
proper color-coded blower lead located inside
the control box. The speed(s) set by the factory
may be different from that shown on the wiring
diagrams. See the unit control box for blower
speed(s) set at factory.
60A
60A
ONON
OFF OFF
Circuit
Breaker
Wire
Assemblies
(Factory
Installed)
Supply Service
Wire Connection
Without Single
Circuit Adaptor Kit
Circuit Breaker
Bracket
