Nordyne JT5BD Series User Manual

14

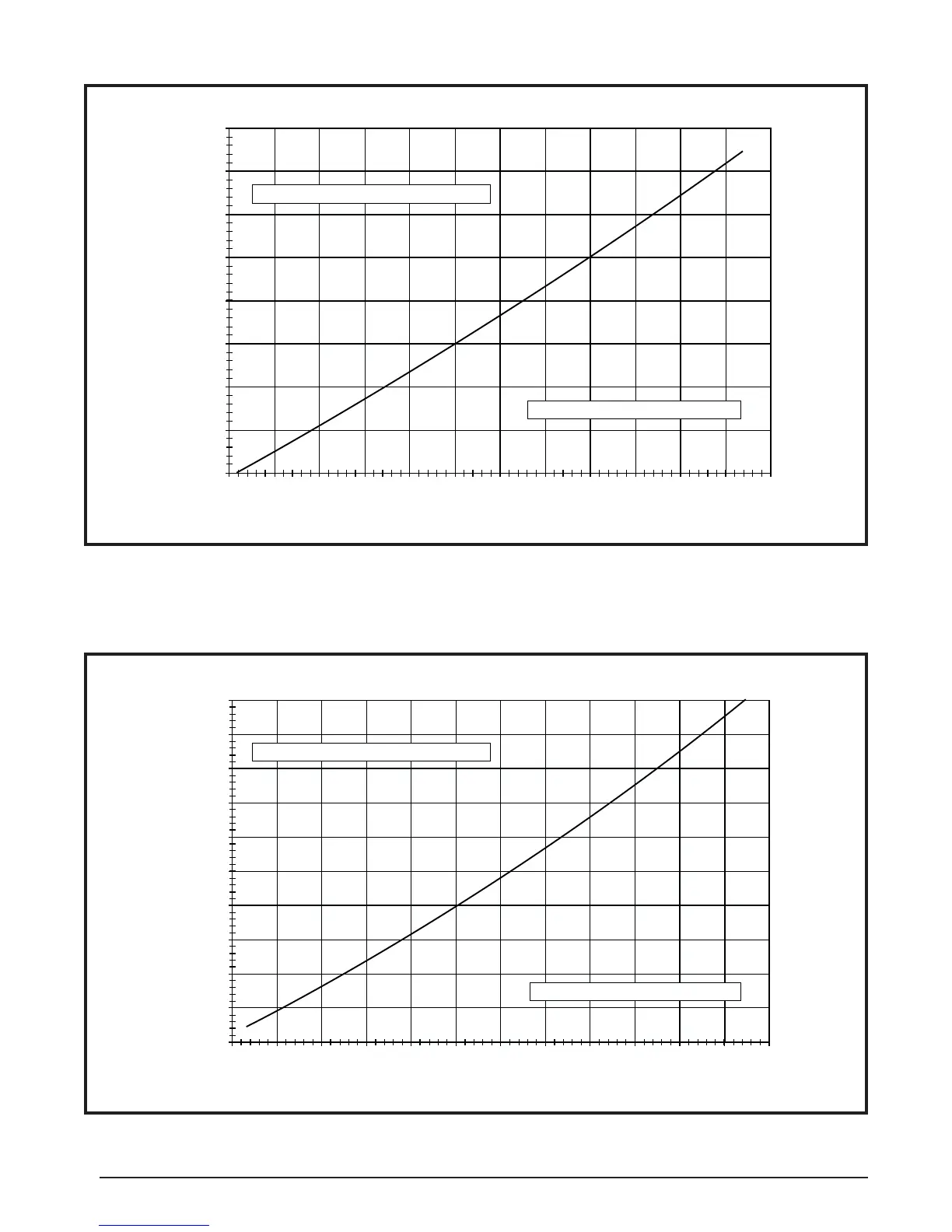

Figure 11. Charging Chart for 4 Ton Units
150
175
200
225
250
275
300
325
350
75 80 85 90 95 100 105 110 115 120 125 130 135
Liquid Temperature (F)
Liquid Pressure (psig)
Add refrigerant when below curve
Remove refrigerant when above curve
JT5BD-048K Charging Chart
Figure 12. Charging Chart for 5 Ton Units
150
170
190
210
230
250
270
290
310
330
350
75 80 85 90 95 100 105 110 115 120 125 130 135
Liquid Temperature (F)
Liquid Temperature (psig)
Add refrigerant when below curve
Remove refrigerant when above curve
JT5BD-060K Charging Chart
