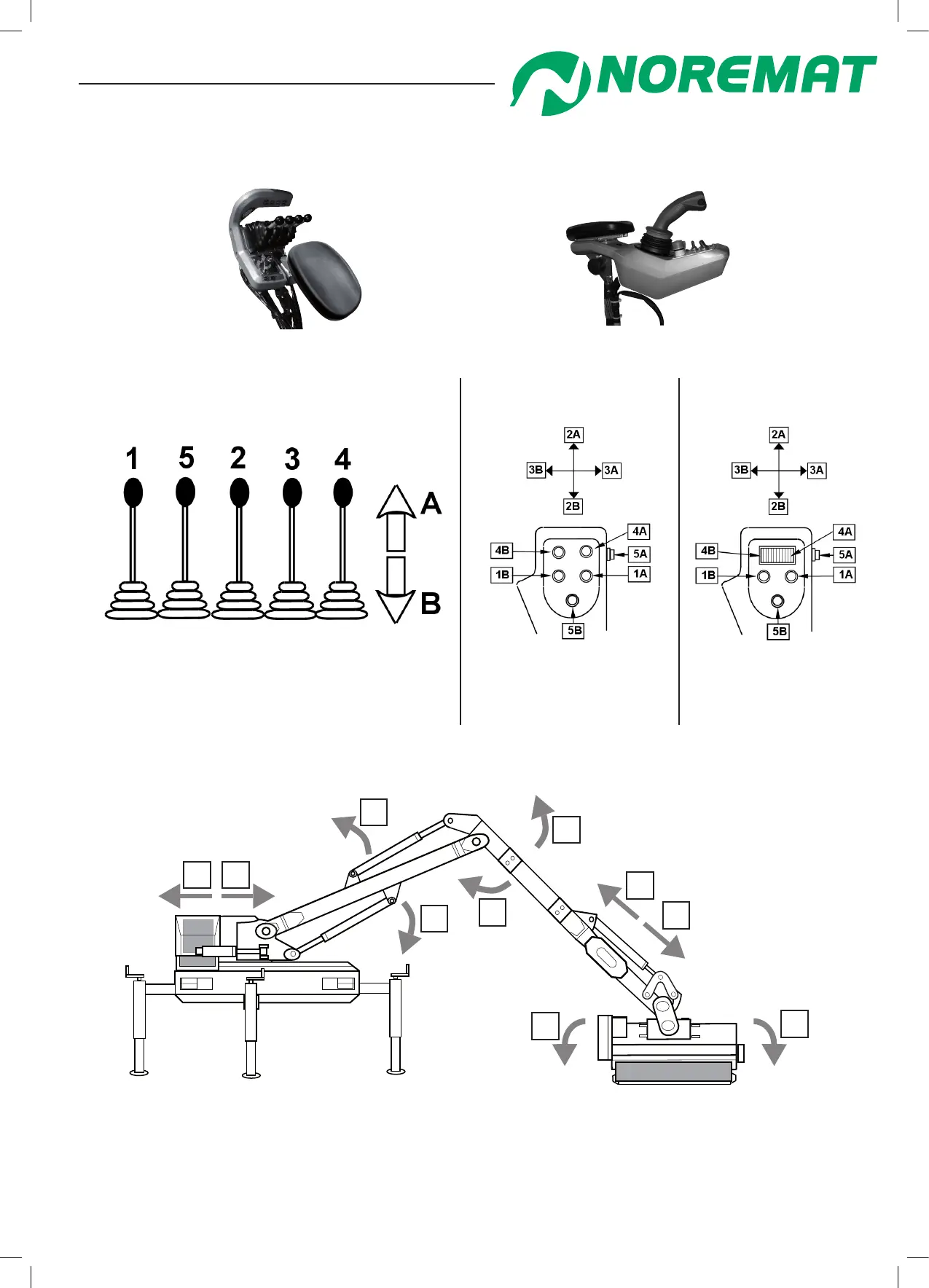

2. Identication of movements
gure 2.10
Electric Controls*
MONO-LEVER
gure 2.09
Electric controls
Mixed controls
MONO-LEVER
gure 2.08
Low-pressure controls
MULTI-LEVER
gure 2.11
3B
3A
4A
4B
2B
2A
1B1A
5B
5A
Telescopic arm M57T
*option : thumbwheel for machines with proportional movement of cutting head.( 4A 4B).
